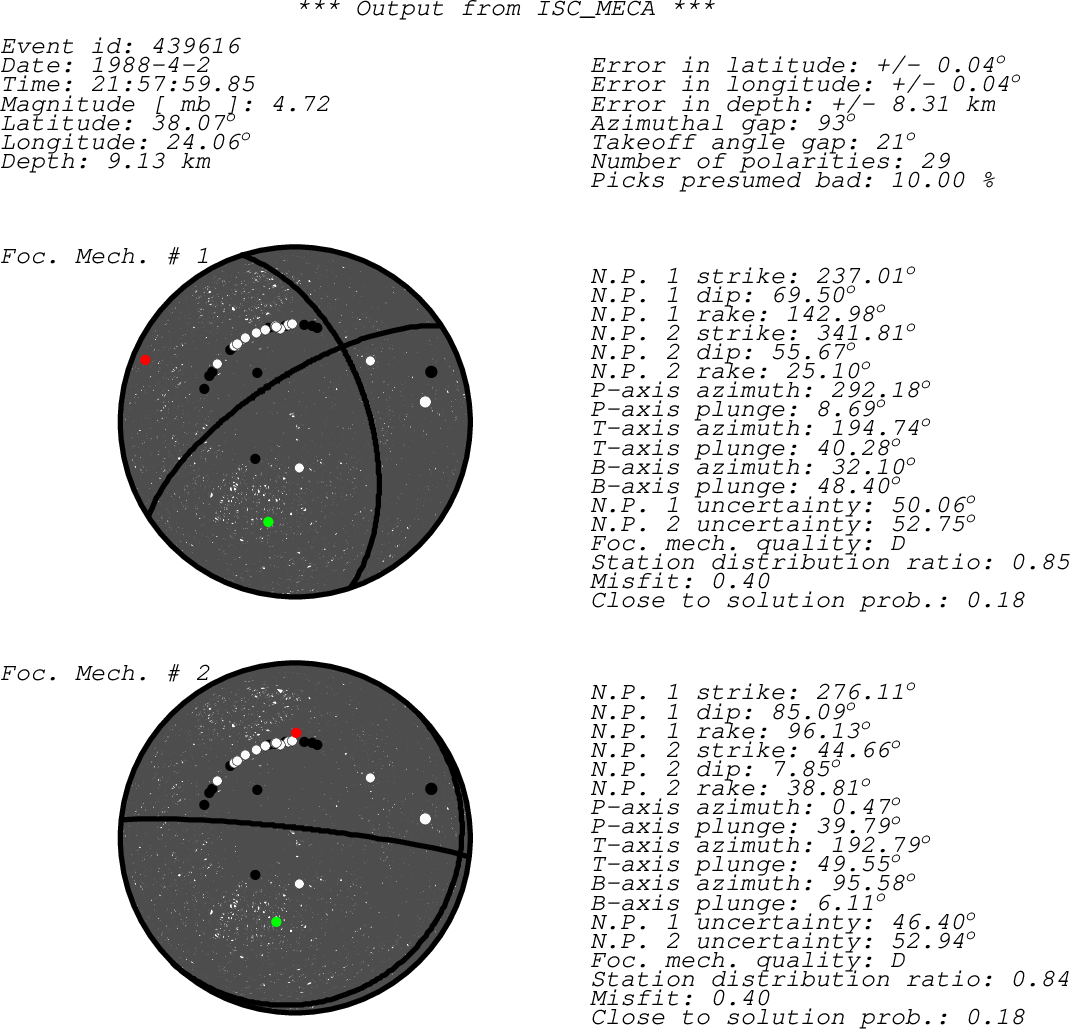

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta PTL ??? IR D 261.58 0.16 ISC PTL ATH ??? IR + 249.99 0.29 ISC ATH APE ??? IR D 130.18 1.54 ISC APE PAIG ??? IR - 351.00 1.88 ISC PAIG OUR ??? IR - 358.46 2.26 ISC OUR PLG ??? IR D 348.44 2.35 ISC PLG LIT ??? IR - 329.37 2.37 ISC LIT THE ??? IR - 341.95 2.69 ISC THE SOH ??? IR - 348.94 2.80 ISC SOH KZN ??? IR - 322.14 2.85 ISC KZN GRG ??? IR - 336.50 3.15 ISC GRG KNT ??? IR + 344.13 3.21 ISC KNT MMB ??? IR - 355.92 3.52 ISC MMB SRN ??? IR + 300.96 3.64 ISC SRN EDC ??? IR - 51.25 3.73 ISC EDC TPE ??? IR - 306.45 3.85 ISC TPE OHR ??? IR - 321.31 3.94 ISC OHR PHP ??? IR - 323.47 4.56 ISC PHP LACI ??? IR + 318.11 4.89 ISC LACI LCI ??? IR c 297.90 5.14 ISC LCI MGR ??? IR c 289.95 6.93 ISC MGR CMP ??? IR + 5.49 7.23 ISC CMP MLR ??? IR + 10.14 7.54 ISC MLR BZS ??? IR + 347.18 7.76 ISC BZS DEV ??? IR + 354.07 7.85 ISC DEV VRI ??? IR + 13.45 8.04 ISC VRI KBA ??? IR - 322.19 11.96 ISC KBA EKA ??? IR + 322.10 25.18 ISC EKA LIC ??? IR + 227.14 41.25 ISC LIC BUL ??? IR d 174.96 58.06 ISC BUL sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
