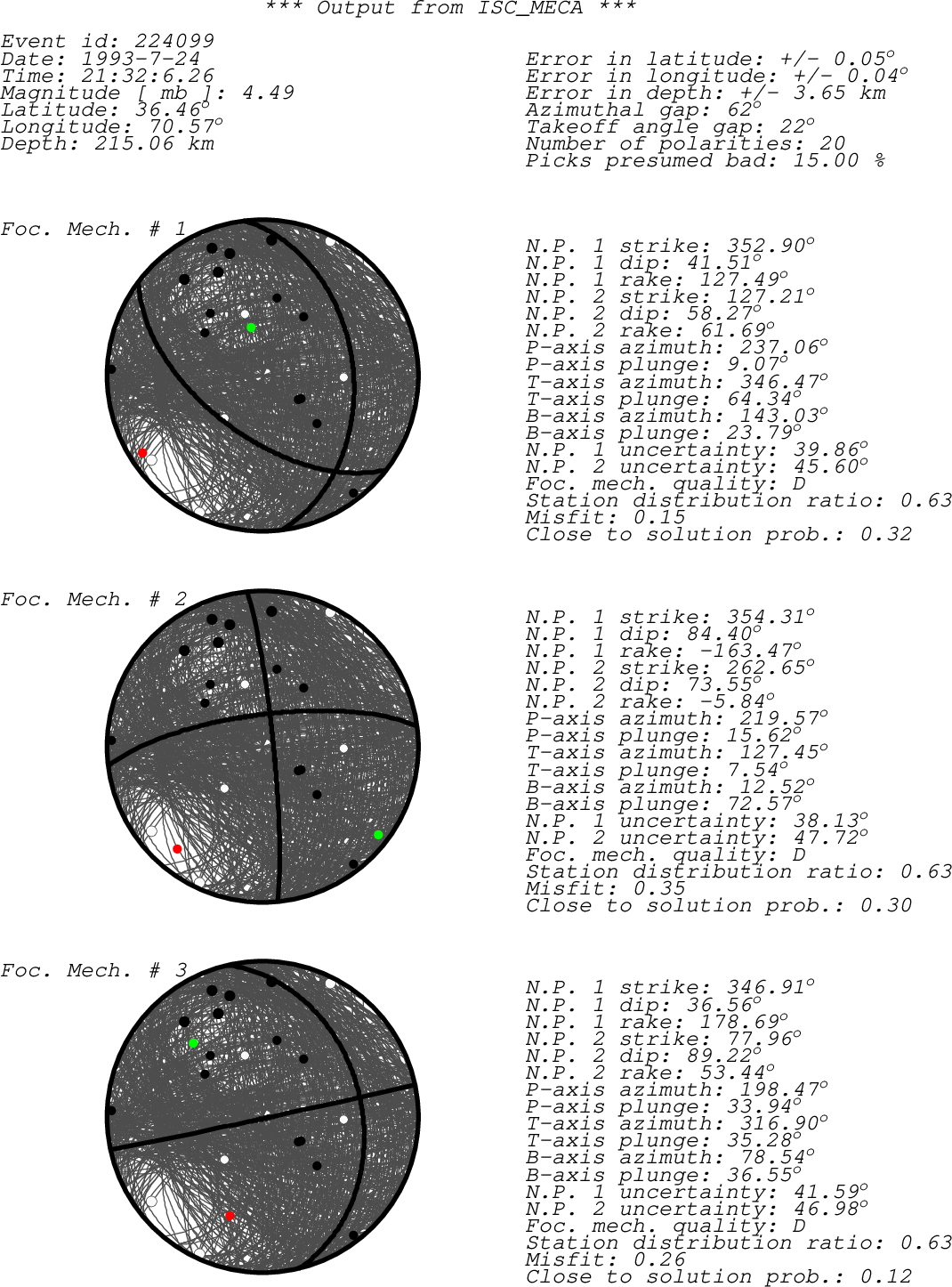

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta CEP ??? IR + 156.95 2.85 ISC CEP CHCP ??? IR + 140.86 3.56 ISC CHCP THW ??? IR + 164.85 3.78 ISC THW DRP ??? IR + 183.82 4.71 ISC DRP SARP ??? IR + 158.35 4.85 ISC SARP KSH ??? IR - 52.77 5.25 ISC KSH QUE ??? IR - 206.88 6.95 ISC QUE FRU ??? IR - 24.86 7.09 ISC FRU FRU SPZ IR D 24.86 7.09 MOS FRU MAIO ??? IR + 272.35 8.95 ISC MAIO NDI ??? IR + 142.26 9.56 ISC NDI CD2 ??? IR - 91.64 28.08 ISC CD2 OBN ??? IR + 319.64 29.75 ISC OBN OBN SPZ IR C 319.64 29.75 MOS OBN NRI ??? IR + 10.85 34.39 ISC NRI NRI SPZ IR C 10.85 34.39 MOS NRI IPM ??? IR + 131.43 42.37 ISC IPM YAK ??? IR + 35.47 44.20 ISC YAK YAK SPZ IR C 35.47 44.20 MOS YAK GRF ??? IR + 306.75 44.21 ISC GRF DAG ??? IR - 343.61 54.67 ISC DAG MTD ??? IR d 221.90 64.50 ISC MTD WB2 ??? IR + 121.60 82.27 ISC WB2 ASPA ??? IR + 124.60 84.51 ISC ASPA ASPA SPZ IR C 124.60 84.51 MOS ASPA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
