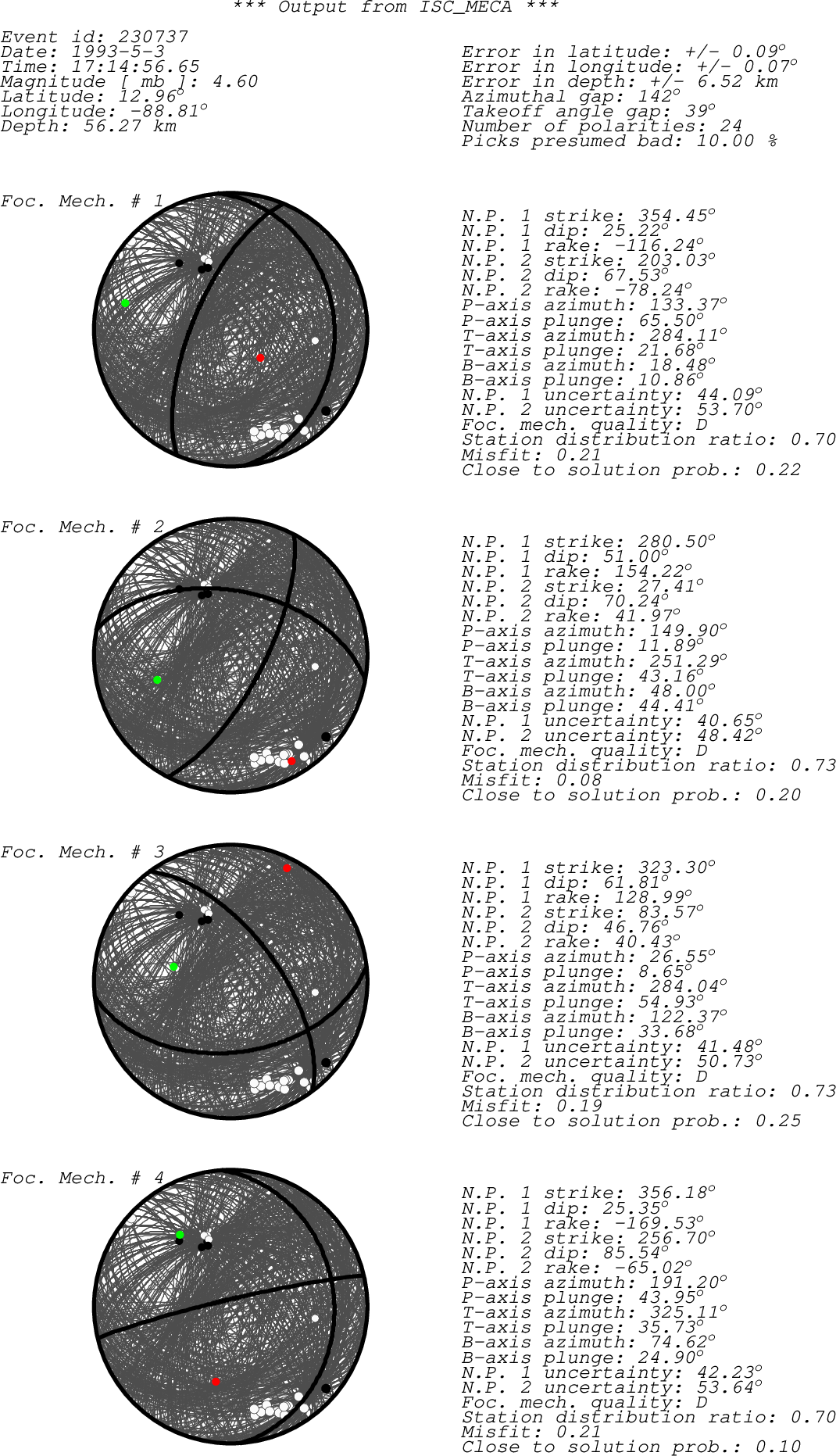

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta LFRS ??Z IR - 339.80 0.71 ISC LFRS LCBS ??Z IR - 346.81 0.71 ISC LCBS LBRS ??Z IR - 343.79 0.81 ISC LBRS HUES ??Z IR - 347.32 0.84 ISC HUES LFU ??Z IR - 339.50 0.84 ISC LFU ADES ??Z IR - 322.66 0.88 ISC ADES VSS ??Z IR - 331.79 0.89 ISC VSS PICS ??Z IR - 330.99 0.89 ISC PICS ANGS ??Z IR - 336.19 0.92 ISC ANGS GRDS ??Z IR - 329.62 0.92 ISC GRDS OJOS ??Z IR - 335.35 0.99 ISC OJOS TME ??Z IR - 333.36 1.18 ISC TME YPE ??Z IR - 323.95 1.43 ISC YPE CUSS ??Z IR + 310.69 1.46 ISC CUSS VCR ??Z IR - 131.75 4.20 ISC VCR JCR ??Z IR - 130.03 4.76 ISC JCR TOV ??? IR + 97.60 18.91 ISC TOV LTX ??? IR + 322.06 21.35 ISC LTX MEO ??? IR - 339.46 23.47 ISC MEO FNO ??? IR - 342.17 23.52 ISC FNO OCO ??? IR - 342.27 23.79 ISC OCO ACO ??? IR + 340.35 25.40 ISC ACO GOL ??? IR + 334.23 30.38 ISC GOL RSSD ??? IR + 340.07 33.69 ISC RSSD SIV ??? IR + 135.56 39.75 ISC SIV sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
