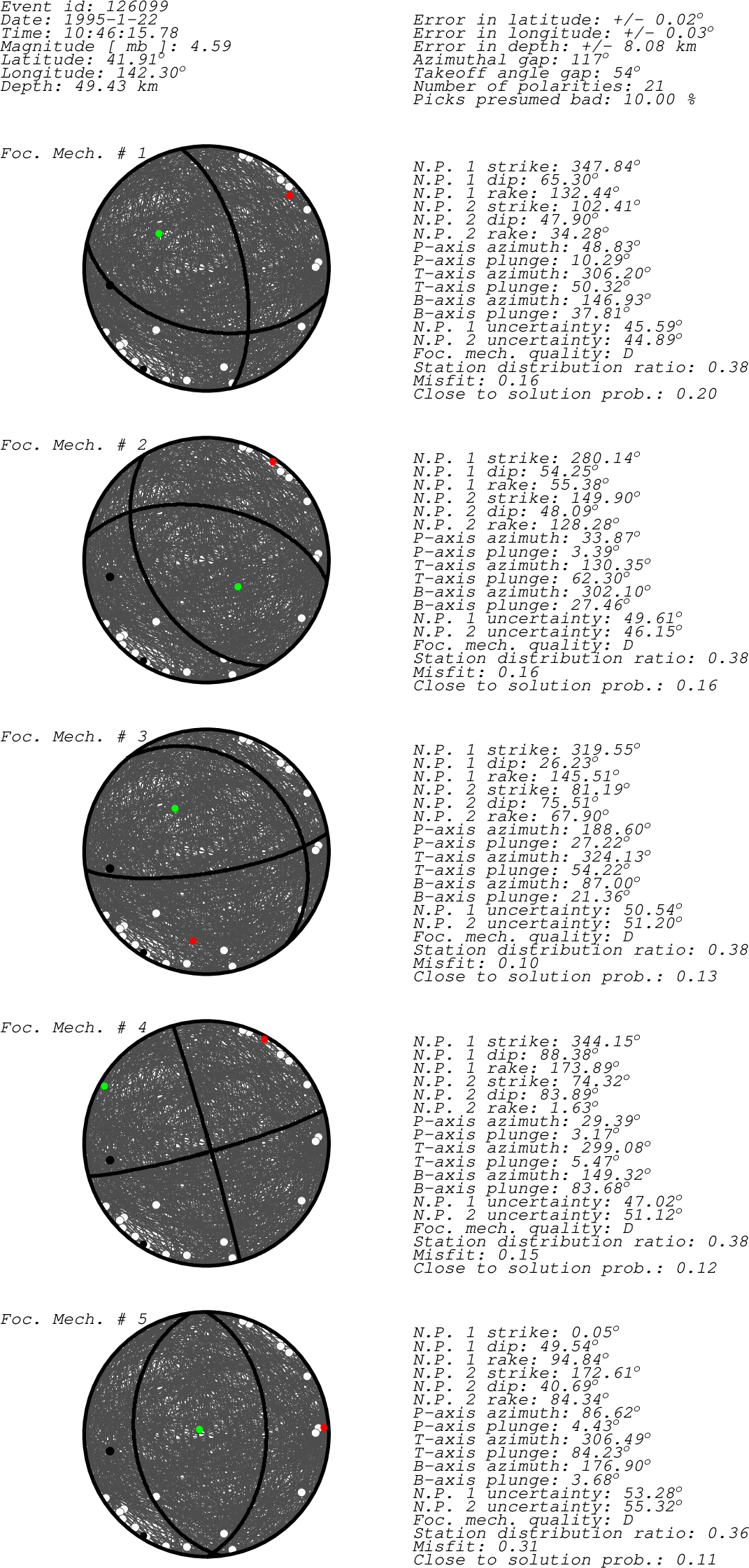

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta URA3 ??? IR d 39.04 0.43 ISC URA3 JEM ??? IR c 80.08 0.65 ISC JEM JBT ??? IR d 349.77 0.69 ISC JBT JKB ??? IR d 269.23 0.95 ISC JKB JCH ??? IR d 47.77 1.06 ISC JCH JNB ??? IR d 301.30 1.09 ISC JNB HAKJ ??? IR d 266.79 1.14 ISC HAKJ JFR ??? IR d 9.69 1.27 ISC JFR JTM ??? IR d 220.06 1.45 ISC JTM JOB ??? IR d 48.27 1.51 ISC JOB AOM3 ??? IR d 225.17 1.59 ISC AOM3 JSI ??? IR d 239.85 1.67 ISC JSI JAR ??? IR d 37.50 1.76 ISC JAR JHR ??? IR d 347.20 1.88 ISC JHR JKZ ??? IR d 201.26 2.06 ISC JKZ JAK ??? IR d 57.66 2.08 ISC JAK JMP ??? IR d 19.97 2.24 ISC JMP ABJ2 ??? IR d 30.30 2.25 ISC ABJ2 JOM ??? IR d 197.82 2.55 ISC JOM JRA ??? IR d 44.65 2.90 ISC JRA MAT ??? IR + 212.00 6.23 ISC MAT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
