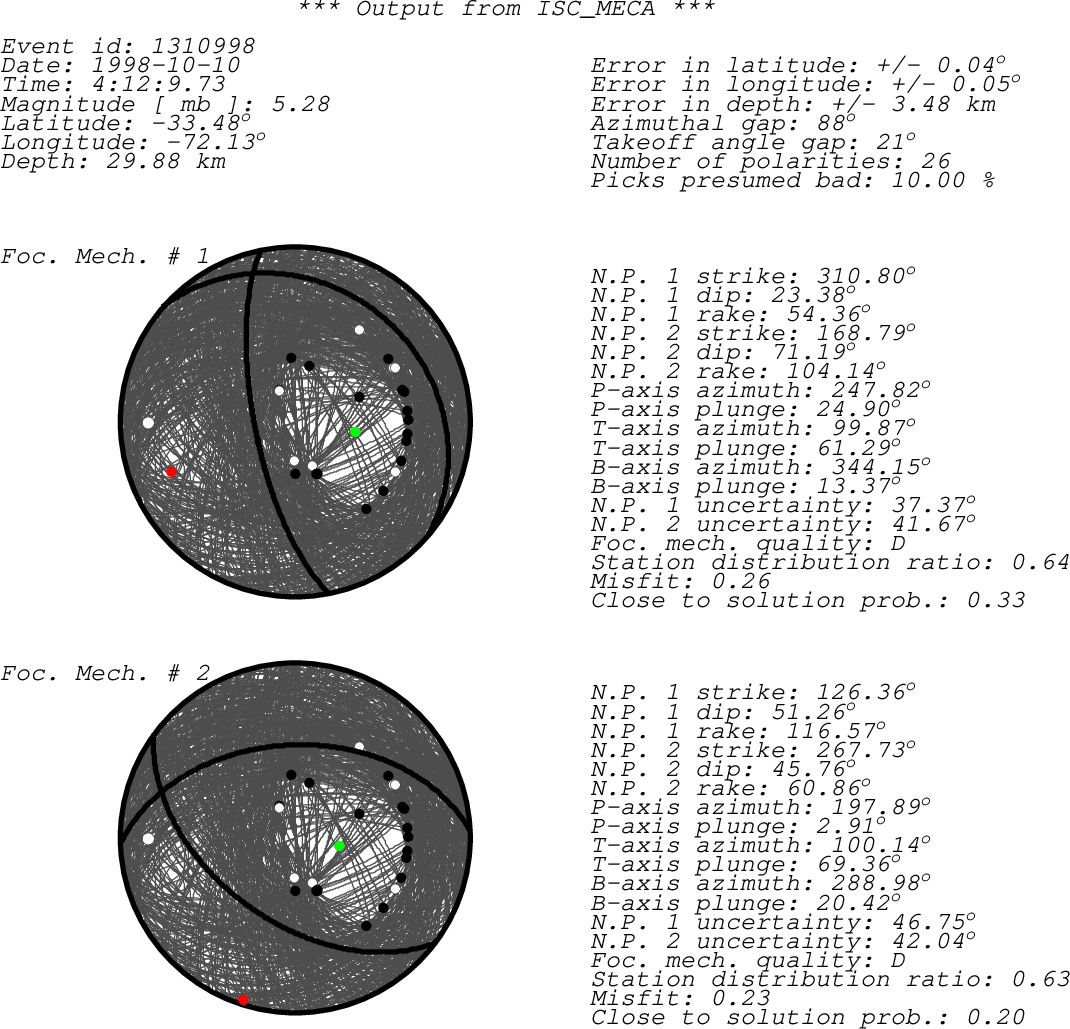

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta LCCH ??? IR D 89.56 0.47 ISC LCCH LNV ??? IR U 128.38 0.77 ISC LNV TACH ??? IR U 100.12 1.01 ISC TACH ROCH ??? IR D 62.01 1.07 ISC ROCH SAN ??? IR U 89.15 1.23 ISC SAN PEL ??? IR U 74.94 1.26 ISC PEL CHCH ??? IR U 110.50 1.32 ISC CHCH PCH ??? IR U 96.36 1.36 ISC PCH CACH ??? IR D 116.85 1.43 ISC CACH SFDO ??? IR U 140.87 1.47 ISC SFDO FCH ??? IR U 84.87 1.55 ISC FCH RTLL ??? IR + 56.27 3.77 ISC RTLL CFA ??? IR - 61.45 3.79 ISC CFA TCA ??? IR + 73.51 6.72 ISC TCA SLA ??? IR - 35.28 10.47 ISC SLA ARE ??? IR - 2.12 16.95 ISC ARE AREB ??? IR + 68.95 25.98 ISC AREB BOG ??? IR + 356.87 37.94 ISC BOG FDF ??? IR + 14.12 49.08 ISC FDF VNA3 ??? IR + 157.96 49.87 ISC VNA3 VNA1 ??? IR + 157.07 50.18 ISC VNA1 VNA2 ??? IR + 157.34 50.52 ISC VNA2 SPA ??? IR + 180.00 56.70 ISC SPA SYO ??Z IR - 158.57 66.38 ISC SYO CSY ??? IR - 181.09 80.53 ISC CSY LRM ??? IR + 333.06 86.95 ISC LRM PCMT ??? IR - 332.92 88.72 ISC PCMT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
