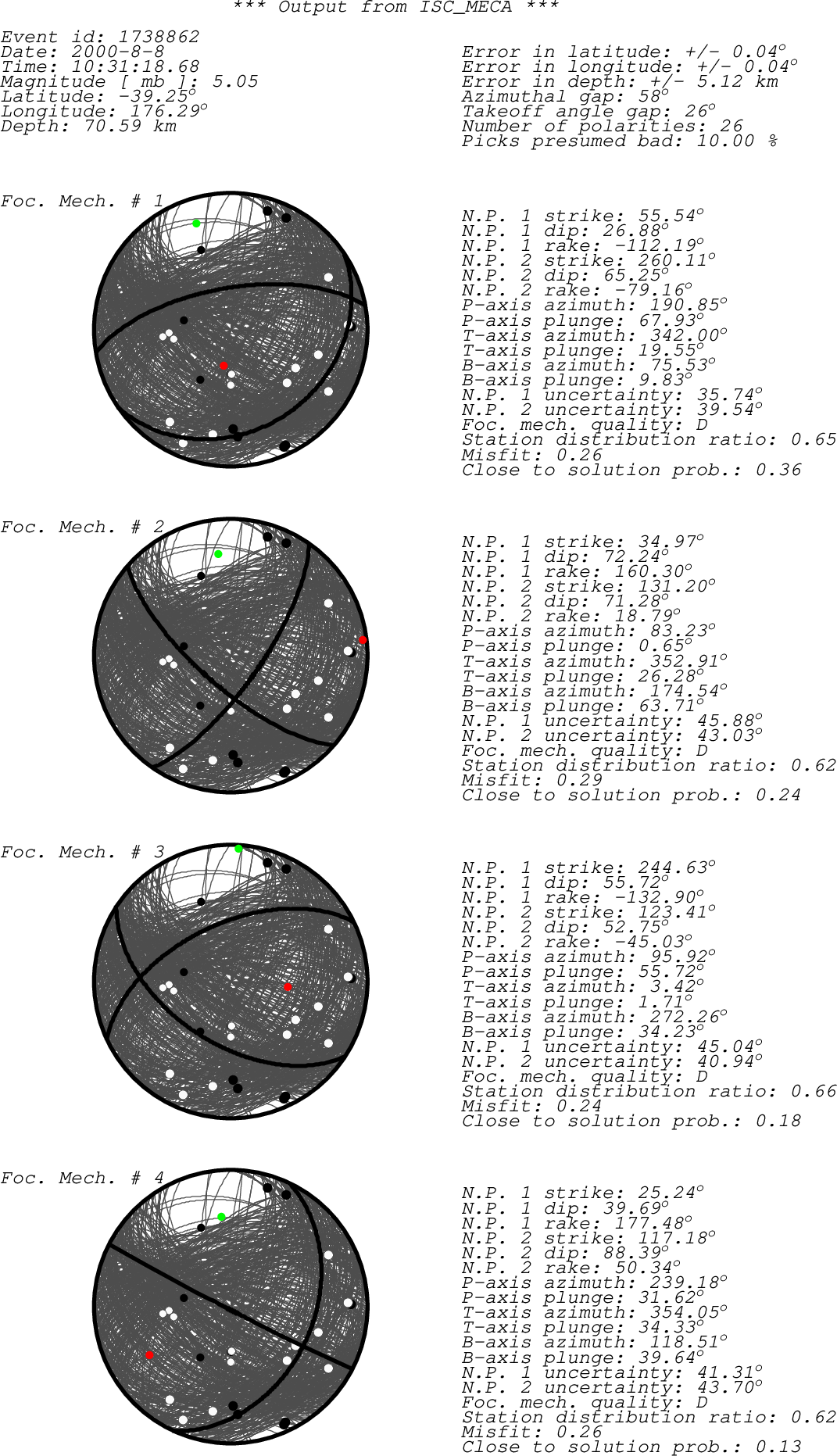

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KATZ ??? IR - 300.55 0.54 WEL KATZ RATZ ??? IR - 313.47 0.55 WEL RATZ OIZ ??? IR - 286.07 0.72 WEL OIZ PATZ ??? IR + 358.51 0.87 WEL PATZ TAZ ??? IR - 9.71 1.03 WEL TAZ UTU ??? IR + 356.06 1.07 WEL UTU URZ ??? IR - 33.34 1.18 WEL URZ BSZ ??? IR - 242.03 1.18 WEL BSZ MOZ ??? IR - 302.25 1.38 WEL MOZ RAEZ ??? IR - 267.95 1.47 WEL RAEZ NEZ ??? IR + 268.61 1.70 WEL NEZ WIZ ??? IR - 22.68 1.86 WEL WIZ MTW ??? IR + 197.27 2.00 WEL MTW CAW ??? IR + 206.36 2.08 WEL CAW OTAZ ??? IR + 334.49 2.54 WEL OTAZ MTAZ ??? IR + 335.64 2.69 WEL MTAZ BKM ??? IR C 339.70 22.61 NOU BKM TOO ??? IR d 264.19 24.14 NEIC TOO FORT ??? IR d 266.96 40.00 NEIC FORT CSY ??? IR c 211.34 45.15 NEIC CSY KLBR ??? IR d 260.33 47.59 NEIC KLBR SPA ??? IR d 180.00 50.94 NEIC SPA TRT ??? IR c 281.07 64.82 NEIC TRT SNAA ??? IR + 180.30 69.38 AWI SNAA VNA2 ??? IR d 178.71 70.10 NEIC VNA2 VNA1 ??? IR d 178.39 70.36 NEIC VNA1 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
