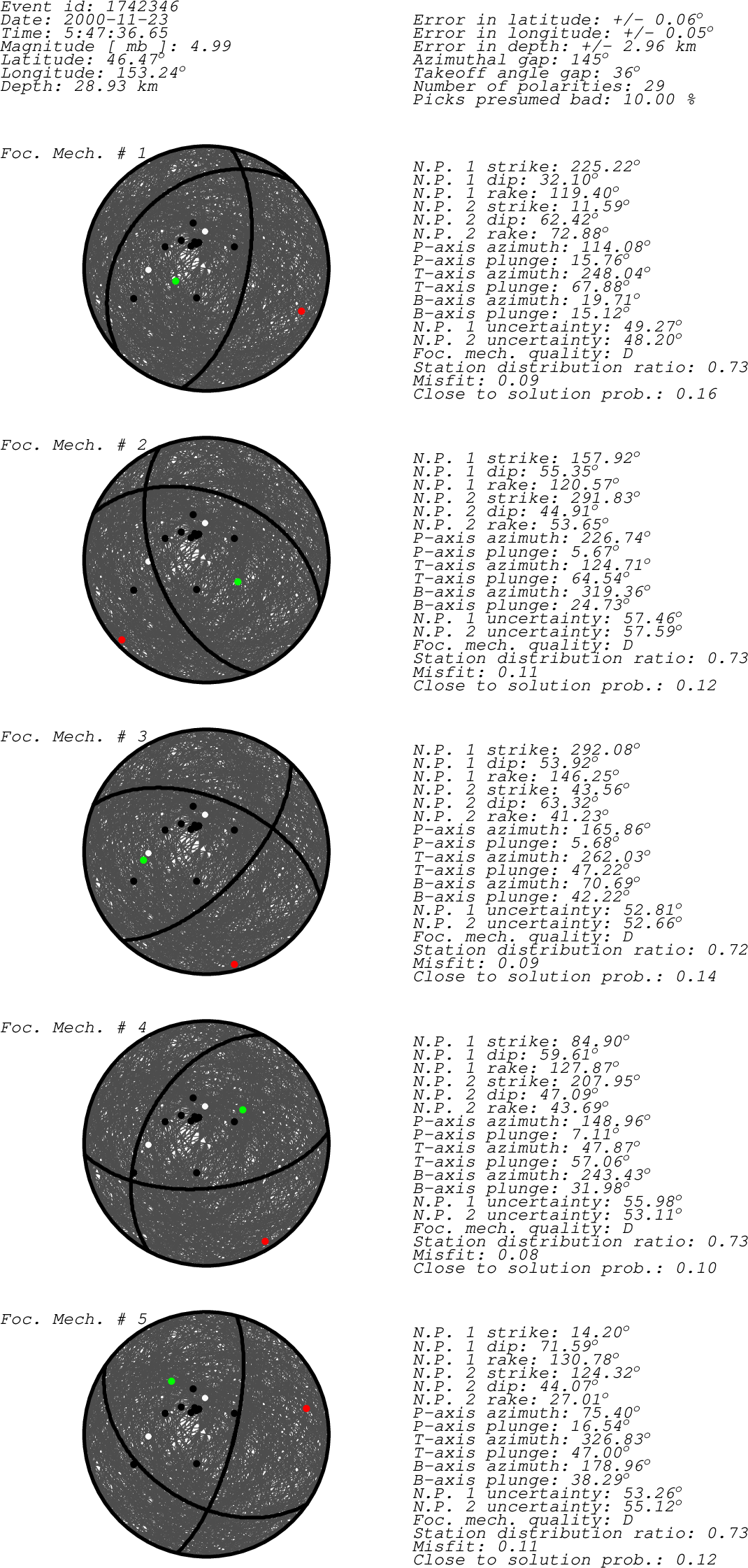

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta YUK S?Z IR C 247.59 5.75 MOS YUK YAK ??? IR c 327.63 20.60 MOS YAK SNY ??? IR D 268.43 21.71 BJI SNY TIXI S?Z IR C 343.70 27.76 MOS TIXI TLY S?Z IR C 297.73 32.38 MOS TLY ARU B?Z IR C 317.65 55.28 MOS ARU DAG ??? IR D 357.78 56.93 DNK DAG LRM ??? IR c 52.66 61.30 NEIC LRM ASPA ??? IR c 198.62 71.97 NEIC ASPA CLL ??? IR c 335.64 76.75 NEIC CLL GRA1 ??? IR c 335.95 78.71 NEIC GRA1 GRF ??? IR c 335.95 78.71 NEIC GRF MOA ??? IR C 333.27 79.46 VIE MOA ARSA ??? IR C 332.22 79.59 VIE ARSA KBA ??? IR C 333.48 80.43 VIE KBA PTJ ??? IR D 331.30 80.63 ZAG PTJ WATA ??? IR C 334.69 80.73 VIE WATA WTTA ??? IR C 334.62 80.78 VIE WTTA MOTA ??? IR C 334.99 80.86 VIE MOTA SQTA ??? IR C 334.87 80.94 VIE SQTA DAVA ??? IR C 335.73 81.27 VIE DAVA HINF ??? IR C 337.84 81.61 LDG HINF VAY ??Z IR + 324.78 82.18 SKO VAY GRR ??? IR C 342.93 82.86 LDG GRR LOR ??? IR C 339.54 82.87 LDG LOR SGMF ??? IR C 343.98 83.32 LDG SGMF AVF ??? IR C 339.69 83.44 LDG AVF SMF ??? IR C 339.33 83.46 LDG SMF LPL ??? IR C 337.02 83.76 LDG LPL LPG ??? IR C 337.00 83.77 LDG LPG sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
