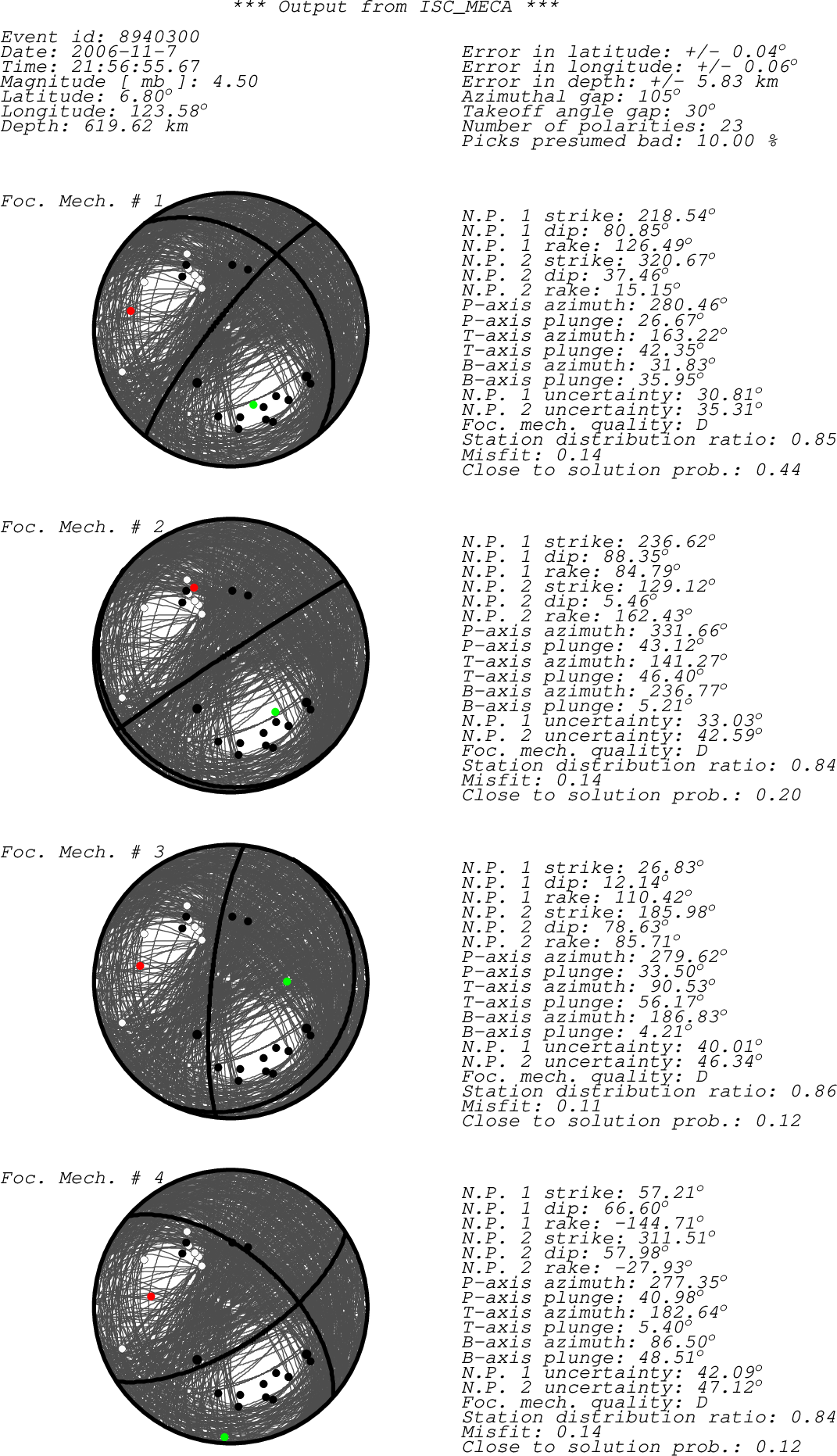

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta SCPH ??? IR c 32.38 3.51 MAN SCPH PPR ??? IR c 301.93 5.64 MAN PPR KSM ??? IR d 248.78 14.26 NEIC KSM KAKA ??? IR C 155.56 21.29 AUST KAKA FITZ ??? IR C 175.34 24.83 AUST FITZ CHTO S?Z IR D 298.79 26.78 MOS CHTO CHTO ??? IR d 298.79 26.78 NEIC CHTO PMG S?Z IR C 124.14 28.48 MOS PMG PMG ??? IR c 124.14 28.48 NEIC PMG WRAB S?Z IR C 158.46 28.60 MOS WRAB CTA ??? IR C 140.60 34.81 AUST CTA CTA S?Z IR C 140.60 34.81 MOS CTA CTAO S?Z IR C 140.60 34.81 MOS CTAO CTAO ??? IR c 140.60 34.81 NEIC CTAO FORT ??? IR C 173.68 37.61 AUST FORT KLBR ??? IR C 187.99 38.58 AUST KLBR GTA ??? IR D 330.17 38.88 BJI GTA STKA ??? IR C 156.91 42.13 AUST STKA STKA ??? IR c 156.91 42.13 NEIC STKA ARMA ??? IR C 145.46 45.75 AUST ARMA WMQ ??? IR C 325.45 48.43 BJI WMQ MK31 S?Z IR D 325.55 53.26 MOS MK31 MK31 ??? IR d 325.55 53.26 NEIC MK31 AAK S?Z IR C 317.72 55.99 MOS AAK ZRNK S?Z IR D 326.65 63.77 MOS ZRNK ZRNK ??? IR d 326.65 63.77 NEIC ZRNK TIXI S?Z IR C 1.85 64.86 MOS TIXI BILL S?Z IR C 16.03 67.44 MOS BILL ARU S?Z IR D 327.75 70.68 MOS ARU OBN S?Z IR D 324.66 82.76 MOS OBN sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
