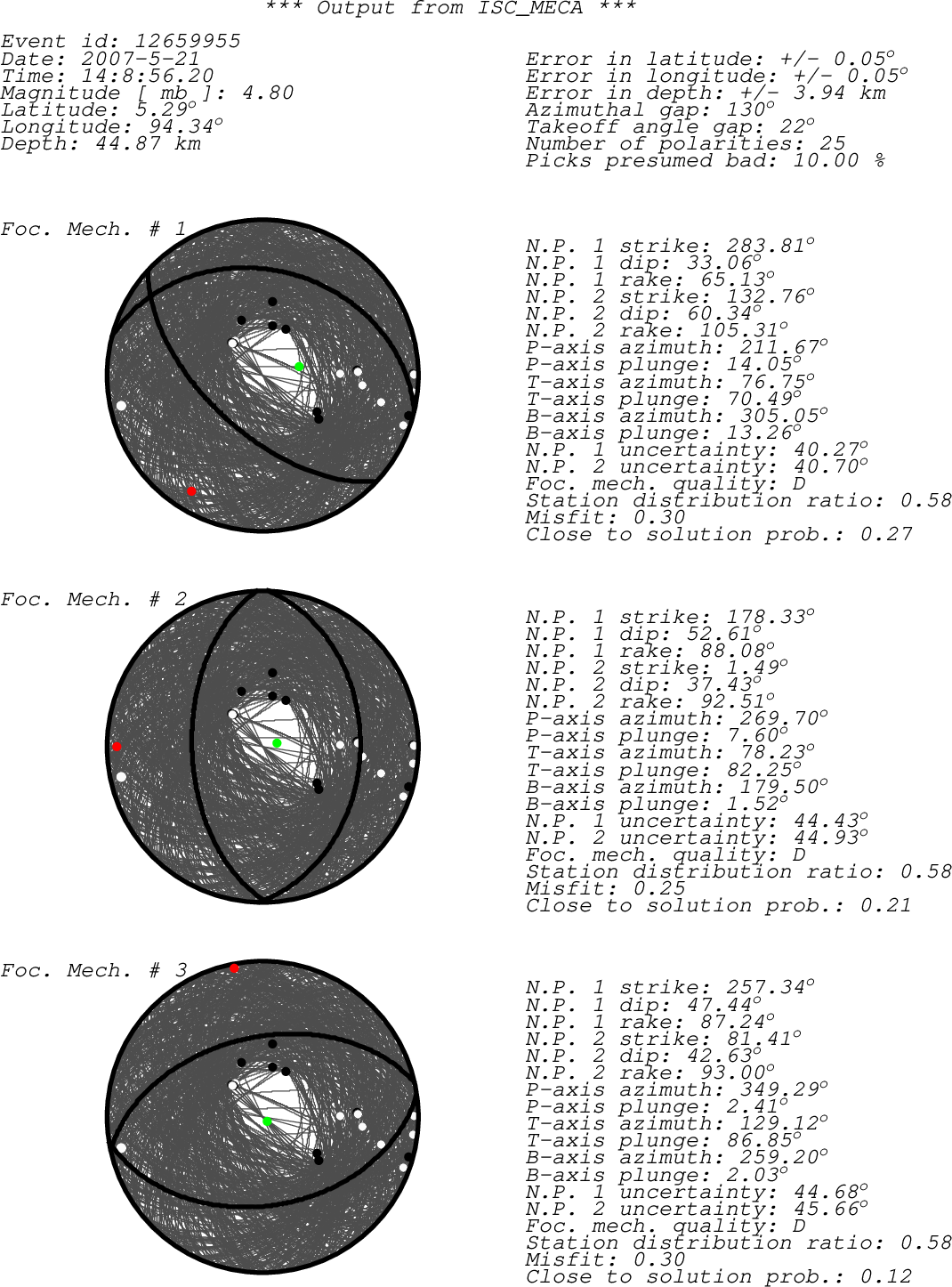

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BSI ??? IR D 77.77 0.98 DJA BSI KULM HHZ IR D 89.70 6.29 KLM KULM IPM HHZ IR D 96.59 6.71 KLM IPM FRIM ELZ IR C 105.38 7.55 KLM FRIM KTGM ELZ IR C 89.34 8.76 KLM KTGM KGM ELZ IR D 109.61 9.53 KLM KGM MYKOM HHZ IR D 109.77 10.11 KLM MYKOM NANT ??? IR d 24.27 14.79 BKK NANT KSM HHZ IR D 102.82 16.39 KLM KSM SBUM HHZ IR C 98.31 18.06 KLM SBUM BTM ELZ IR D 95.58 18.81 KLM BTM KKM HHZ IR C 86.96 21.78 KLM KKM SDKM ELZ IR D 88.04 22.76 KLM SDKM MYLDM HHZ IR D 89.14 24.06 KLM MYLDM GTA ??? IR C 7.53 34.33 BJI GTA FITZ ??? IR C 127.70 38.65 AUST FITZ WB2 ??? IR C 123.71 46.65 AUST WB2 SVE S?Z IR C 338.89 57.86 MOS SVE ARU B?Z IR D 337.57 58.33 MOS ARU MA2 B?Z IR C 27.02 68.96 MOS MA2 TIXI B?Z IR C 11.04 69.71 MOS TIXI SOKA ??? IR c 316.40 78.83 VIE SOKA CLL S?Z IR D 321.01 80.48 MOS CLL CLL ??Z IR - 321.01 80.48 CLL CLL WTTA HHZ IR d 316.87 81.19 VIE WTTA WTTA S?Z IR D 316.87 81.19 MOS WTTA SQTA EHZ IR c 316.82 81.48 VIE SQTA SQTA S?Z IR C 316.82 81.48 MOS SQTA MOTA EHZ IR c 316.94 81.55 VIE MOTA MOTA S?Z IR C 316.94 81.55 MOS MOTA RETA HHZ IR c 317.08 81.79 VIE RETA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
