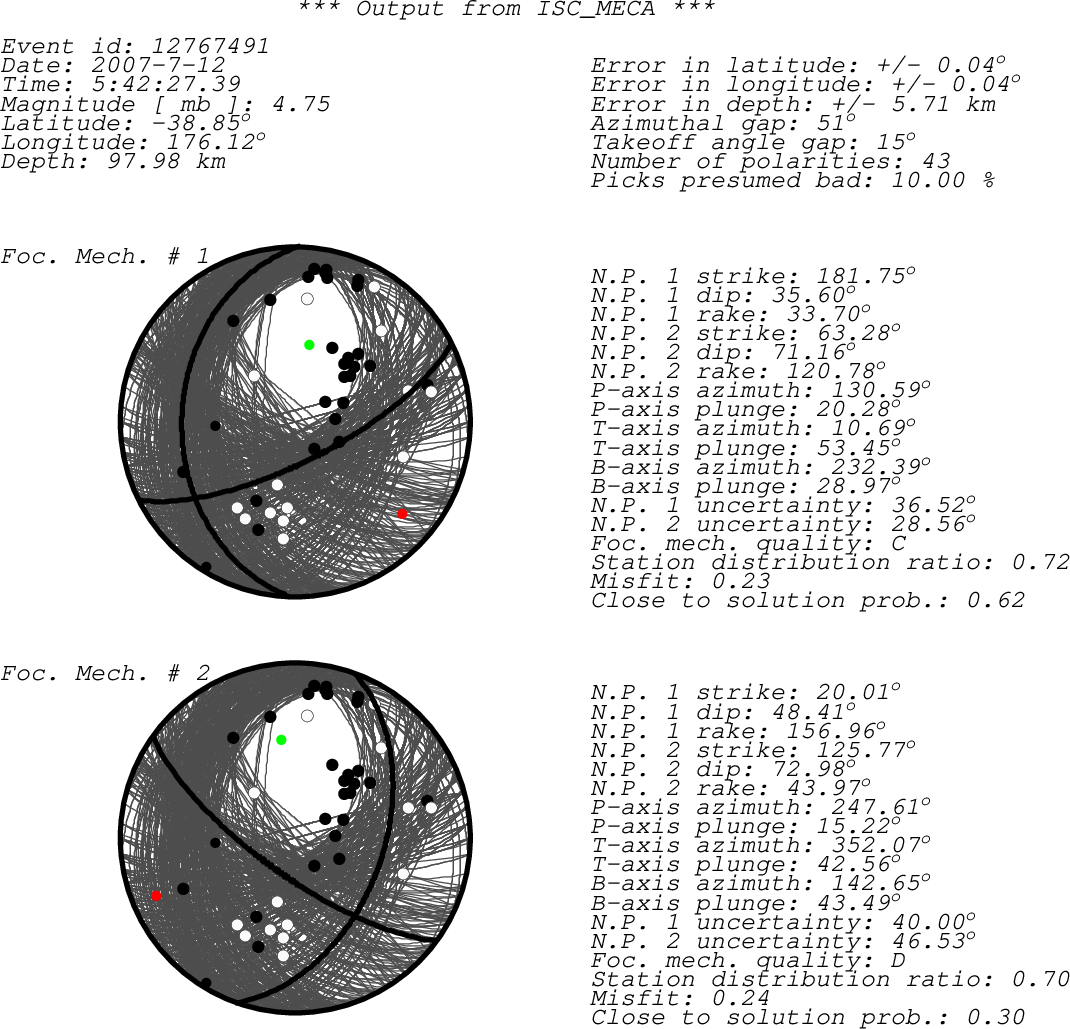

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta HIZ ??? IR d 288.26 1.05 WEL HIZ KAHZ ??? IR c 148.44 1.11 WEL KAHZ TSZ ??? IR d 185.81 1.22 WEL TSZ WPHZ ??? IR c 168.60 1.24 WEL WPHZ WAZ ??? IR d 223.87 1.26 WEL WAZ NEZ ??? IR c 254.40 1.63 WEL NEZ PKE ??? IR d 257.60 1.70 WEL PKE TIWZ ??? IR c 185.31 1.93 WEL TIWZ HOWZ ??? IR c 192.65 2.10 WEL HOWZ KIW ??? IR c 204.50 2.22 WEL KIW MTW ??? IR c 191.46 2.36 WEL MTW TRWZ ??? IR c 187.30 2.57 WEL TRWZ PAWZ ??? IR c 191.66 2.59 WEL PAWZ MRW ??? IR c 204.19 2.62 WEL MRW TCW ??? IR d 210.39 2.75 WEL TCW SYZ ??? IR c 211.50 9.24 WEL SYZ FORT ??? IR C 266.58 39.89 AUST FORT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
