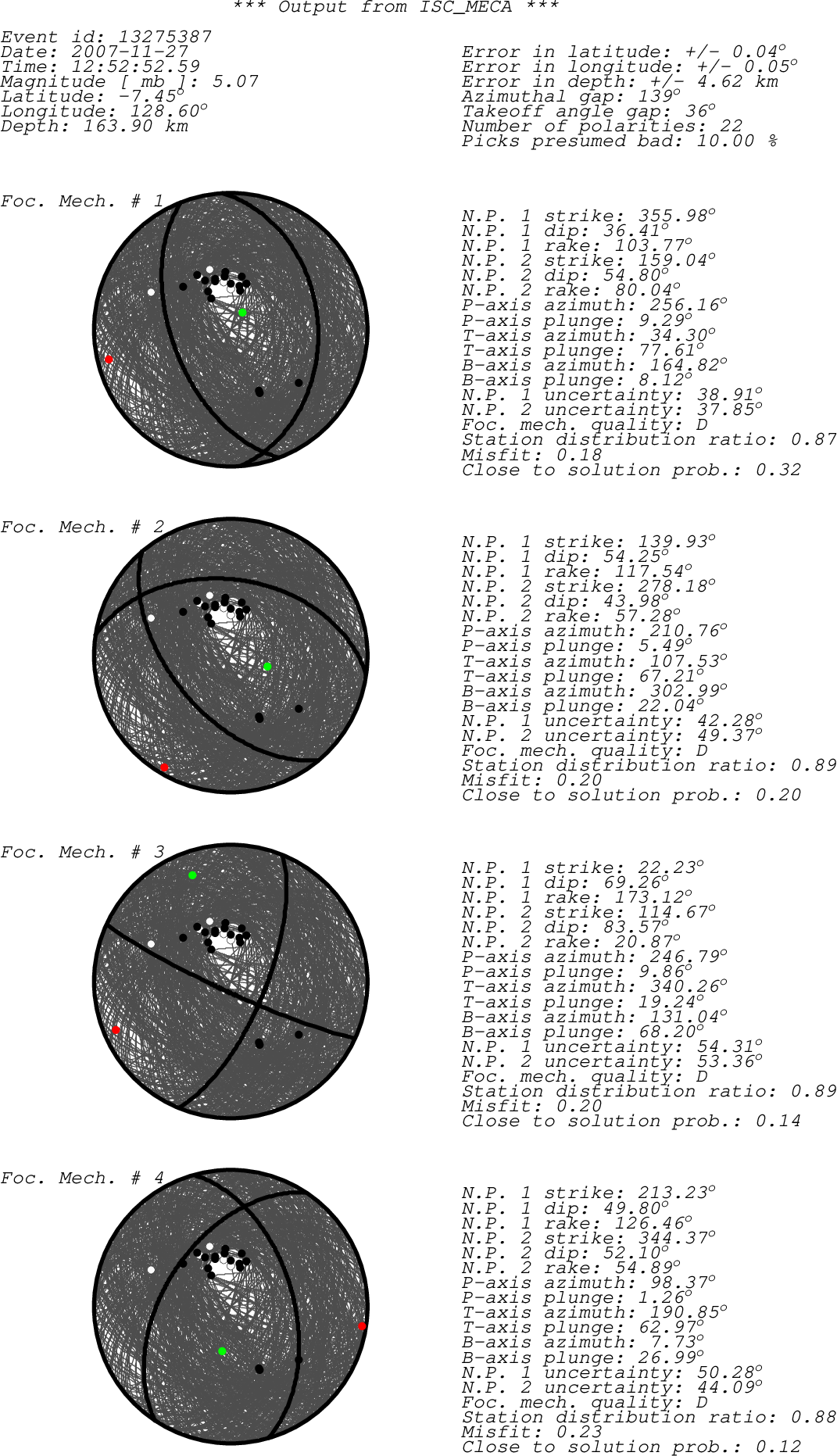

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KAKA ??? IR D 144.40 6.45 AUST KAKA TSM ELZ IR C 317.15 15.83 KLM TSM SDKM ELZ IR D 318.52 17.28 KLM SDKM BTM ELZ IR C 303.83 18.75 KLM BTM SBUM HHZ IR C 300.45 19.07 KLM SBUM KSM HHZ IR D 295.20 20.29 KLM KSM CTA ??? IR C 128.05 21.23 AUST CTA CTA S?Z IR C 128.05 21.23 MOS CTA STKA ??? IR C 155.21 27.15 AUST STKA TOO ??? IR C 155.39 33.68 AUST TOO CHG ??? IR c 312.13 39.19 BKK CHG GYA ??? IR C 328.51 39.87 BJI GYA WHN ??? IR D 340.79 40.18 BJI WHN CD2 ??? IR D 329.27 44.96 BJI CD2 SNY ??? IR C 355.05 49.26 BJI SNY GTA ??? IR C 332.44 53.71 BJI GTA YSS B?Z IR C 11.71 55.61 MOS YSS HIA B?Z IR C 353.10 57.01 MOS HIA ULN B?Z IR C 343.10 58.28 MOS ULN ZAK S?Z IR C 341.88 61.65 MOS ZAK PET B?Z IR C 19.43 65.43 MOS PET BOD S?Z IR D 351.52 66.13 MOS BOD YAK B?Z IR C 0.55 69.28 MOS YAK KURK S?Z IR C 329.25 72.18 MOS KURK SEY S?Z IR C 11.15 72.51 MOS SEY TIXI B?Z IR D 0.09 78.94 MOS TIXI BILL S?Z IR C 13.51 79.87 MOS BILL ARU B?Z IR C 328.41 85.36 MOS ARU COLA B?Z IR C 25.17 93.95 MOS COLA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
