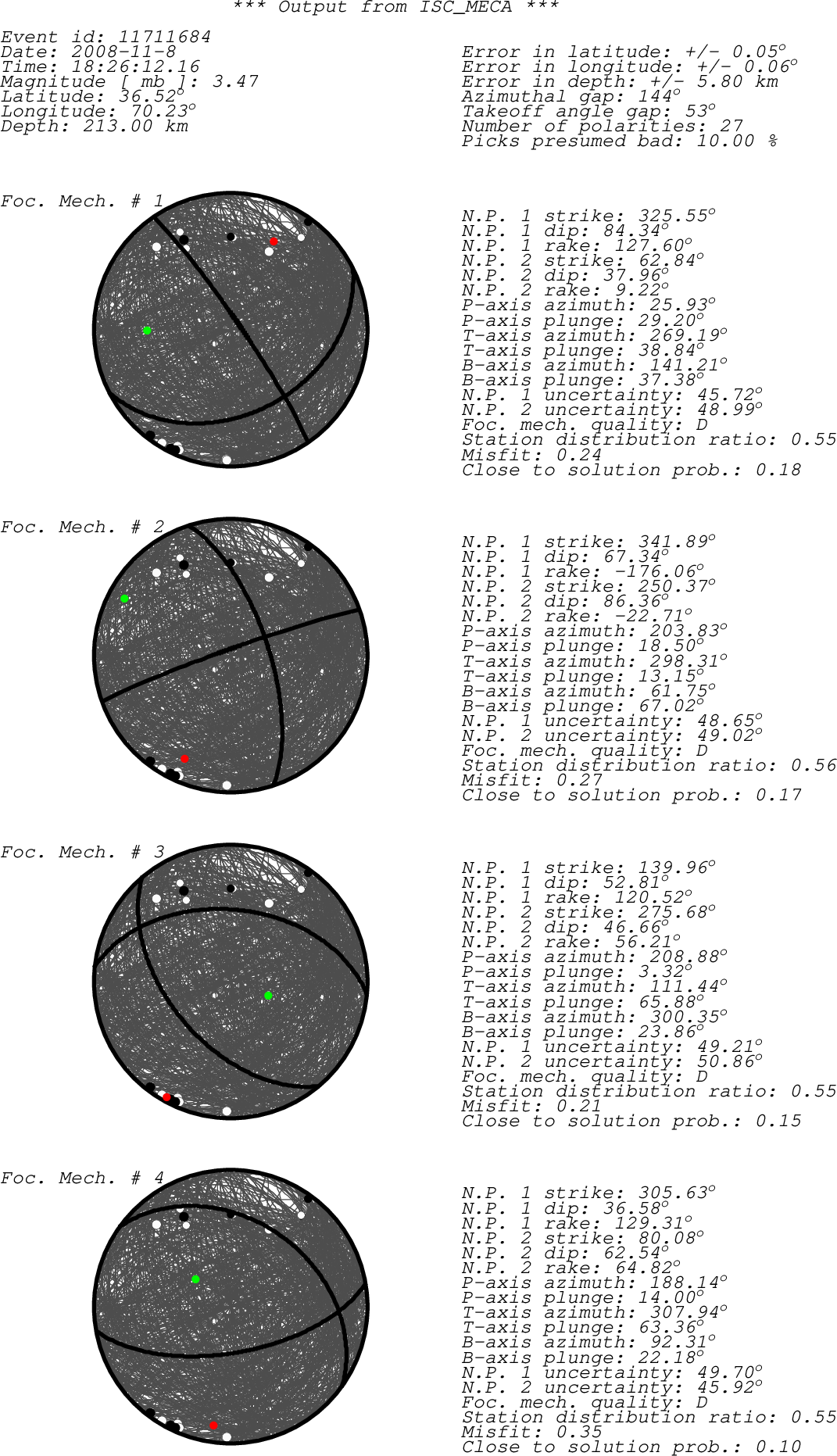

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KBL BHZ IU -- - a 206.47 2.20 ISC KBL CEP ??? IR + 152.43 3.02 MSSP CEP CHCP ??? IR - 138.05 3.79 MSSP CHCP AML BHZ KN -- - a 24.54 6.21 ISC AML KK06 SHZ KZ -- - a 1.89 6.57 ISC KK06 KK02 SHZ KZ -- - a 1.80 6.58 ISC KK02 KK01 SHZ KZ -- - a 1.76 6.58 ISC KK01 KK09 SHZ KZ -- - a 1.72 6.60 ISC KK09 EKS2 BHZ KN -- - a 22.97 6.72 ISC EKS2 CHM BHZ KN -- + a 26.89 7.35 ISC CHMS ULHL BHZ KN -- + a 37.30 7.37 ISC ULHL USP BHZ KN -- + a 24.64 7.49 ISC USP TKM2 ??? IR d 31.24 7.61 NNC TKM2 TKM2 BHZ KN -- - a 31.24 7.61 ISC TKM2 KNDC ??? IR c 35.66 8.46 NNC KNDC KNDC BHZ KZ -- + a 35.67 8.46 ISC KNDC MK09 SHZ KZ -- - a 37.51 13.62 ISC MK09 MK03 SHZ KZ -- - a 37.59 13.63 ISC MK03 MK04 SHZ KZ -- - a 37.56 13.63 ISC MK04 MK01 SHZ KZ -- - a 37.58 13.63 ISC MK01 MK02 SHZ KZ -- - a 37.59 13.64 ISC MK02 MK06 SHZ KZ -- - a 37.59 13.64 ISC MK06 MK05 SHZ KZ -- + a 37.48 13.65 ISC MK05 AB31 ??? IR d 332.69 14.78 NNC AB31 VOSK ??? IR d 1.63 16.21 NNC VOSK ZRNK ??? IR c 357.38 16.45 NNC ZRNK AKTO ??? IR d 331.48 16.46 NNC AKTO BVA5 SHZ KZ -- + a 0.29 16.50 ISC BVB5 BRVK ??? IR d 0.11 16.54 NNC BRVK sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
