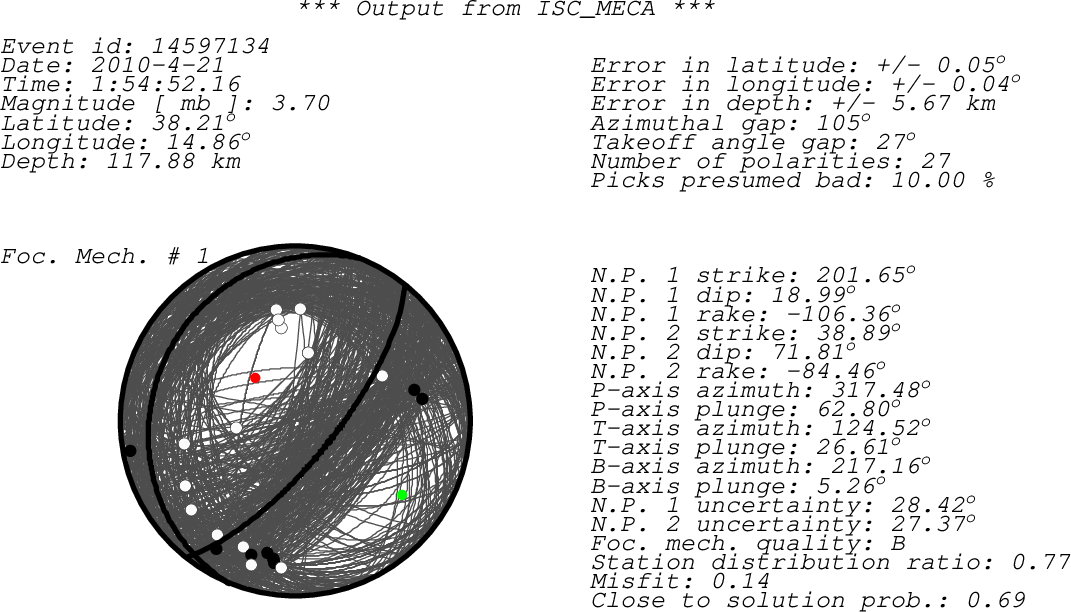

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta MSRU HHZ IV -- - a 83.48 0.52 ISC MSRU ECNV HHZ IV -- - a 190.67 0.62 ISC ECNV ECNV BHZ IV -- - a 190.67 0.62 ISC ECNV HCRL HHZ IV -- - a 171.38 0.93 ISC HCRL ALJA HHZ IV -- - a 242.67 0.98 ISC ALJA SSY HHZ IV -- - a 170.63 1.06 ISC SSY HMDC HHZ IV -- - a 182.73 1.25 ISC HMDC HAVL HHZ IV -- - a 170.33 1.26 ISC HAVL HAVL BHZ IV -- - a 170.33 1.26 ISC HAVL PLAC HHZ IV -- - a 78.50 1.27 ISC PLAC CRJA SHZ IV -- + a 255.11 1.52 ISC CRJA SERS BHZ IV -- + a 59.45 1.66 ISC SERS SERS HHZ IV -- - a 59.45 1.66 ISC SERS MTGR SHZ IV -- + a 259.94 1.69 ISC MTGR BULG HHZ IV -- + a 12.05 1.91 ISC BULG CUC BHZ MN -- - a 22.38 1.93 ISC CUC PIPA HHZ IV -- - a 49.55 1.99 ISC PIPA SALB HHZ IV -- - a 34.34 2.03 ISC SALB CMPR BHZ IV -- + a 9.18 2.14 ISC CMPR CMPR HHZ IV -- + a 9.18 2.14 ISC CMPR MTSN HHZ IV -- + a 18.38 2.17 ISC MTSN CDRU BHZ IV -- + a 8.51 2.31 ISC CDRU CDRU HHZ IV -- + a 8.51 2.31 ISC CDRU MCRV HHZ IV -- - a 5.25 2.58 ISC MCRV LTRZ EHZ IV -- + a 31.81 2.83 ISC LTRZ PALZ HHZ IV -- - a 16.97 2.86 ISC PALZ AGG HHZ HT -- + a 79.79 5.91 ISC AGG sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
