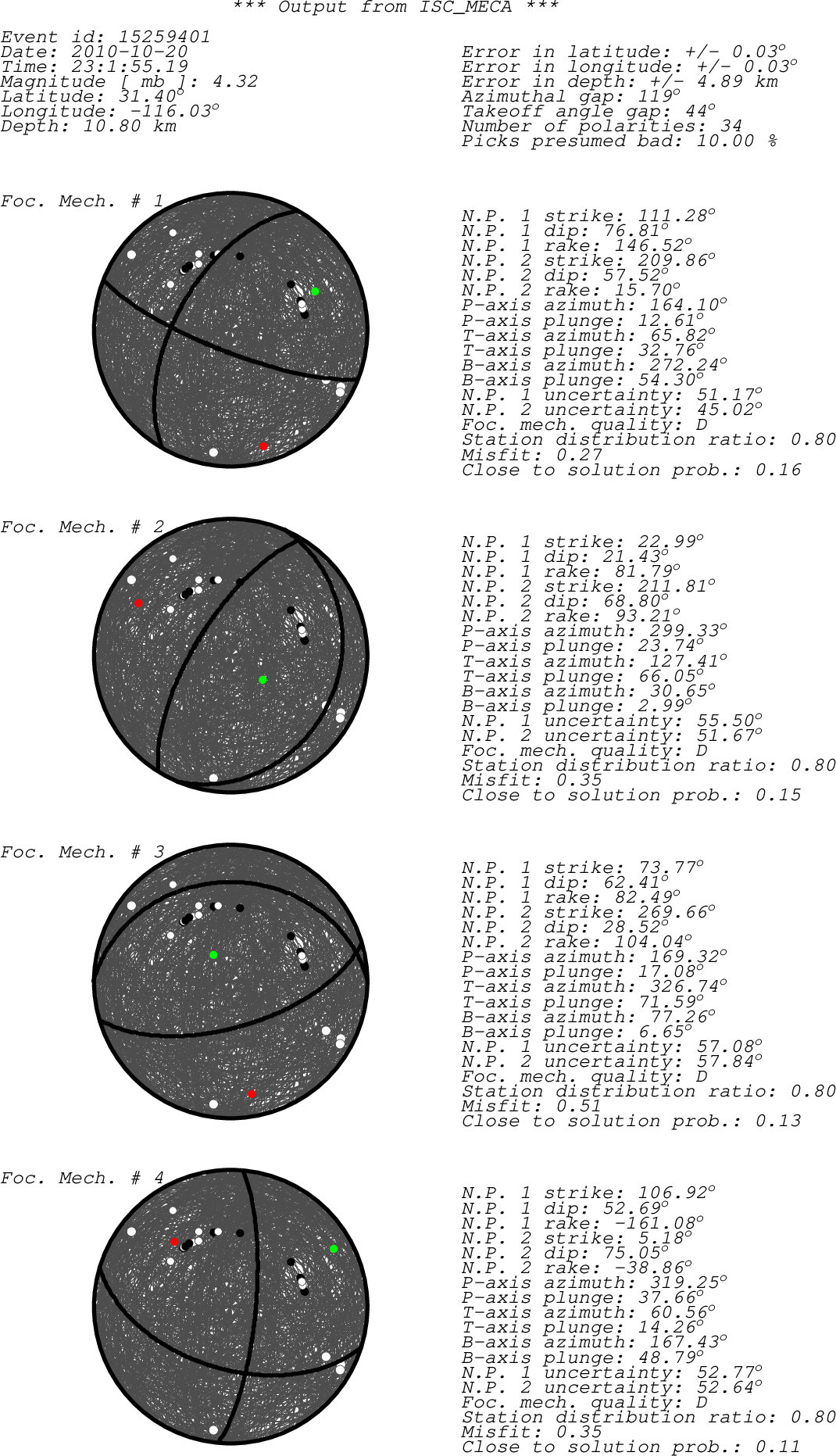

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta ZAX S?Z IR D 297.62 0.24 ECX ZAX RDX S?Z IR D 7.89 0.53 ECX RDX ECNX S?Z IR D 297.54 0.55 ECX ECNX SPX H?Z IR D 127.09 0.60 ECX SPX PBX S?Z IR D 299.68 0.69 ECX PBX CBX H?Z IR D 329.32 1.06 ECX CBX CPBX B?Z IR C 31.07 1.18 ECX CPBX RMX S?Z IR D 357.93 1.20 ECX RMX BAR H?Z IR D 336.89 1.39 ECX BAR SDRC H?Z IR D 329.91 1.54 ECX SDRC SWS BHZ CI -- + a 7.09 1.55 ISC SWSC HWB BHZ AZ -- - a 334.21 1.80 ISC HWB HWB HHZ AZ -- - a 334.21 1.80 ISC HWB FRD HHZ AZ -- - a 347.03 2.14 ISC FRD FRD BHZ AZ -- - a 347.03 2.14 ISC FRD B087 EHZ PB -- - a 347.02 2.14 ISC FRD SND BHZ AZ -- - a 347.14 2.20 ISC SNDA SND HHZ AZ -- + a 347.14 2.20 ISC SNDA TPFO BHZ TA -- - a 350.78 2.23 ISC TPFO SCI2 BHZ CI -- - a 307.00 2.65 ISC SCI2 214A BHZ TA -- + a 77.81 2.80 ISC 214A PASC BHZ CI 10 + a 327.21 3.30 ISC PASC DJJ BHZ CI -- + a 323.44 3.38 ISC DJJ B072 EHZ PB -- - a 321.96 5.70 ISC GHIB B078 EHZ PB -- - a 322.00 5.70 ISC GHIB B076 EHZ PB -- + a 322.17 5.82 ISC JCNB B073 EHZ PB -- + a 321.93 5.85 ISC TRC B075 EHZ PB -- + a 321.55 5.86 ISC PSTM W18A BHZ TA -- + a 53.22 6.44 ISC W18A B065 EHZ PB -- + a 321.16 6.98 ISC FRP B058 EHZ PB -- - a 320.95 7.08 ISC HJGM 121A BHZ TA -- + a 78.72 7.09 ISC 121A SMC EHZ SC -- - a 70.32 7.96 ISC SMNM BAR EHZ SC -- + a 68.43 8.38 ISC BNM LPM EHZ SC -- + a 67.36 8.42 ISC LPM MSTX BHZ TA -- - a 73.59 11.46 ISC MSTX sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
