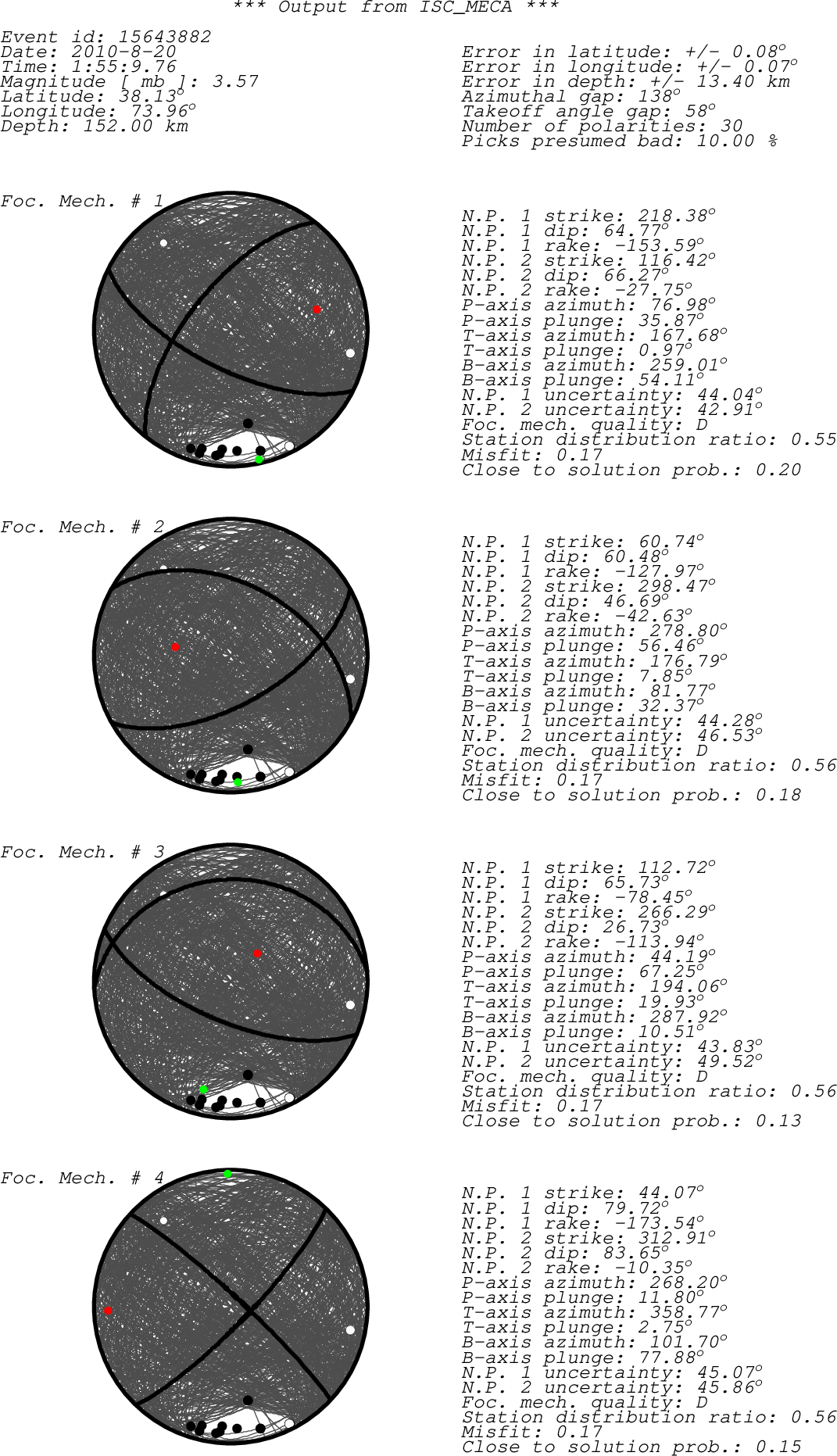

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta SFK ??? IR c 349.42 1.91 NNC SFK SFK HHZ CK -- + a 349.55 1.92 ISC SFK SFK HHZ KR -- + a 349.43 1.92 ISC SFK ARLS BHZ KR -- + a 4.23 3.73 ISC ARLS AML BHZ KN -- + a 357.16 4.00 ISC AML KZA BHZ KN -- + a 13.66 4.07 ISC KZA DZET ??? IR d 281.10 4.08 NNC DZET DZET HHZ CK -- - a 281.09 4.08 ISC DZET MNAS ??? IR d 346.11 4.49 NNC MNAS MNAS HHZ KR -- + a 346.14 4.50 ISC MNAS MNAS HHZ CK -- + a 346.07 4.50 ISC MNAS AAK ??? IR c 5.00 4.52 NNC AAK BOOM BHZ KR -- + a 18.54 4.61 ISC BOOM CHM BHZ KN -- + a 6.80 4.90 ISC CHMS TKM2 ??? IR c 14.08 4.95 NNC TKM2 KK06 SHZ KZ -- + a 333.30 5.61 ISC KK06 KK07 SHZ KZ -- + a 333.11 5.61 ISC KK07 KK31 ??? IR c 333.25 5.62 NNC KK31 KKAR BHZ KZ -- - a 333.25 5.62 ISC KKAR KK01 SHZ KZ -- + a 333.23 5.62 ISC KK01 KK03 SHZ KZ -- + a 333.18 5.62 ISC KK03 KK04 SHZ KZ -- + a 333.25 5.63 ISC KK04 KK08 SHZ KZ -- + a 333.10 5.63 ISC KK08 KK09 SHZ KZ -- + a 333.27 5.64 ISC KK09 AB06 SHZ KZ -- + a 322.30 15.01 ISC AB06 AB08 SHZ KZ -- - a 322.17 15.02 ISC AB08 AB01 SHZ KZ -- + a 322.24 15.02 ISC AB01 AB04 SHZ KZ -- - a 322.24 15.03 ISC AB04 AB05 SHZ KZ -- + a 322.29 15.03 ISC AB05 AB09 SHZ KZ -- - a 322.21 15.04 ISC AB09 AKTO ??? IR c 322.41 16.74 NNC AKTO sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
