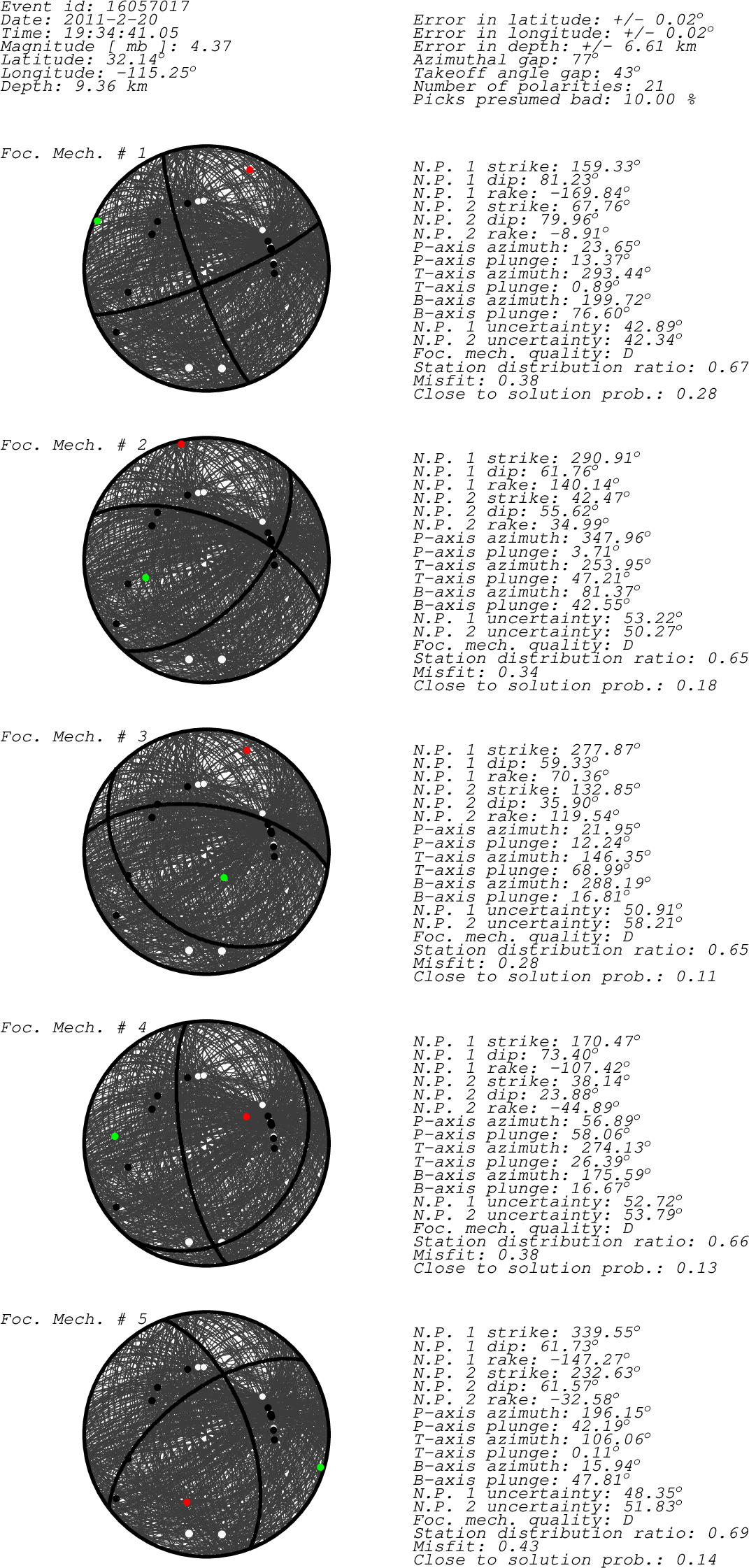

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta MBIG H?Z IR D 9.94 0.27 ECX MBIG CPBX S?Z IR D 351.41 0.28 ECX CPBX ZAX S?Z IR C 234.66 1.07 ECX ZAX PBX S?Z IR C 252.92 1.31 ECX PBX HWB HHZ AZ -- + a 302.08 1.69 ISC HWB HWB BHZ AZ -- + a 302.08 1.69 ISC HWB 214A BHZ TA -- + a 94.33 2.08 ISC 214A GMR BHZ CI -- - a 352.79 2.66 ISC GMRC CHF BHZ CI -- + a 314.07 3.19 ISC CHFC TUC BHZ IU 10 + a 86.21 3.79 ISC TUC GWY EHZ NN -- + a 344.18 4.21 ISC GWY W18A BHZ TA -- - a 55.65 5.48 ISC W18A R11A BHZ TA -- - a 357.59 6.20 ISC R11A 121A BHZ TA -- - a 84.45 6.33 ISC 121A SBY EHZ SC -- + a 72.70 7.02 ISC SBM SMC EHZ SC -- + a 74.48 7.11 ISC SMNM WTX EHZ SC -- + a 72.30 7.23 ISC WTX MLM EHZ SC -- + a 66.30 7.28 ISC MLM CAR EHZ SC -- + a 73.51 7.38 ISC CRNM BAR EHZ SC -- - a 72.17 7.51 ISC BNM LPM EHZ SC -- - a 70.97 7.54 ISC LPM sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
