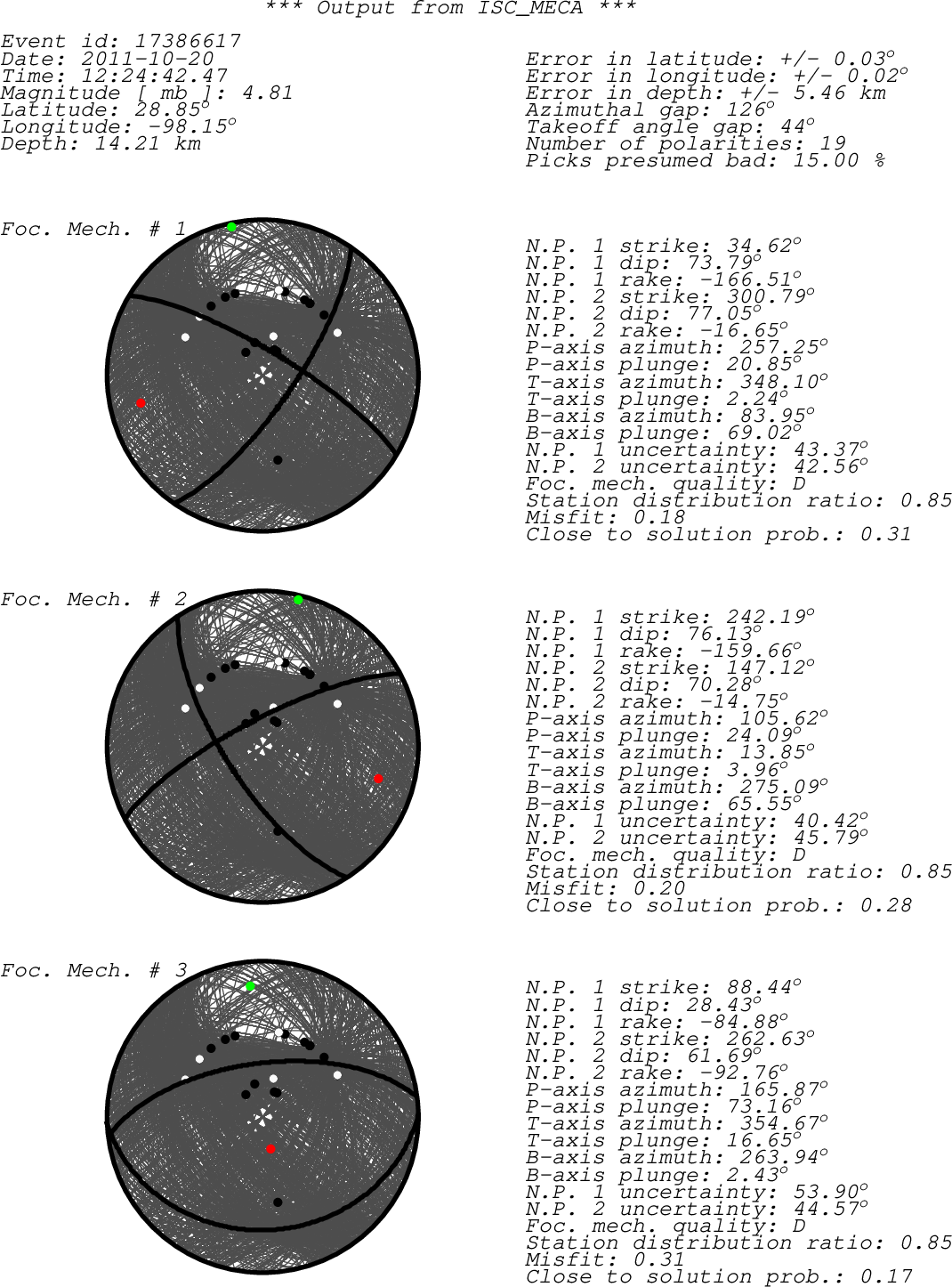

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KVTX BHZ US 00 + a 170.08 1.32 ISC KVTX HKT BHZ IU 10 - a 60.60 2.30 ISC HKT HKT BHZ IU 00 - a 60.60 2.30 ISC HKT WHTX BHZ TA -- - a 10.63 3.19 ISC WHTX ABTX BHZ TA -- + a 341.50 3.98 ISC ABTX MSTX BHZ TA -- + a 323.42 6.46 ISC MSTX AMTX BHZ US 00 + a 334.37 6.72 ISC AMTX MNTX BHZ US 00 - a 296.20 6.87 ISC MNTX MIAR BHZ US 00 + a 33.28 6.89 ISC MIAR MIAR BHZ US 00 + a 33.28 6.89 ISC MIAR TUL1 BHZ TA -- + a 15.19 7.32 ISC TUL1 W39A BHZ TA -- + a 29.23 7.33 ISC W39A CCAR HHZ AG 00 + a 45.57 7.43 ISC CCAR ANMO S?Z IR D 312.83 9.32 MOS ANMO DAG ??? IR D 15.20 59.74 DNK DAG DAG S?Z IR D 15.20 59.74 MOS DAG TIXI S?Z IR C 346.09 74.58 MOS TIXI YSS S?Z IR C 323.16 86.71 MOS YSS OBN S?Z IR C 24.11 87.81 MOS OBN KIEV S?Z IR C 30.38 88.17 MOS KIEV ARU B?Z IR C 12.70 92.78 MOS ARU sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
