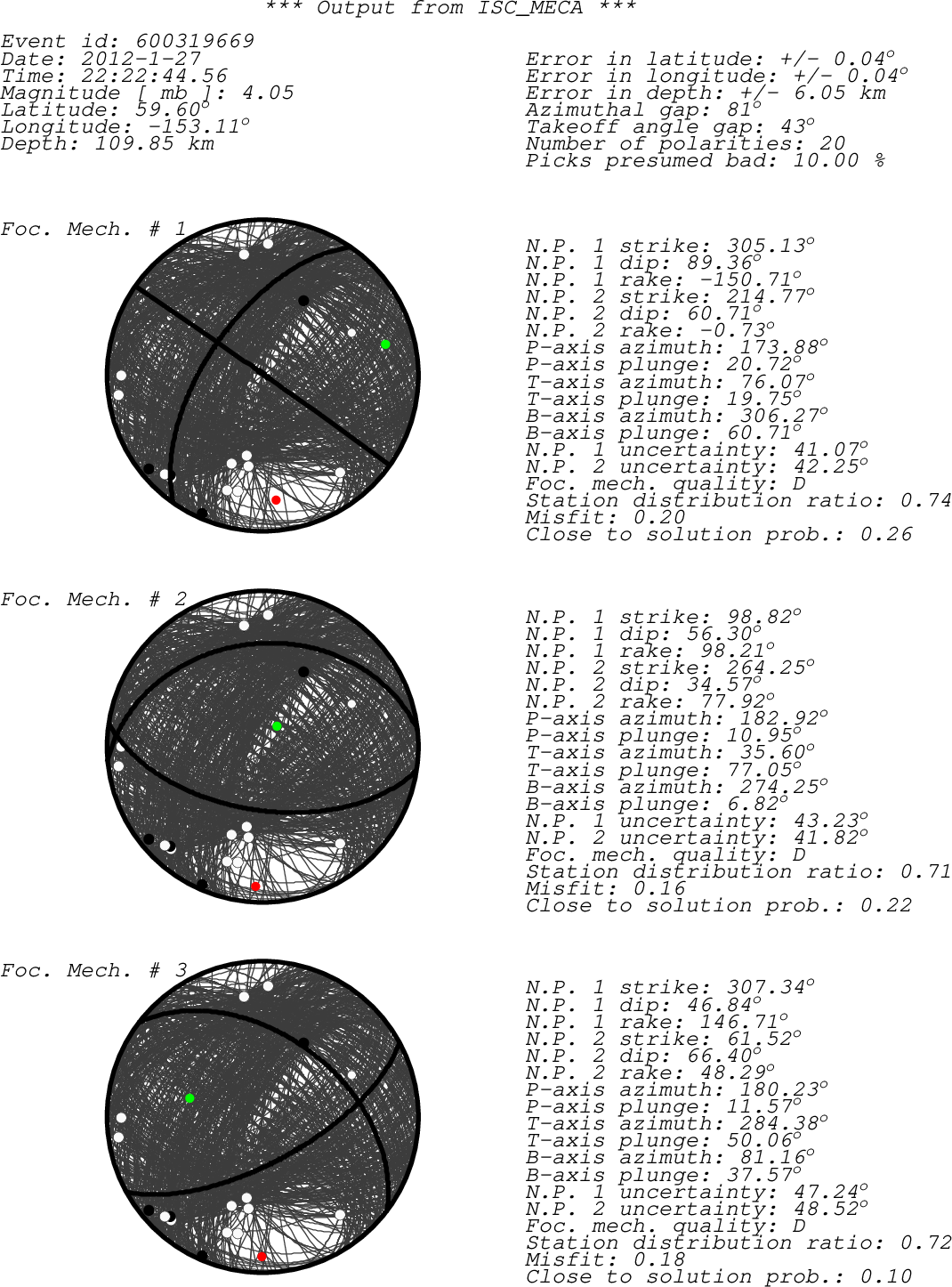

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta RED BHZ AV -- - a 11.37 0.84 ISC RED FONW EHZ AV -- + a 208.90 0.87 ISC FONW RDJH BHZ AV -- - a 8.52 1.01 ISC RDJH RDT EHZ AV -- - a 19.48 1.04 ISC RDT SPBG BHZ AV -- - a 12.04 1.70 ISC SPBG SPCG BHZ AV -- - a 17.11 1.78 ISC SPCG KDAK BHZ II 00 - a 171.24 1.84 ISC KDAK KDAK BHZ II 10 - a 171.24 1.84 ISC KDAK KDAK BHZ II 10 - a 171.24 1.84 ISC KDAK SVW2 BHZ AT -- - a 321.54 1.96 ISC SVW2 OHAK BHZ AT -- - a 182.35 2.39 ISC OHAK PMR BHZ AT -- + a 42.75 2.80 ISC PMR GHO BHZ AK -- - a 41.56 3.00 ISC GHO SAW BHZ AK -- - a 44.62 3.23 ISC SML MID BHZ AT -- - a 89.95 3.45 ISC MID KAI BHZ AK -- - a 81.99 4.41 ISC KAIM HARP HHZ AK -- + a 50.63 4.78 ISC HARP FYU BHZ AK -- + a 23.67 7.84 ISC FYU YKR3 SHZ CN -- - a 64.60 18.56 ISC YKR3 YKB8 SHZ CN -- - a 64.34 18.66 ISC YKB8 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
