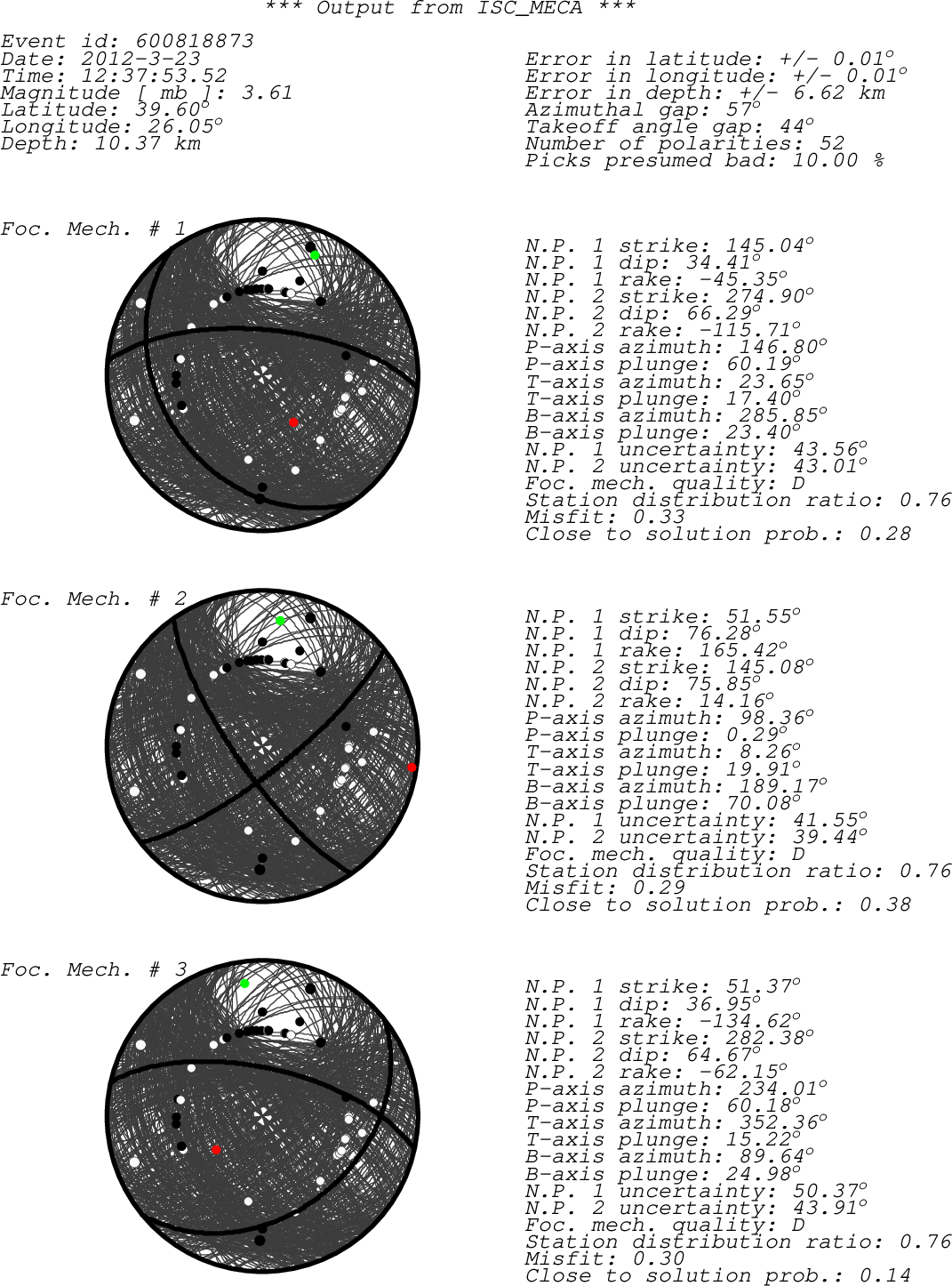

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BOZC ??? IR c 1.35 0.24 AFAD BOZC BAYC ??? IR d 70.41 0.41 AFAD BAYC SIGR HHZ HT -- + a 200.63 0.42 ISC SIGR AYVA ??? IR d 120.46 0.58 AFAD AYVA CHOS HHZ HT -- + a 179.81 1.22 ISC CHOS CHOS BHZ HT -- + a 179.81 1.22 ISC CHOS BALY ??? IR d 83.14 1.22 AFAD BALY BALY BHZ TU -- - a 83.14 1.22 ISC BALY ALN HHZ HT -- + a 0.14 1.29 ISC ALN ALN BHZ HT -- + a 0.14 1.29 ISC ALN KESN ??? IR c 21.51 1.31 AFAD KESN STEP ??? IR d 99.44 1.31 AFAD STEP URLA ??? IR d 160.80 1.31 AFAD URLA RKY BHZ KO -- + a 38.38 1.39 ISC RKY SART ??? IR c 38.40 1.39 AFAD SART AKHS ??? IR d 117.27 1.55 AFAD AKHS PAIG BHZ HT -- - a 281.04 1.85 ISC PAIG DEMI ??? IR d 104.31 2.15 AFAD DEMI AYDB BHZ KO -- - a 138.36 2.20 ISC AYDB XOR HHZ HT -- + a 264.75 2.22 ISC XOR APE ??? IR D 189.25 2.56 BUC APE TVSB BHZ KO -- - a 92.27 2.65 ISC TVSB LIT HHZ HT -- + a 281.39 2.78 ISC LIT KNT HHZ HT -- - a 303.91 2.86 ISC KNT KHAL ??? IR d 113.56 2.96 AFAD KHAL CAVI BHZ KO -- + a 77.24 2.98 ISC CAVI TRIZ HHZ CL 00 + a 249.47 3.33 ISC TRIZ TRIZ HHZ CL 00 + a 249.47 3.33 ISC TRIZ AIOA EHZ CL 00 - a 246.89 3.42 ISC AIOA AIOA EHZ CL 00 - a 246.89 3.42 ISC AIOA SHUT BHZ KO -- - a 105.25 3.66 ISC SHUT VTS ??? IR D 325.22 3.67 BUC VTS VTS ??? IR D 325.22 3.67 CSEM VTS ISP ??? IR D 115.53 3.93 BUC ISP SVRH BHZ KO -- - a 90.39 4.24 ISC SVRH TIRR ??? IR C 19.20 5.16 BUC TIRR TIRR ??? IR C 19.20 5.16 CSEM TIRR TIRR SHZ GE -- - a 19.20 5.16 ISC TIRR TIRR HHZ GE -- - a 19.20 5.16 ISC TIRR TLB ??? IR C 15.96 5.19 BUC TLB TLB ??? IR C 15.96 5.19 CSEM TLB ISR ??? IR C 3.66 5.52 BUC ISR ISR ??? IR C 3.66 5.52 CSEM ISR CFR ??? IR D 14.84 5.78 BUC CFR CFR ??? IR D 14.84 5.78 CSEM CFR ARR ??? IR C 350.19 5.85 BUC ARR ARR ??? IR C 350.19 5.85 CSEM ARR VOIR ??? IR C 353.13 5.88 BUC VOIR VOIR ??? IR C 353.13 5.88 CSEM VOIR MLR ??? IR C 359.31 5.88 BUC MLR MLR ??? IR C 359.31 5.88 CSEM MLR LOT ??? IR C 344.69 6.08 BUC LOT LOT ??? IR C 344.69 6.08 CSEM LOT PLOR ??? IR D 3.88 6.26 BUC PLOR PLOR ??? IR D 3.88 6.26 CSEM PLOR VRI ??? IR C 4.36 6.28 BUC VRI VRI ??? IR C 4.36 6.28 CSEM VRI DOPR ??? IR C 355.87 6.38 BUC DOPR DOPR ??? IR C 355.87 6.38 CSEM DOPR BZS ??? IR D 332.92 6.84 BUC BZS BZS ??? IR D 332.92 6.84 CSEM BZS TESR ??? IR D 3.46 6.92 BUC TESR TESR ??? IR D 3.46 6.92 CSEM TESR TIP ??? IR C 269.56 7.21 BUC TIP TIP ??? IR C 269.56 7.21 CSEM TIP SIRR ??? IR C 335.66 7.39 BUC SIRR SIRR ??? IR C 335.66 7.39 CSEM SIRR BURAR ??? IR D 355.98 8.03 BUC BURAR BURAR ??? IR D 355.98 8.03 CSEM BURAR sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
