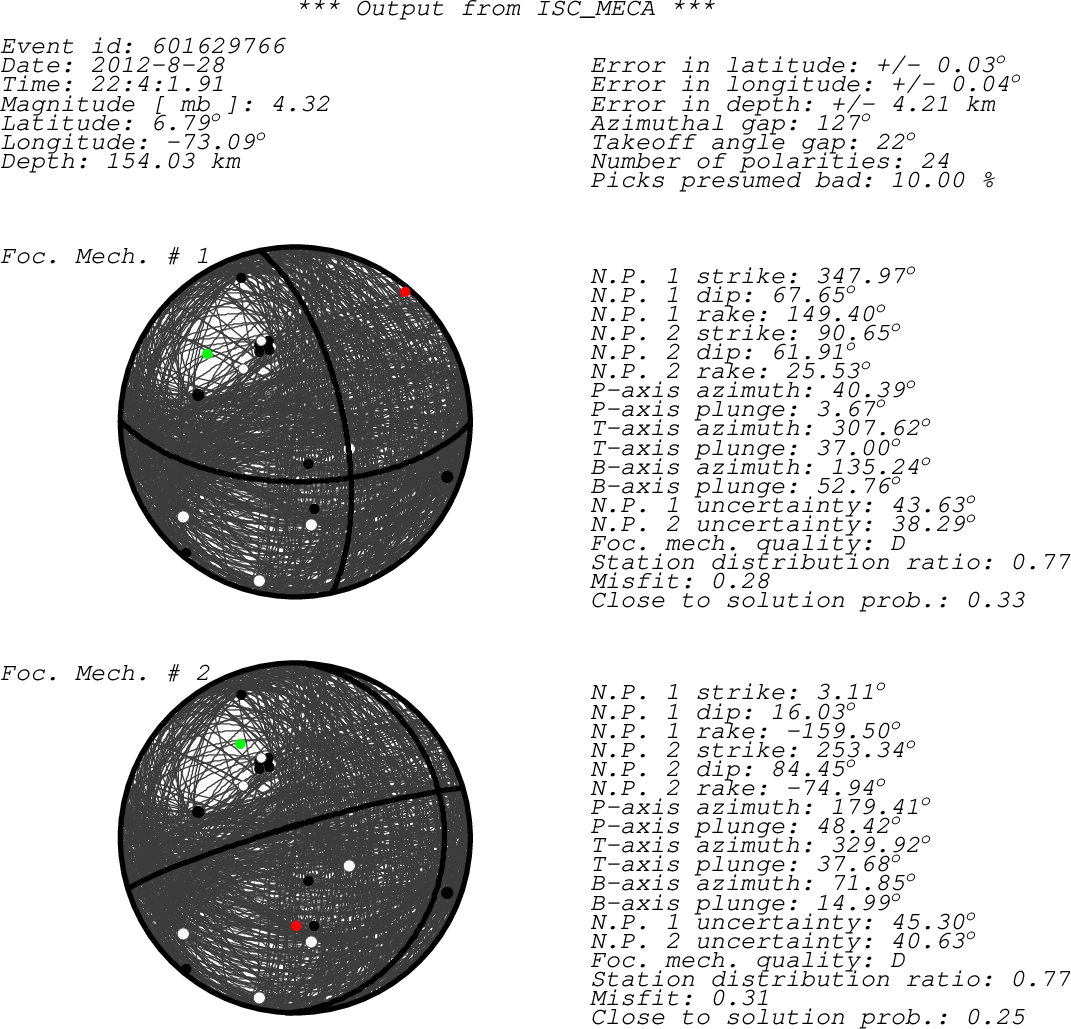

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BRRC H?Z IR D 297.04 0.69 RSNC BRRC TAMC H?Z IR C 105.24 1.34 RSNC TAMC OCAC H?Z IR D 351.14 1.46 RSNC OCAC SDV BHZ IU 10 - a 49.37 3.20 ISC SDV SDV HHZ IU 10 - a 49.37 3.20 ISC SDV URI BHZ CM 01 - a 12.50 5.00 ISC URIC BCIP BHZ CU 00 + a 289.90 7.08 ISC BCIP OTAV BHZ IU 00 + a 219.60 8.42 ISC OTAV MTDJ BHZ CU 00 + a 339.55 12.16 ISC MTDJ LPAZ SHZ GT 10 + a 167.95 23.45 ISC LPAZ WVT BHZ IU 10 - a 337.24 32.17 ISC WVT WVT BHZ IU 00 - a 337.24 32.17 ISC WVT FVM BHZ NM -- + a 335.64 34.80 ISC FVM FVM HHZ NM -- + a 335.64 34.80 ISC FVM CCM BHZ IU 00 + a 334.75 35.21 ISC CCM SFIN BHZ TA -- + a 341.54 35.72 ISC SFIN JFWS BHZ US 00 + a 339.87 39.03 ISC JFWS JFWS BHZ US 10 + a 339.87 39.03 ISC JFWS SUSD BHZ TA -- + a 333.15 43.77 ISC SUSD EYMN BHZ US 10 - a 342.18 43.91 ISC EYMN EYMN BHZ US 00 - a 342.18 43.91 ISC EYMN ULM BHZ CN -- + a 340.24 47.32 ISC ULM R11A BHZ TA -- - a 315.76 49.58 ISC R11A VNA3 BHZ AW -- + a 163.17 88.13 ISC VNA3 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
