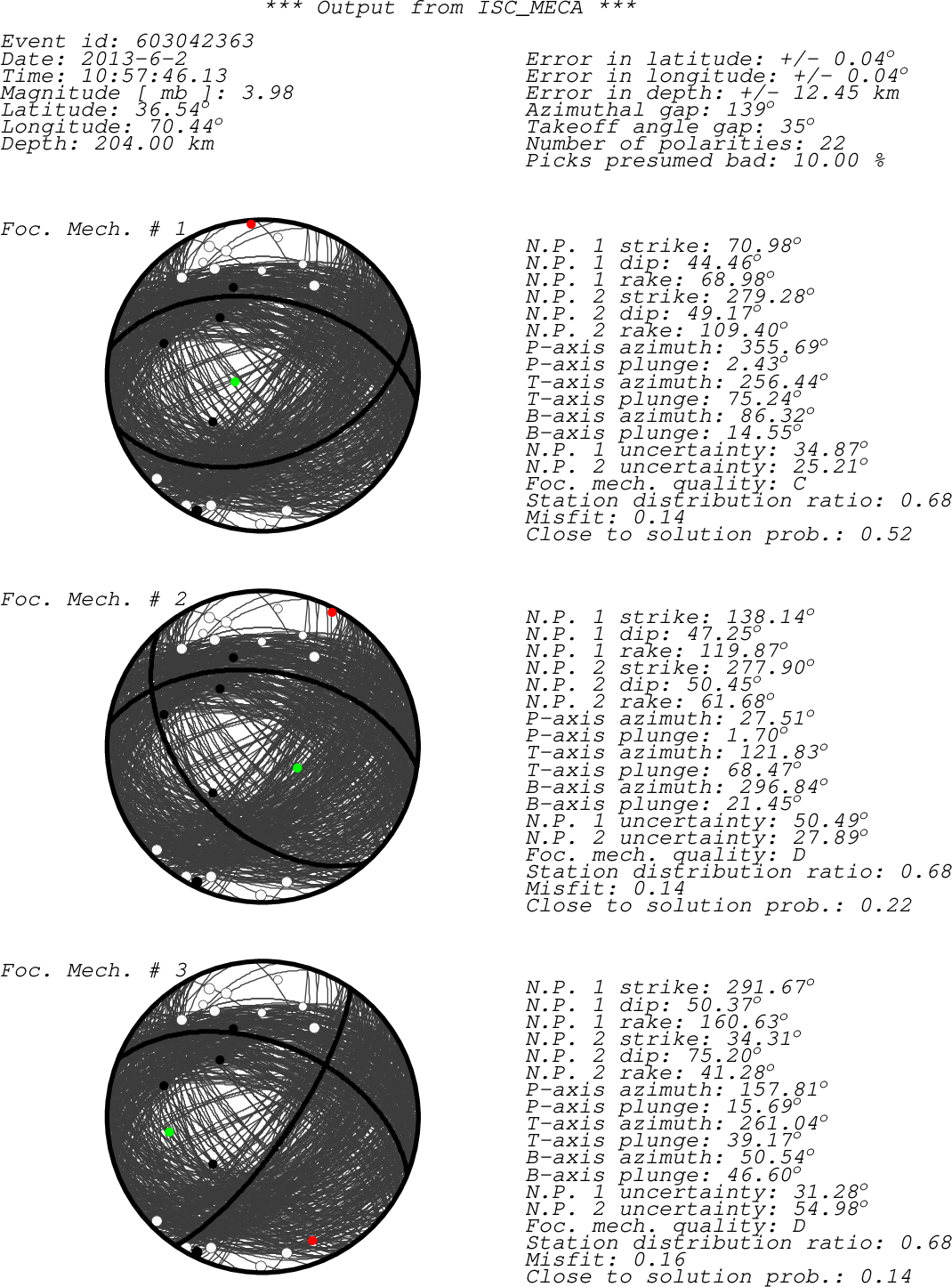

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KBL BHZ IU -- - a 210.10 2.30 ISC KBL CEP ??? IR - 155.63 2.97 MSSP CEP CHCP ??? IR - 140.34 3.69 MSSP CHCP NIL BHZ II 10 - a 140.37 3.70 ISC NIL NIL BHZ II 00 - a 140.37 3.70 ISC NIL THW ??? IR - 163.59 3.89 MSSP THW TAS HHZ CK -- - a 349.79 4.86 ISC TAS SARP ??? IR - 157.50 4.96 MSSP SARP ARSB BHZ KR -- - a 21.65 5.17 ISC ARSB ASAI HHZ KC -- - a 45.56 6.46 ISC ASAI KK31 ??? IR c 0.46 6.55 NNC KK31 KKAR BHZ KZ -- - a 0.46 6.55 ISC KKAR AAK ??? IR c 25.96 6.84 NNC AAK TKM2 ??? IR d 30.36 7.51 NNC TKM2 OTUK ??? IR d 6.23 11.78 NNC OTUK ABKAR BHZ KZ -- - a 332.21 14.83 ISC ABKAR KURK ??? IR d 20.00 15.34 NNC KURK BVA3 ??? IR c 359.87 16.48 NNC BVA3 BRVK BHZ II 10 - a 359.67 16.52 ISC BRVK AKTO ??? IR c 331.07 16.52 NNC AKTO GNI B?Z IR C 287.97 20.45 MOS GNI ARU B?Z IR C 341.78 21.45 MOS ARU NC303 BHZ NO 00 + a 323.32 44.02 ISC NC303 KMBO B?Z IR C 226.92 48.53 MOS KMBO sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
