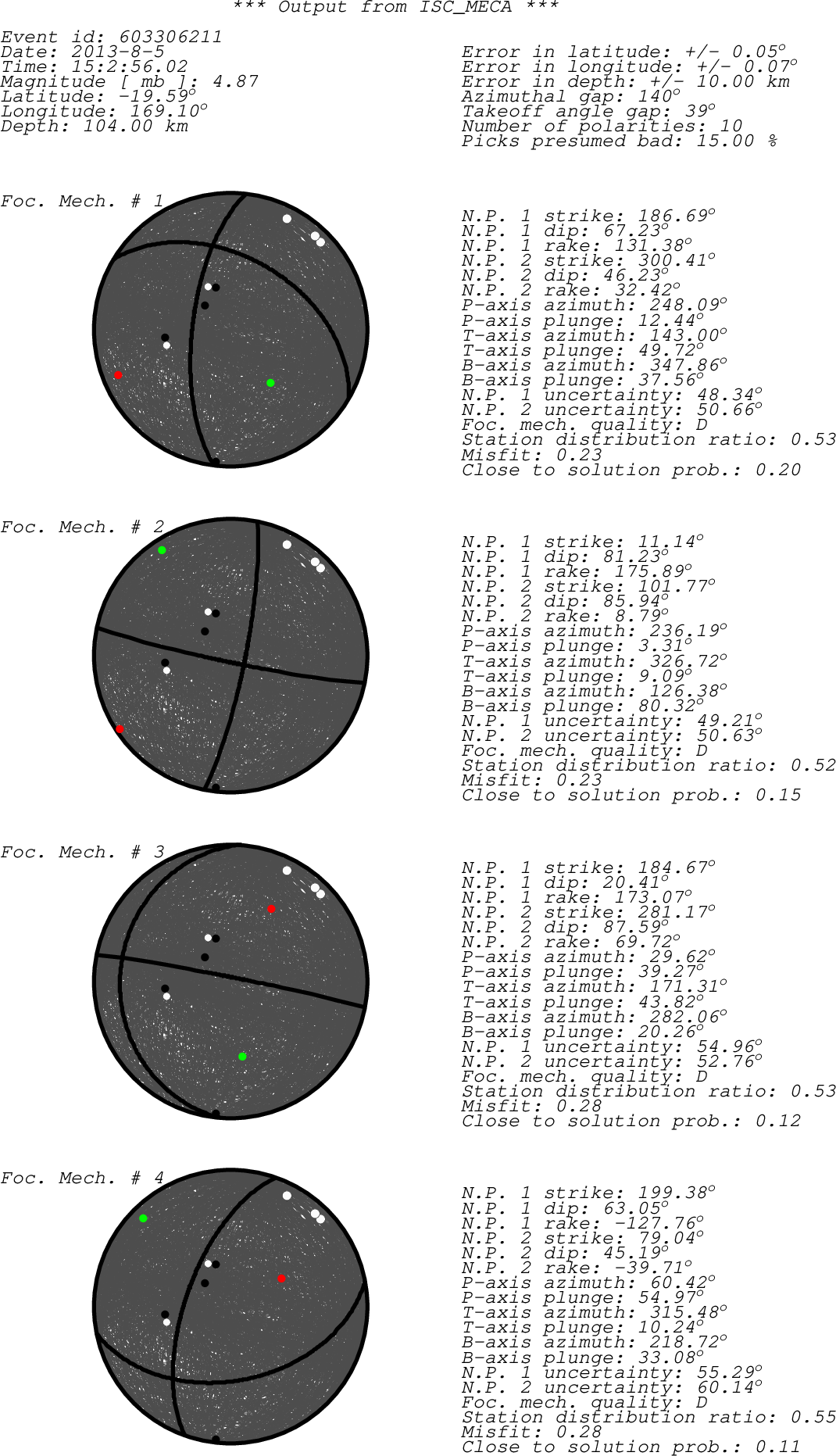

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta PINNC BHZ ND 00 - a 206.90 3.38 ISC PINNC PINNC HHZ ND 00 - a 206.90 3.38 ISC PINNC NOUC BHZ G 00 - a 225.83 3.62 ISC NOUC ONTNC BHZ ND 00 - a 222.00 3.67 ISC ONTNC NFK BHZ AU -- + a 186.20 9.47 ISC NFK WRAB S?Z IR C 263.42 32.67 MOS WRAB AS31 BHZ AU -- - a 256.53 32.92 ISC AS31 MAJO BHZ IU 10 - a 332.35 63.00 ISC MAJO YSS S?Z IR C 341.17 70.37 MOS YSS GTA ??? IR c 313.49 87.27 BJI GTA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
