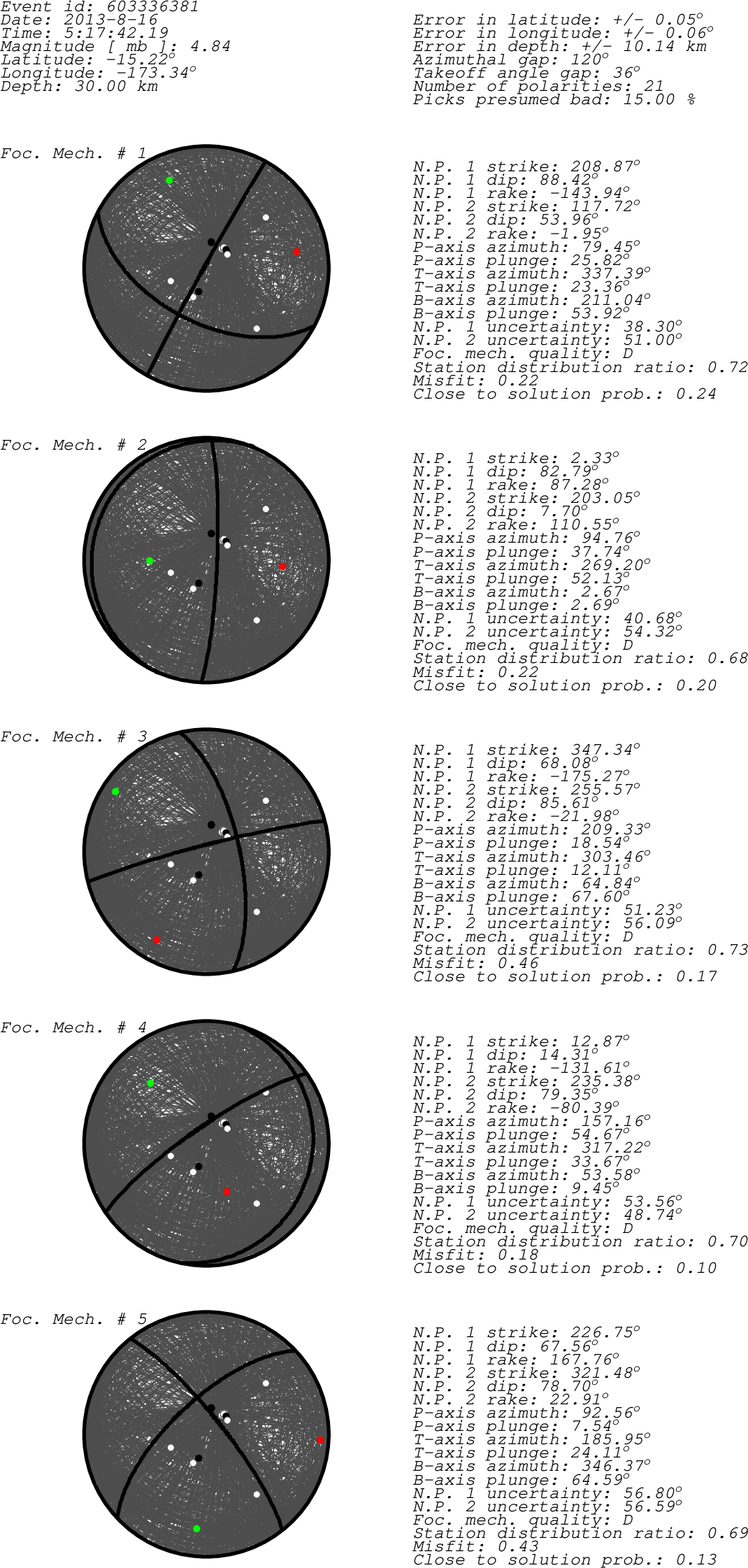

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta AFI BHZ IU 00 - a 49.55 2.00 ISC AFI AFI HHZ IU 10 - a 49.55 2.00 ISC AFI AFI BHZ IU 10 - a 49.55 2.00 ISC AFI NIUE BHZ AU -- - a 140.08 5.04 ISC NIUE WRKA BHZ AU -- - a 249.93 55.31 ISC WRKA CASY BHZ IU 10 - a 204.61 70.60 ISC CASY DUG BHZ US 00 - a 42.85 78.69 ISC DUG HVU HHZ UU 01 - a 41.49 79.53 ISC HVU REDW BHZ IW 00 - a 40.84 81.56 ISC REDW WRH BHZ AK -- + a 10.77 81.76 ISC WRH IMW BHZ IW 00 + a 40.34 81.77 ISC IMW CCB BHZ AK -- + a 10.80 81.97 ISC CCB SMCO BHZ IW 00 + a 45.96 82.14 ISC SMCO BOZ BHZ US 00 - a 38.61 82.22 ISC BOZ PPD BHZ AK -- + a 11.29 83.18 ISC PRP ISCO BHZ US 00 - a 45.87 83.36 ISC ISCO K22A BHZ TA -- - a 42.99 84.02 ISC K22A ABTX BHZ TA -- + a 54.41 84.91 ISC ABTX WHTX BHZ TA -- - a 55.66 86.42 ISC WHTX MAW BHZ AU -- + a 198.58 87.98 ISC MAW DGMT BHZ US 00 - a 38.48 88.05 ISC DGMT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
