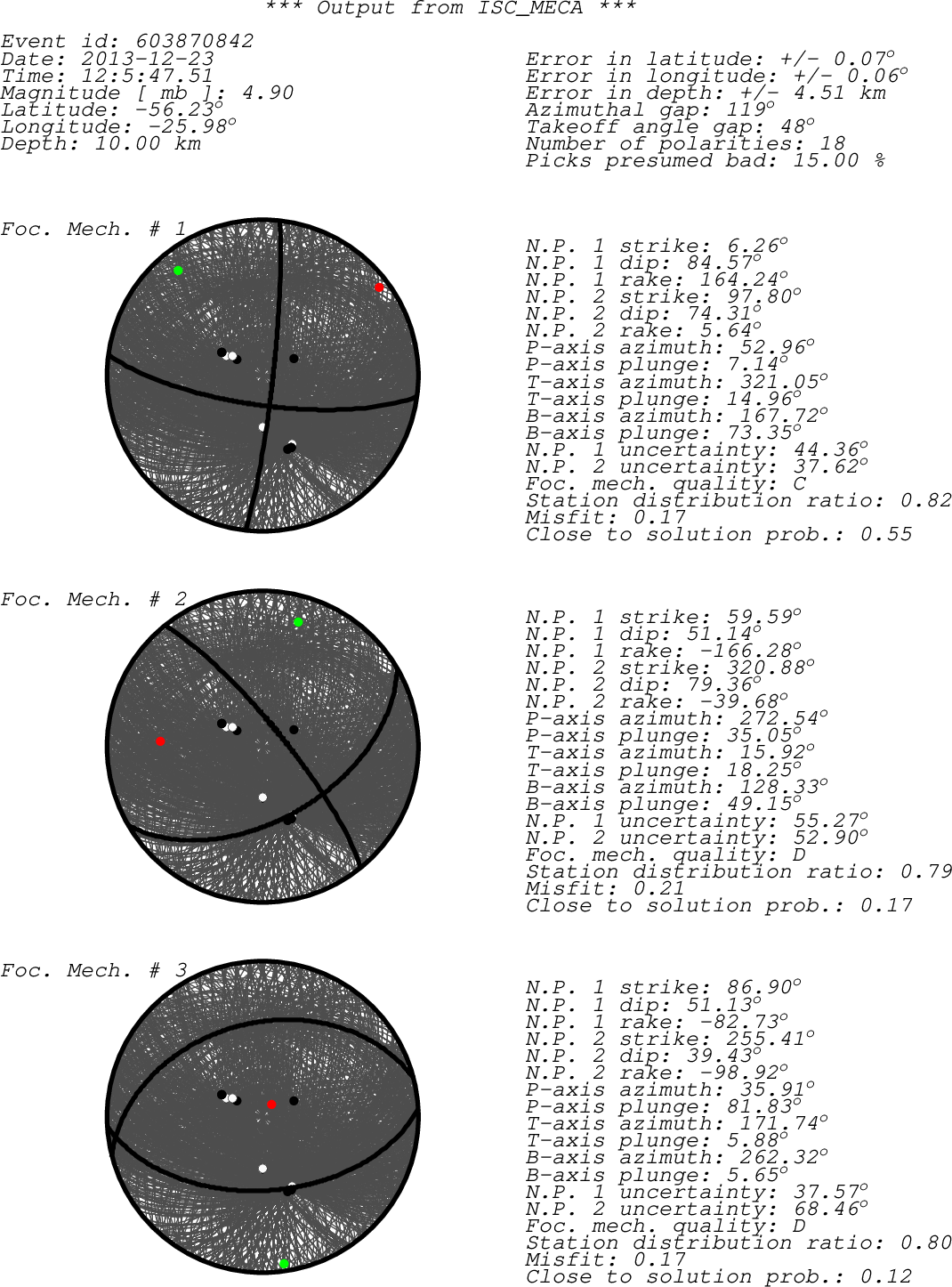

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta VNA3 BHZ AW -- + a 161.45 16.61 ISC VNA3 VNAC6 SHZ AW -- + a 158.73 16.77 ISC VNA2 VNAA3 SHZ AW -- + a 158.72 16.78 ISC VNA2 VNAA2 SHZ AW -- + a 158.71 16.78 ISC VNA2 VNAC4 SHZ AW -- + a 158.73 16.79 ISC VNA2 SNAA B?Z IR D 156.68 18.31 MOS SNAA SNAA BHZ GE -- - a 156.68 18.31 ISC SNAA EFI S?Z IR D 270.11 19.31 MOS EFI QSPA BHZ IU 00 - a 179.98 34.02 ISC QSPA QSPA BHZ IU 10 - a 179.98 34.02 ISC QSPA QSPA HHZ IU 85 - a 179.98 34.02 ISC QSPA QSPA BHZ IU 60 - a 179.98 34.02 ISC QSPA QSPA BHZ IU 70 - a 179.98 34.02 ISC QSPA LVC HHZ IU 10 + a 298.92 45.97 ISC LVC LVC BHZ IU 10 + a 298.92 45.97 ISC LVC LVC BHZ IU 00 + a 298.92 45.97 ISC LVC NNA S?Z IR D 297.62 58.93 MOS NNA OTAV BHZ IU 00 - a 302.63 70.31 ISC OTAV MBAR S?Z IR C 61.74 71.63 MOS MBAR JTS B?Z IR C 301.66 82.18 MOS JTS sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
