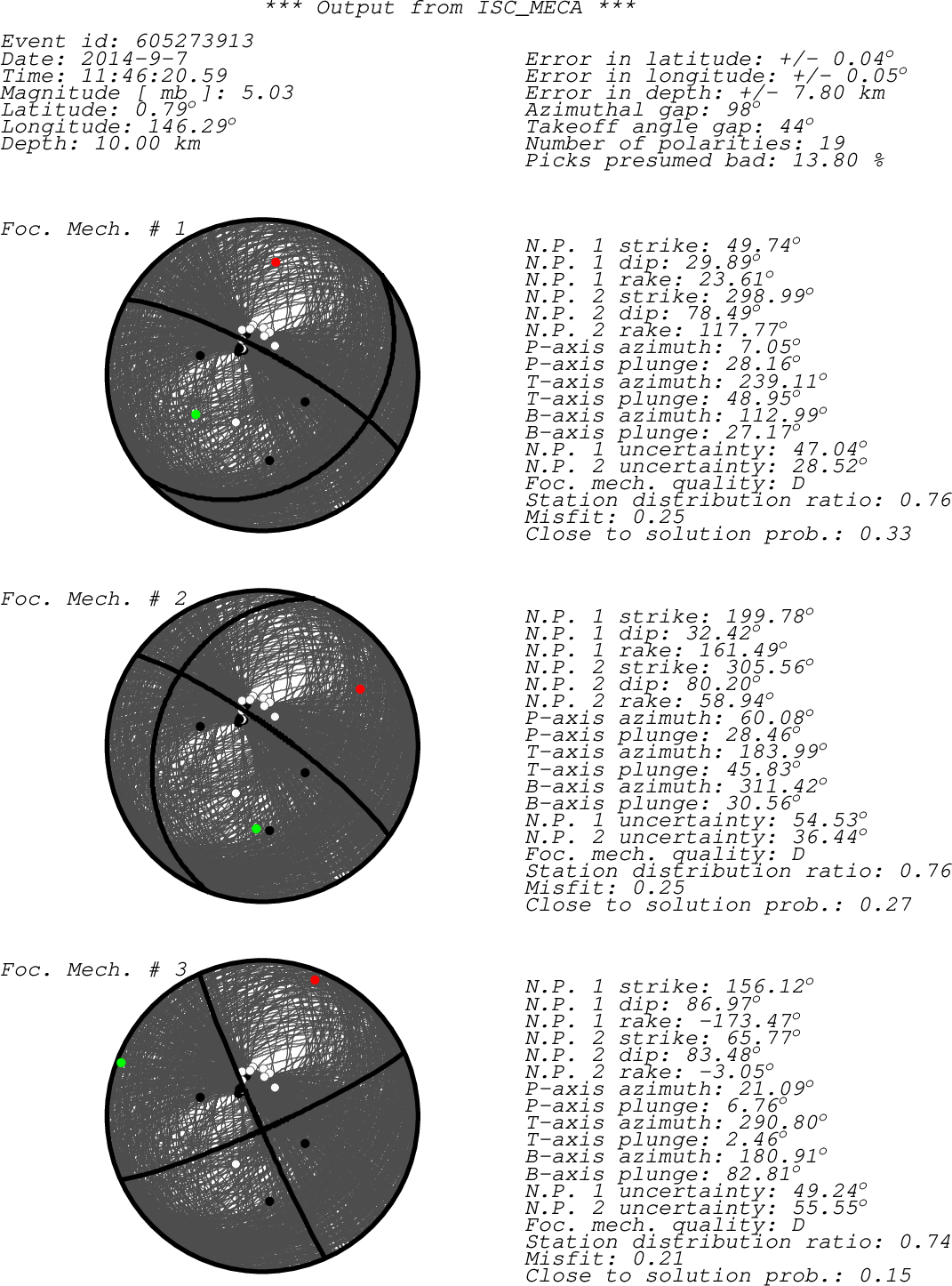

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta PMG S?Z IR C 175.13 10.16 MOS PMG DAV ??? IR c 287.34 21.57 QCP DAV WRAB B?Z IR D 208.98 23.69 MOS WRAB WRA B?Z IR C 208.99 23.70 MOS WRA MSVF S?Z IR C 122.02 36.28 MOS MSVF MAJO S?Z IR D 348.99 36.36 MOS MAJO TJN S?Z IR D 335.71 39.52 MOS TJN VLA S?Z IR D 344.82 44.08 MOS VLA KUR S?Z IR D 1.60 44.28 MOS KUR PET S?Z IR D 9.31 53.07 MOS PET HIA S?Z IR C 338.61 53.40 MOS HIA ULN B?Z IR D 329.81 57.89 MOS ULN SEY S?Z IR D 3.15 62.16 MOS SEY DGZ S?Z IR C 323.68 69.75 MOS DGZ MKAR B?Z IR C 319.48 71.88 MOS MKAR KURK S?Z IR D 322.58 75.40 MOS KURK AAK S?Z IR C 313.78 76.13 MOS AAK COLA S?Z IR D 23.37 79.23 MOS COLA BRVK B?Z IR C 323.63 80.98 MOS BRVK sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
