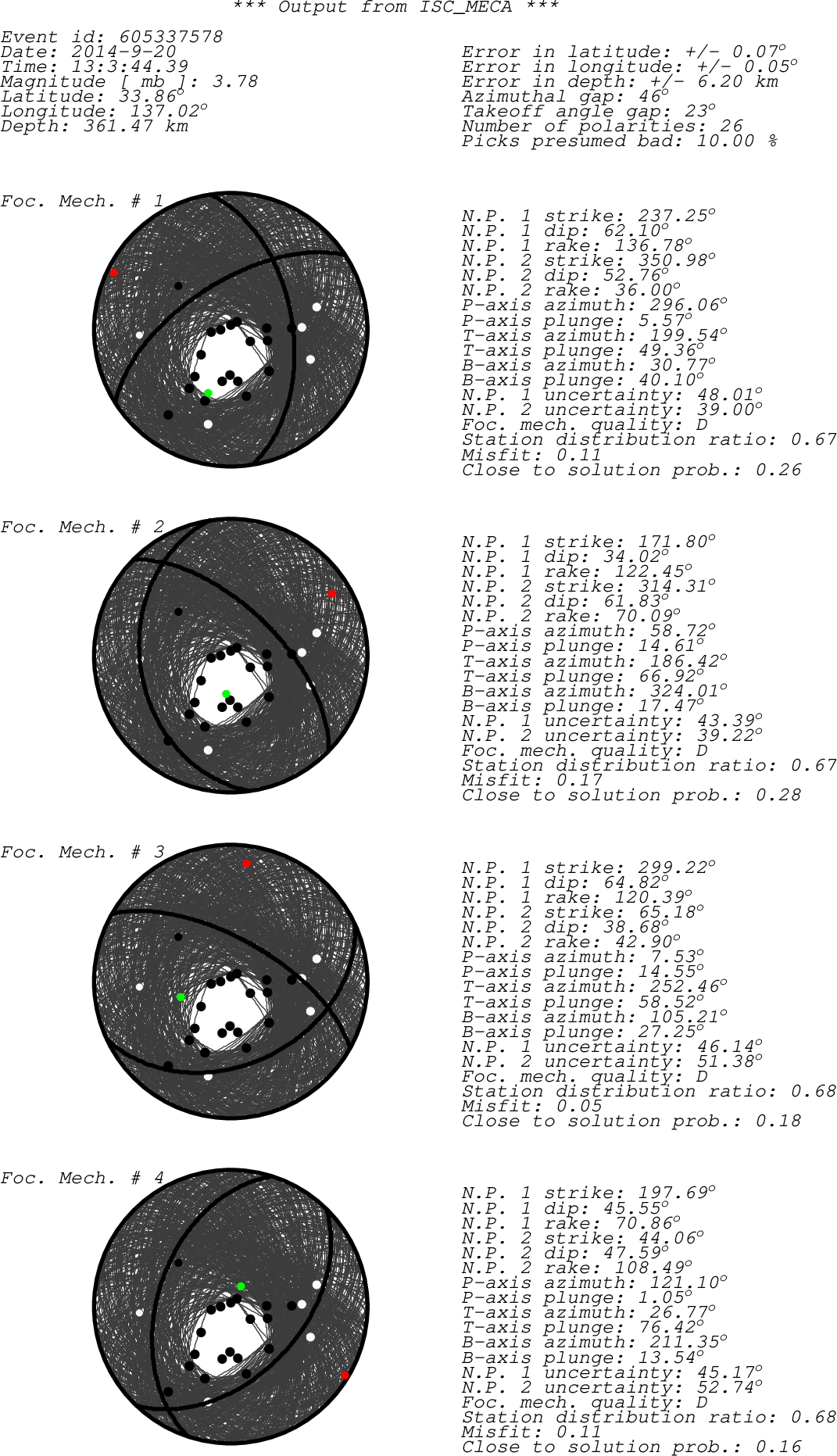

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta TTO2 ??? IR C 176.61 0.13 JMA TTO2 TTO1 ??? IR C 219.32 0.31 JMA TTO1 TTO3 ??? IR C 89.53 0.32 JMA TTO3 TK02 ??? IR C 81.87 0.62 JMA TK02 JKN2 ??? IR C 301.59 0.72 JMA JKN2 JTNC ??? IR C 268.32 1.17 JMA JTNC JWY ??? IR C 287.16 1.24 JMA JWY JSG BHZ JP -- + a 49.49 1.26 ISC JSG INU BHZ G 00 + a 0.34 1.48 ISC INU JYTA ??? IR C 352.41 1.74 JMA JYTA JGF BHZ JP -- + a 8.95 1.76 ISC JGF JWT ??? IR C 317.20 1.95 JMA JWT JWT BHZ JP -- + a 317.22 1.95 ISC JWT JYN ??? IR C 37.18 2.06 JMA JYN JAI ??? IR C 268.88 2.14 JMA JAI JKG ??? IR C 347.04 2.48 JMA JKG JMN ??? IR D 267.97 2.62 JMA JMN JRY ??? IR C 35.20 2.65 JMA JRY MAJO BHZ IU 10 + a 19.59 2.85 ISC MAJO MAJO HHZ IU 10 + a 19.59 2.85 ISC MAJO JHS BHZ JP -- - a 290.52 3.42 ISC JHS JTO ??? IR D 255.36 3.67 JMA JTO JSD BHZ JP -- - a 13.19 4.29 ISC JSD JMM BHZ JP -- + a 36.37 5.04 ISC JMM WHN ??? IR d 266.43 19.46 BJI WHN KURK BHZ II 10 + a 310.20 45.15 ISC KURK sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
