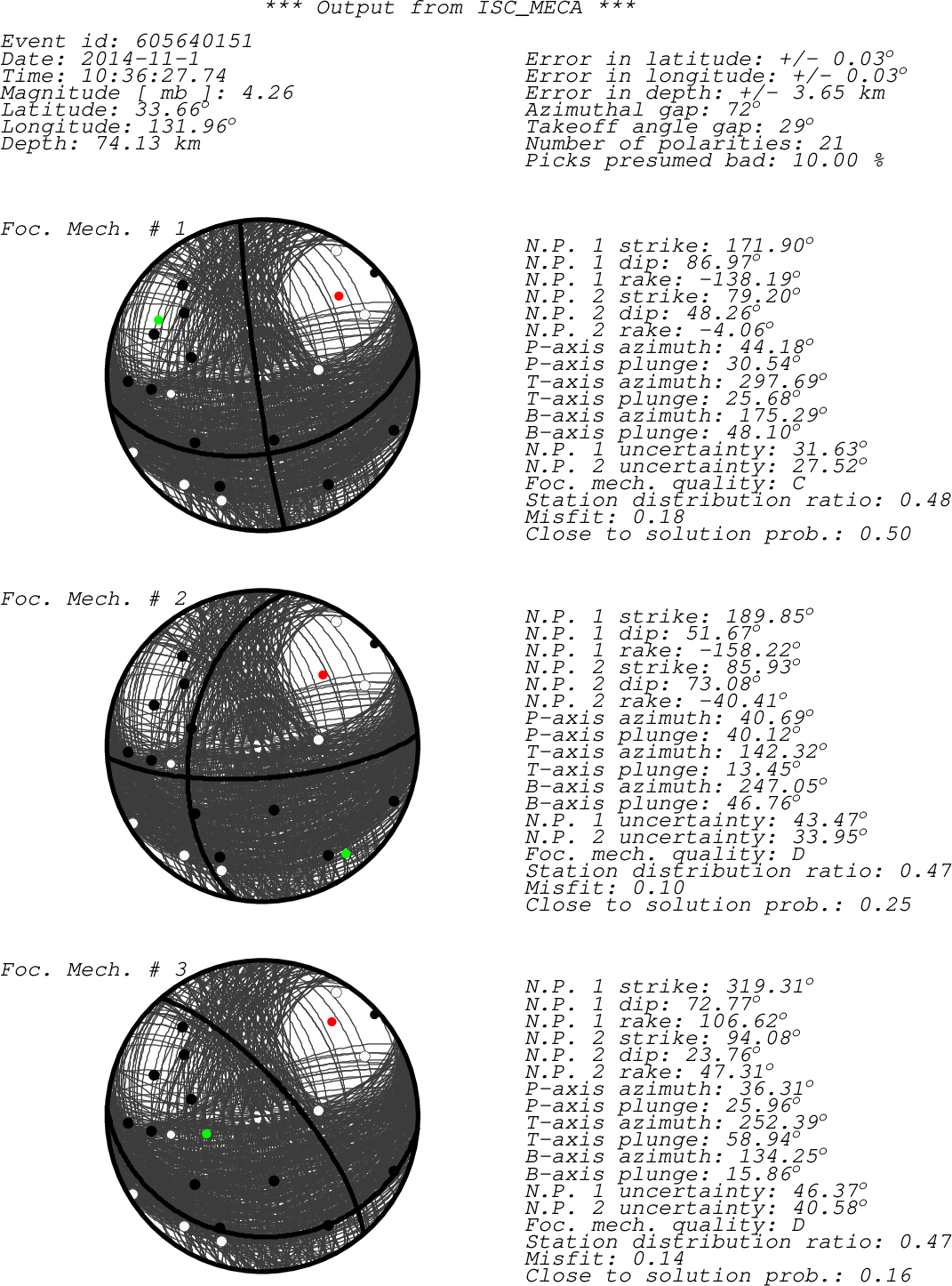

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta JKI ??? IR D 264.53 0.33 JMA JKI JKD ??? IR C 350.02 0.40 JMA JKD JNA ??? IR C 103.58 0.45 JMA JNA JHM ??? IR C 44.98 0.67 JMA JHM UWA2 ??? IR C 128.60 0.72 JMA UWA2 JET ??? IR C 82.53 0.92 JMA JET JKU ??? IR C 110.61 0.99 JMA JKU JNU BHZ JP -- - a 239.54 1.05 ISC JNU JHT ??? IR C 21.02 1.07 JMA JHT JTO ??? IR C 138.30 1.07 JMA JTO JHGM ??? IR C 329.05 1.30 JMA JHGM JGT2 ??? IR D 17.92 1.47 JMA JGT2 JMN BHZ JP -- + a 87.06 1.60 ISC JMN JHS BHZ JP -- - a 35.34 1.64 ISC JHS JTU BHZ JP -- + a 292.78 2.29 ISC JTU JSU BHZ JP -- - a 210.98 2.50 ISC JSU MAJO BHZ IU 00 - a 58.93 5.87 ISC MAJO MAJO BHZ IU 10 - a 58.93 5.87 ISC MAJO MAJO HHZ IU 10 - a 58.93 5.87 ISC MAJO JSD BHZ JP -- + a 47.73 6.72 ISC JSD GYA ??? IR d 258.55 23.00 BJI GYA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
