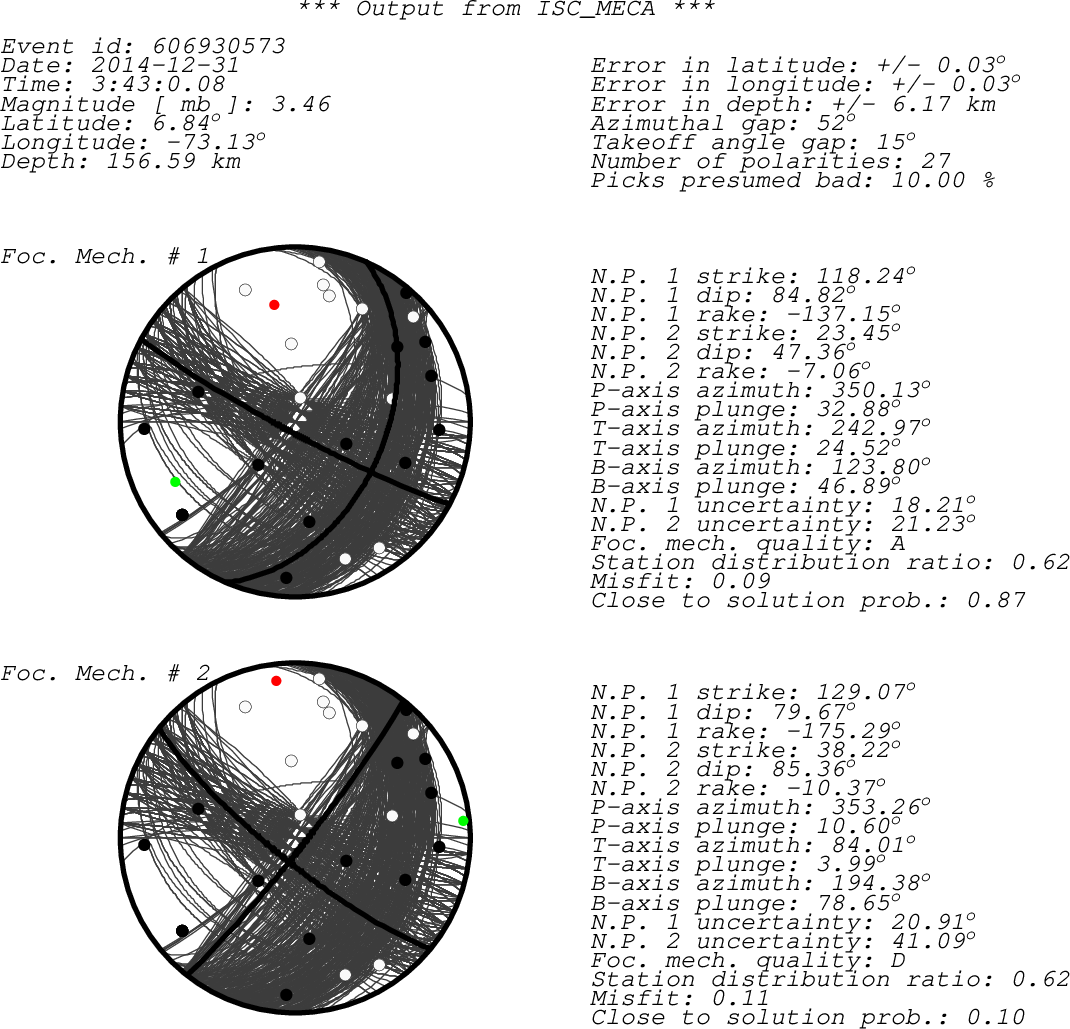

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BARC E?Z IR D 192.52 0.26 RSNC BARC BRRC H?Z IR C 294.23 0.64 RSNC BRRC PAMC S?Z IR C 40.71 0.65 RSNC PAMC RUSC H?Z IR D 177.40 0.95 RSNC RUSC PTBC H?Z IR D 257.17 1.35 RSNC PTBC TAMC H?Z IR C 106.95 1.39 RSNC TAMC OCAC H?Z IR C 352.15 1.40 RSNC OCAC ZARC H?Z IR C 290.65 1.83 RSNC ZARC NORC H?Z IR C 233.80 2.15 RSNC NORC CHIC H?Z IR D 195.34 2.28 RSNC CHIC ROSC B?Z IR D 210.87 2.32 RSNC ROSC VILC S?Z IR D 191.78 2.77 RSNC VILC PTGC H?Z IR D 159.35 2.81 RSNC PTGC CBOC H?Z IR C 251.41 3.03 RSNC CBOC DBBC S?Z IR C 273.40 3.07 RSNC DBBC ARGC H?Z IR D 339.77 3.19 RSNC ARGC SDV BHZ IU 00 + a 50.46 3.19 ISC SDV SDV HHZ IU 10 + a 50.46 3.19 ISC SDV SDV BHZ IU 10 + a 50.46 3.19 ISC SDV SDV B?Z IR C 50.44 3.20 RSNC SDV ELOV B?Z IR C 87.32 3.62 RSNC ELOV SJCC H?Z IR D 326.33 3.65 RSNC SJCC PLMC H?Z IR C 238.64 3.68 RSNC PLMC CRJC H?Z IR C 3.31 4.16 RSNC CRJC YOTC H?Z IR D 228.59 4.28 RSNC YOTC MACC H?Z IR D 188.79 4.72 RSNC MACC BBAC H?Z IR C 220.79 6.31 RSNC BBAC sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
