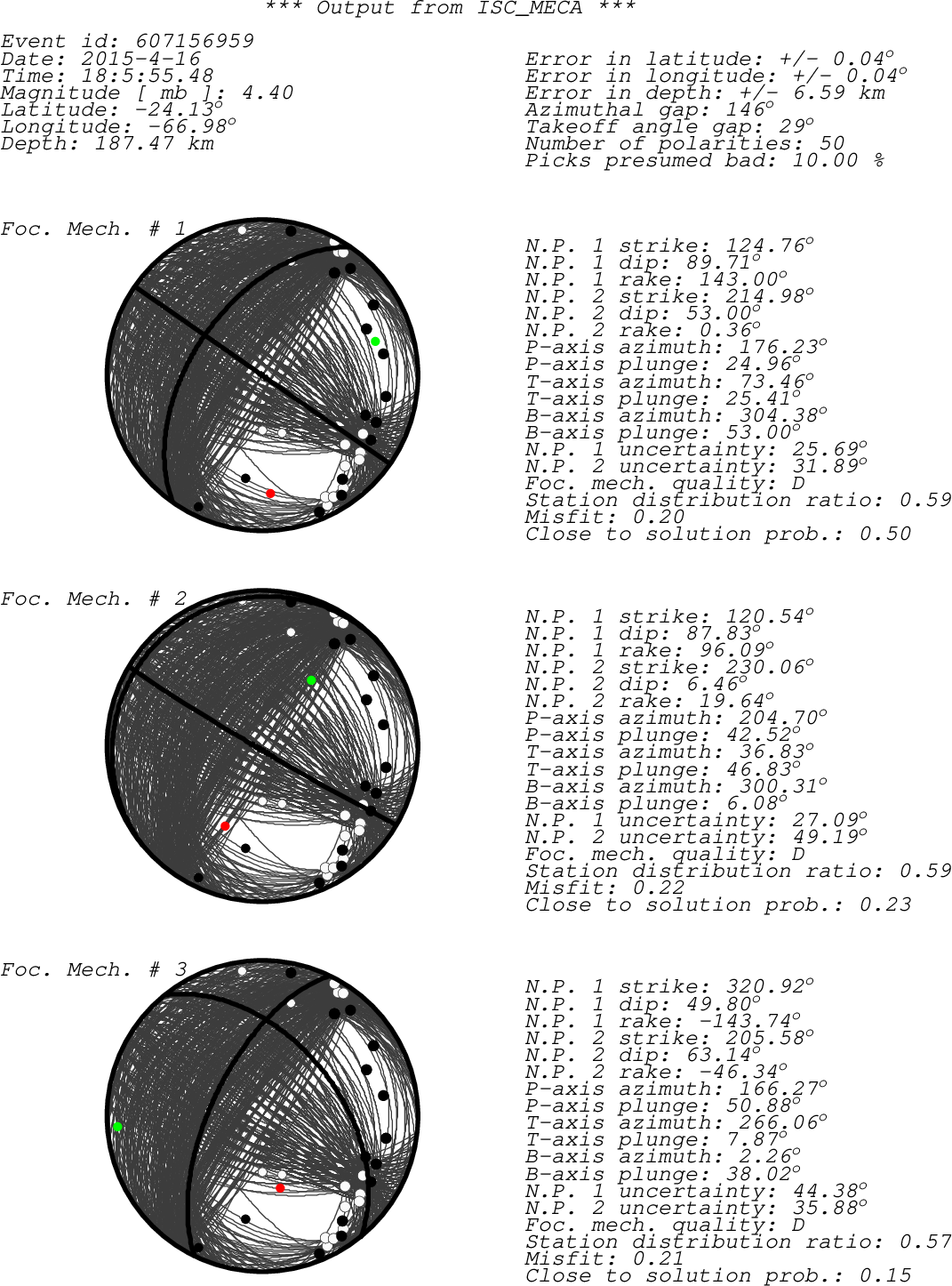

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta LVC BHZ IU 00 - a 310.09 2.33 ISC LVC LVC BHZ IU 10 - a 310.09 2.33 ISC LVC PB15 HHZ CX -- + a 291.43 2.46 ISC PB15 GO02 B?Z IR C 246.04 2.58 GUC GO02 GO02 BHZ C -- + a 246.04 2.58 ISC GO02 PB06 HHZ CX -- + a 300.31 2.77 ISC PB06 PB06 BHZ CX -- - a 300.31 2.77 ISC PB06 PB09 HHZ CX -- - a 317.71 3.12 ISC PB09 PB09 BHZ CX -- - a 317.71 3.12 ISC PB09 PB14 HHZ CX -- + a 260.31 3.16 ISC PB14 PB05 H?Z IR C 292.65 3.22 GUC PB05 PB05 HHZ CX -- + a 292.65 3.22 ISC PB05 PB03 HHZ CX -- - a 308.56 3.29 ISC PB03 AC02 H?Z IR C 215.29 3.32 GUC AC02 AC02 BHZ C1 -- + a 215.31 3.32 ISC AC02 AC02 HHZ C1 -- + a 215.31 3.32 ISC AC02 PB10 H?Z IR C 279.92 3.33 GUC PB10 PB10 HHZ CX -- + a 279.92 3.33 ISC PB10 PB04 HHZ CX -- + a 300.94 3.42 ISC PB04 PB07 HHZ CX -- - a 311.24 3.59 ISC PB07 AC01 BHZ C1 -- + a 237.73 3.84 ISC AC01 AC01 HHZ C1 -- + a 237.73 3.84 ISC AC01 PB01 HHZ CX -- - a 322.54 3.85 ISC PB01 PB01 BHZ CX -- + a 322.54 3.85 ISC PB01 PB08 HHZ CX -- - a 332.72 4.45 ISC PB08 PB08 BHZ CX -- - a 332.72 4.45 ISC PB08 GO03 BHZ C -- + a 219.65 4.52 ISC GO03 HMBCX HHZ CX -- - a 324.38 4.68 ISC HMBC PB11 HHZ CX -- - a 329.79 5.01 ISC PB11 PB11 BHZ CX -- - a 329.79 5.01 ISC PB11 PSGCX HHZ CX -- + a 326.53 5.37 ISC PSGCX AC05 BHZ C1 -- - a 211.46 5.54 ISC AC05 MNMCX BHZ CX -- + a 333.48 5.54 ISC MNMC MNMCX HHZ CX -- - a 333.48 5.54 ISC MNMC LCO BHZ IU 10 - a 213.59 5.89 ISC LCO PB16 HHZ CX -- + a 337.33 6.23 ISC PB16 GO04 BHZ C -- - a 208.61 6.91 ISC GO04 ZON HHZ WA -- + a 191.13 7.54 ISC ZON LPAZ SHZ GT 10 - a 351.94 7.88 ISC LPAZ LPAZ BHZ GT 00 - a 351.94 7.88 ISC LPAZ CO02 HHZ C1 -- + a 205.91 7.89 ISC CO02 CO02 BHZ C1 -- + a 205.91 7.89 ISC CO02 SAML BHZ IU 10 - a 14.16 15.53 ISC SAML SAML BHZ IU 00 - a 14.16 15.53 ISC SAML PLCA SHZ GT 10 - a 189.40 16.82 ISC PLCA PLCA BHZ GT 00 + a 189.40 16.82 ISC PLCA VNA3 BHZ AW -- - a 161.06 57.02 ISC VNA3 QSPA HHZ IU 85 - a 180.04 66.07 ISC QSPA QSPA BHZ IU 70 - a 180.04 66.07 ISC QSPA QSPA BHZ IU 10 - a 180.04 66.07 ISC QSPA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
