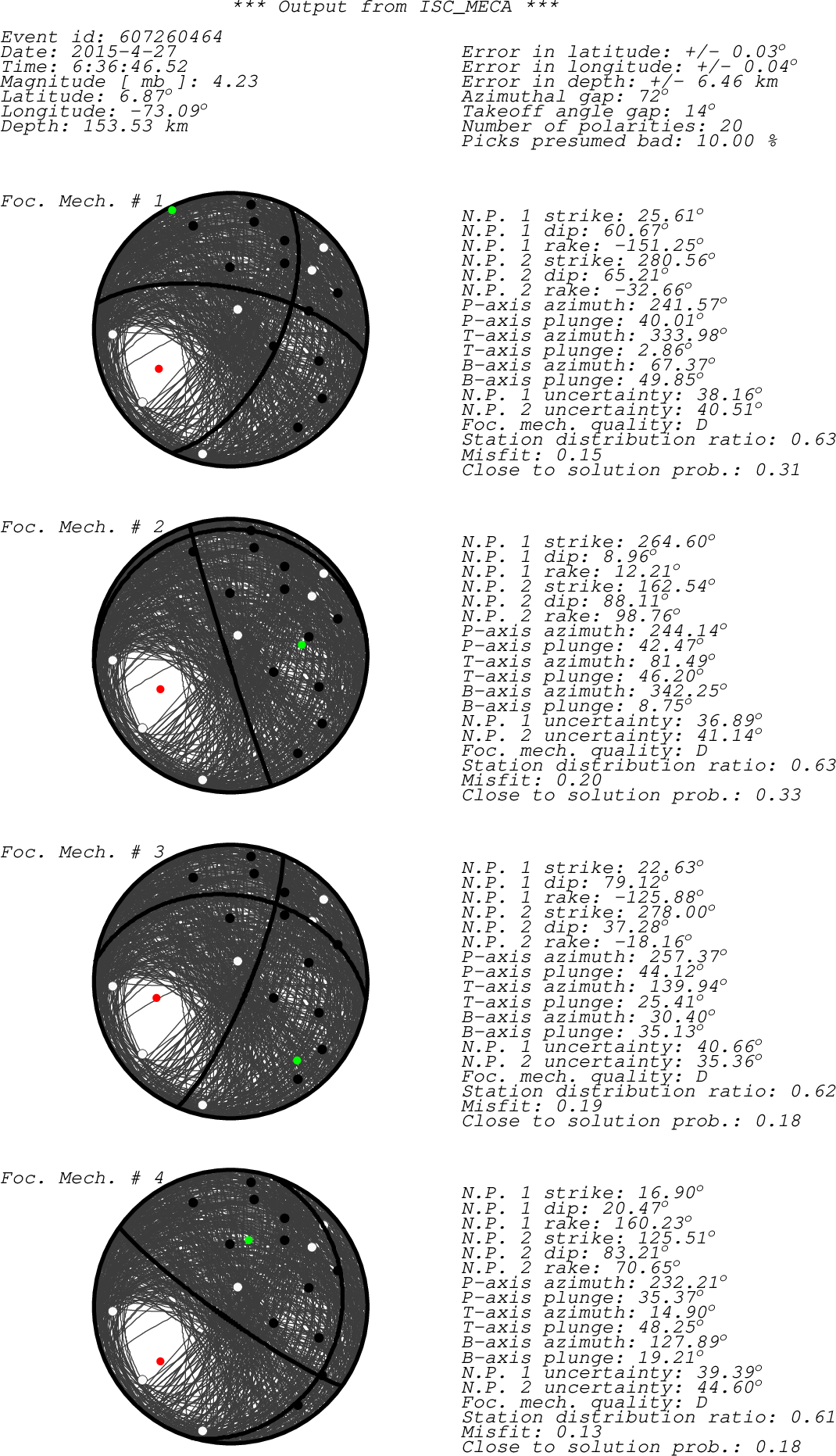

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BARC E?Z IR D 198.69 0.29 RSNC BARC BRRC H?Z IR C 290.99 0.66 RSNC BRRC RUSC H?Z IR C 179.67 0.97 RSNC RUSC PTBC H?Z IR C 256.54 1.40 RSNC PTBC SPBC H?Z IR C 219.01 1.56 RSNC SPBC ZARC H?Z IR C 289.55 1.86 RSNC ZARC NORC H?Z IR D 233.87 2.19 RSNC NORC ROSC B?Z IR C 211.35 2.36 RSNC ROSC VILC S?Z IR C 192.43 2.80 RSNC VILC PTGC H?Z IR C 160.24 2.82 RSNC PTGC CBOC H?Z IR C 251.20 3.07 RSNC CBOC SDV BHZ IU 00 - a 50.38 3.15 ISC SDV SDV BHZ IU 10 - a 50.38 3.15 ISC SDV SDV HHZ IU 10 - a 50.38 3.15 ISC SDV MOTC H?Z IR C 306.79 3.18 RSNC MOTC ELOV B?Z IR D 87.68 3.58 RSNC ELOV SJCC H?Z IR C 325.63 3.65 RSNC SJCC YOTC H?Z IR D 228.68 4.33 RSNC YOTC MACC H?Z IR C 189.19 4.75 RSNC MACC URIC H?Z IR D 12.62 4.92 RSNC URIC sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
