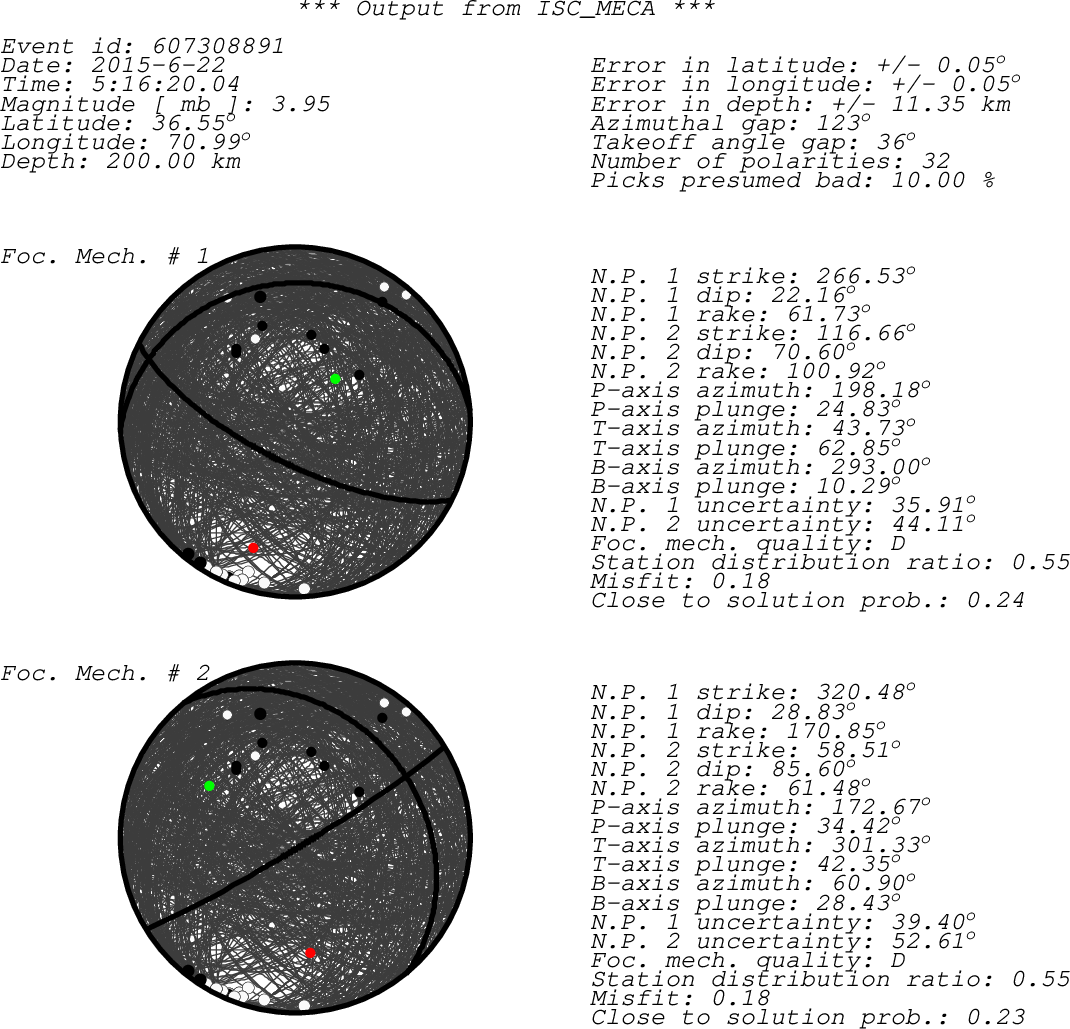

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta CEP ??? IR + 164.21 2.82 MSSP CEP ARSB BHZ KR -- - a 17.32 5.02 ISC ARSB AML HHZ KN -- - a 19.78 5.96 ISC AML AML BHZ KN -- - a 19.78 5.96 ISC AML MNAS BHZ KR -- - a 10.65 6.05 ISC MNAS EKS2 HHZ KN -- - a 18.56 6.47 ISC EKS2 EKS2 BHZ KN -- - a 18.56 6.47 ISC EKS2 KKAR BHZ KZ -- - a 356.94 6.56 ISC KKAR AAK ??? IR d 22.91 6.66 NNC AAK AAK B?Z IR D 22.91 6.66 MOS AAK AAK BHZ II 10 - a 22.91 6.66 ISC AAK AAK BHZ II 00 - a 22.91 6.66 ISC AAK KBK BHZ KN -- - a 25.39 6.82 ISC KBK ULHL HHZ KN -- + a 33.95 6.99 ISC ULHL ULHL BHZ KN -- + a 33.95 6.99 ISC ULHL BOOM BHZ KR -- - a 31.30 7.06 ISC BOOM CHM BHZ KN -- + a 23.05 7.06 ISC CHMS USP HHZ KN -- - a 20.82 7.23 ISC USP TKM2 ??? IR d 27.73 7.29 NNC TKM2 TKM2 BHZ KN -- - a 27.73 7.29 ISC TKM2 TKM2 HHZ KN -- - a 27.73 7.29 ISC TKM2 KDJ BHZ KR -- + a 38.89 7.36 ISC KDJ MDOK ??? IR d 33.32 8.08 NNC MDOK PDGK ??? IR d 41.32 9.40 NNC PDGK MK31 B?Z IR C 35.95 13.26 MOS MK31 AB31 ??? IR c 331.07 15.04 NNC AB31 ABKAR BHZ KZ -- - a 331.07 15.04 ISC ABKAR BRVK S?Z IR C 358.50 16.52 MOS BRVK AKTO ??? IR c 330.10 16.73 NNC AKTO DGZ B?Z IR C 37.08 17.75 MOS DGZ ARU B?Z IR C 341.04 21.59 MOS ARU BELG S?Z IR C 321.25 22.85 MOS BELG KIRV B?Z IR D 334.13 26.19 MOS KIRV OBN S?Z IR C 319.34 29.90 MOS OBN NRIK S?Z IR C 10.40 34.08 MOS NRIK KLR S?Z IR C 53.83 45.12 MOS KLR TIXI S?Z IR C 22.00 45.73 MOS TIXI sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
