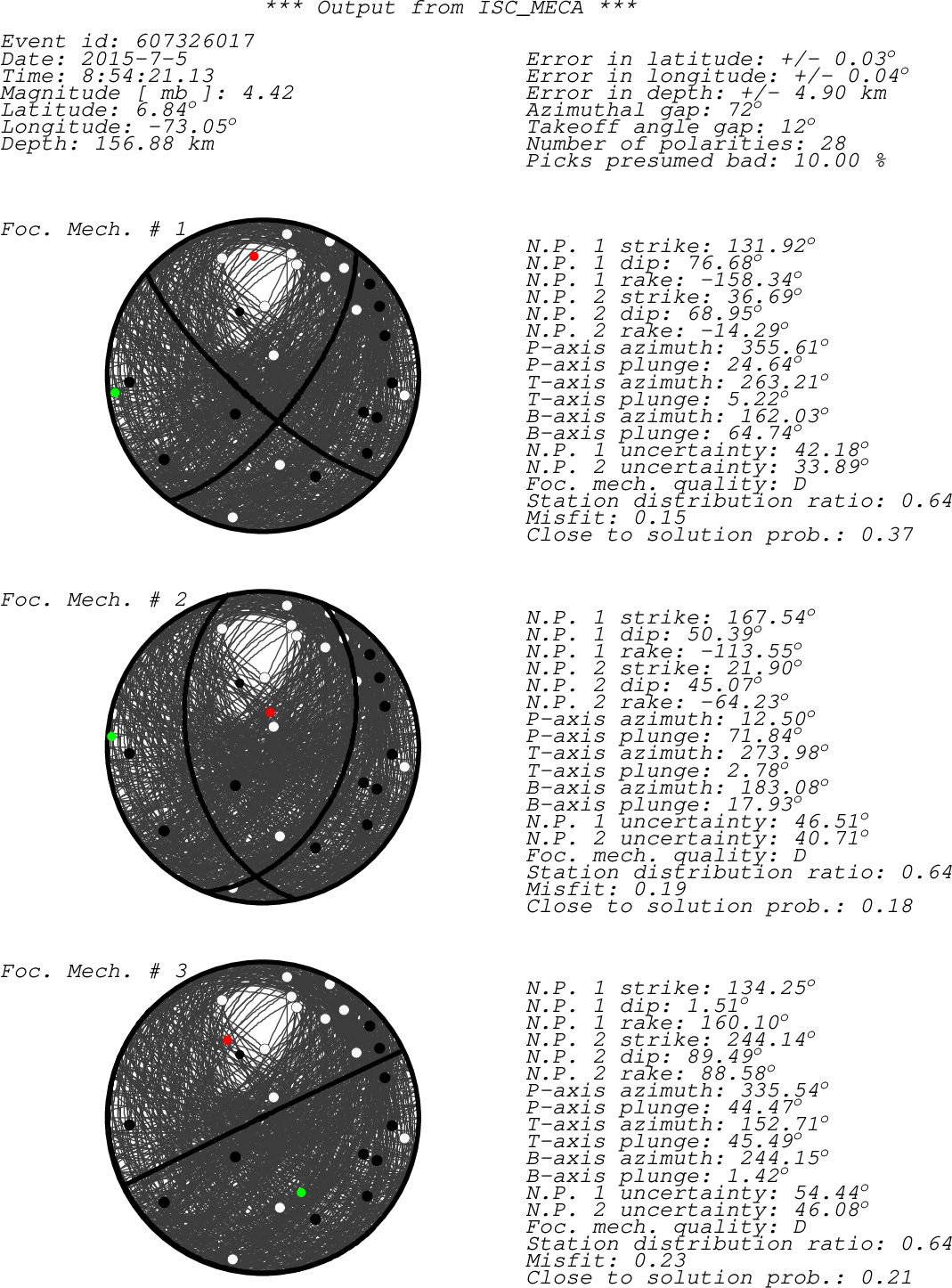

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BARC E?Z IR D 207.63 0.28 RSNC BARC PAMC E?Z IR C 35.26 0.60 RSNC PAMC RUSC H?Z IR D 181.93 0.94 RSNC RUSC OCA BHZ CM 01 - a 349.15 1.41 ISC OCAC ZARC H?Z IR C 289.90 1.91 RSNC ZARC SMLC H?Z IR C 332.61 2.19 RSNC SMLC NORC H?Z IR D 234.99 2.21 RSNC NORC CHIC H?Z IR D 197.16 2.30 RSNC CHIC ROSC B?Z IR D 212.46 2.36 RSNC ROSC UREC H?Z IR C 290.30 2.62 RSNC UREC PTGC H?Z IR D 160.79 2.78 RSNC PTGC VILC S?Z IR D 193.29 2.79 RSNC VILC CBOC H?Z IR C 251.88 3.10 RSNC CBOC SDV BHZ IU 00 - a 49.58 3.14 ISC SDV SDV BHZ IU 10 + a 49.58 3.14 ISC SDV SDV HHZ IU 10 + a 49.58 3.14 ISC SDV SDV B?Z IR C 49.56 3.14 RSNC SDV DBBC S?Z IR C 273.36 3.14 RSNC DBBC MOTC H?Z IR C 306.77 3.23 RSNC MOTC ELOV B?Z IR C 87.25 3.55 RSNC ELOV ORTC H?Z IR D 216.97 3.64 RSNC ORTC PLMC H?Z IR C 239.26 3.75 RSNC PLMC YOTC H?Z IR C 229.27 4.34 RSNC YOTC MACC H?Z IR D 189.69 4.73 RSNC MACC URI BHZ CM 01 - a 12.16 4.94 ISC URIC FLOC H?Z IR D 206.51 5.83 RSNC FLOC AZU H?Z IR D 277.94 7.23 RSNC AZU ULM BHZ CN -- + a 340.19 47.29 ISC ULM sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
