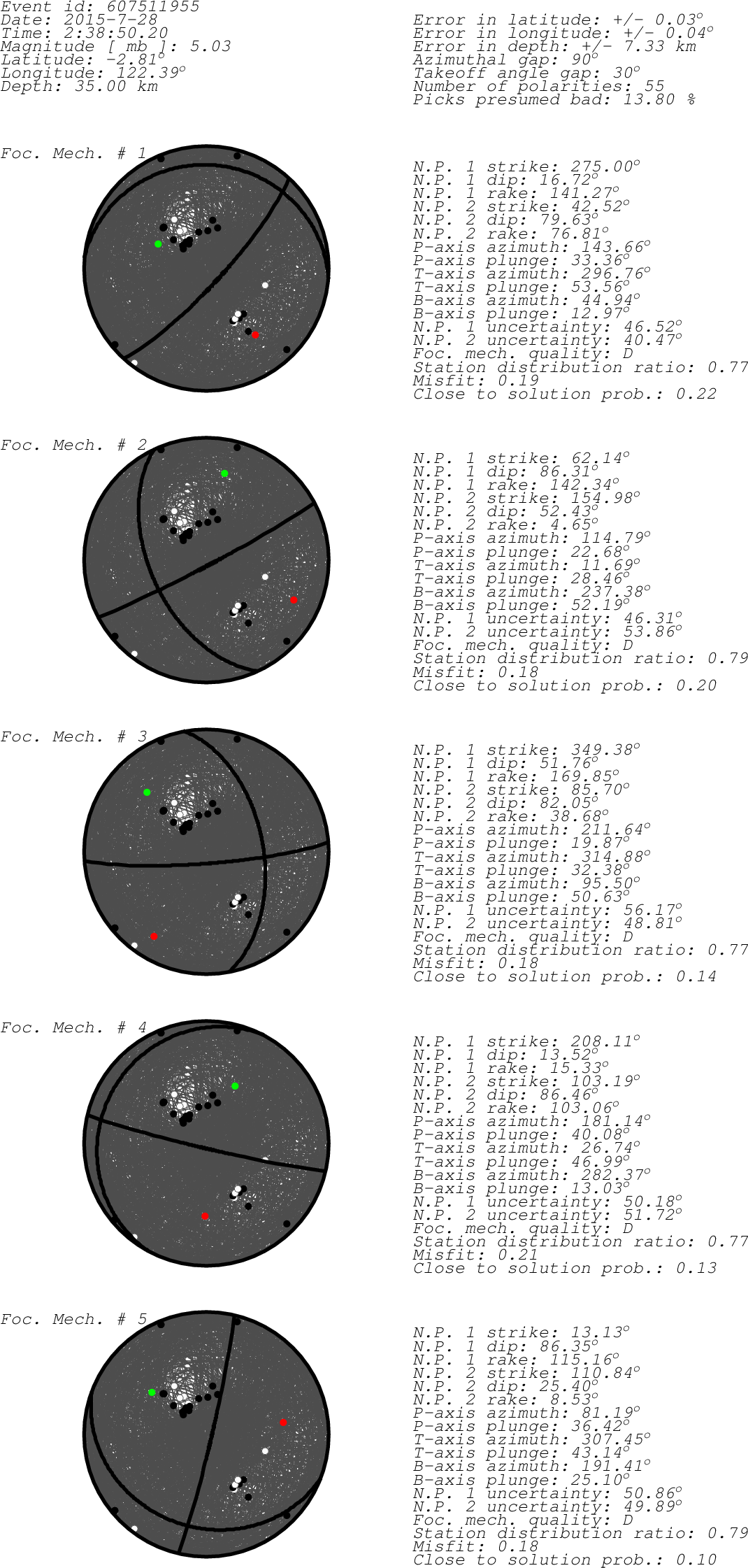

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta KAPI BHZ II 00 + a 230.11 3.42 ISC KAPI KAPI BHZ II 10 + a 230.11 3.42 ISC KAPI TOLI2 SHZ GE -- + a 337.60 4.21 ISC TOLI2 TOLI2 BHZ GE -- + a 337.60 4.21 ISC TOLI2 PLAI BHZ GE -- - a 217.28 7.53 ISC PLAI KCP ??? IR c 15.46 10.12 MAN KCP KDU BHZ AU -- + a 135.04 14.00 ISC KDU RCP ??? IR c 1.43 14.28 MAN RCP WB7 BHZ AU -- - a 146.19 20.59 ISC WB7 WB4 BHZ AU -- - a 146.34 20.62 ISC WB4 WB3 BHZ AU -- - a 146.38 20.64 ISC WB3 WRAB B?Z IR C 146.41 20.64 MOS WRAB WC3 BHZ AU -- - a 146.41 20.68 ISC WC3 WR7 BHZ AU -- + a 146.18 20.73 ISC WR7 AS13 SHZ AU -- - a 152.72 23.52 ISC AS13 AS16 SHZ AU -- - a 152.62 23.52 ISC AS16 AS14 SHZ AU -- - a 152.68 23.53 ISC AS14 AS31 BHZ AU -- - a 152.71 23.54 ISC AS31 AS12 SHZ AU -- - a 152.71 23.54 ISC ASAR AS05 SHZ AU -- - a 152.61 23.54 ISC AS05 AS04 SHZ AU -- - a 152.66 23.55 ISC AS04 AS06 SHZ AU -- - a 152.56 23.55 ISC AS06 AS03 SHZ AU -- - a 152.70 23.56 ISC AS03 AS01 SHZ AU -- - a 152.62 23.56 ISC AS01 AS02 SHZ AU -- - a 152.66 23.57 ISC AS02 AS07 SHZ AU -- - a 152.58 23.57 ISC AS07 AS17 SHZ AU -- - a 152.54 23.58 ISC AS17 AS09 SHZ AU -- - a 152.68 23.59 ISC AS09 AS19 SHZ AU -- - a 152.65 23.60 ISC AS19 PMG BHZ IU 00 - a 106.00 25.48 ISC PMG PMG BHZ IU 10 - a 106.00 25.48 ISC PMG INKA BHZ AU -- + a 146.48 30.37 ISC INKA CMAR B?Z IR C 313.37 31.30 MOS CMAR LCRK BHZ AU -- + a 153.04 31.31 ISC LCRK CMMT BHZ TM -- + a 313.89 31.52 ISC CMMT CHTO BHZ IU 00 + a 313.89 31.52 ISC CHTO CHTO BHZ IU 10 + a 313.89 31.52 ISC CHTO QLP BHZ AU -- + a 140.49 31.59 ISC QLP KMI ??? IR d 326.66 33.68 BJI KMI STKA BHZ AU -- - a 150.05 34.10 ISC STKA CMSA BHZ AU -- - a 144.96 36.04 ISC CMSA YNG BHZ AU -- - a 145.28 39.61 ISC YNG KLR B?Z IR C 7.73 52.46 MOS KLR MRZ1 BHZ KC -- - a 324.17 59.06 ISC MRZ1 MAKZ BHZ IU 00 - a 329.35 60.85 ISC MAKZ KBL BHZ IU -- + a 311.59 62.30 ISC KBL MA2 S?Z IR C 15.35 66.09 MOS MA2 TIXI S?Z IR C 2.13 74.44 MOS TIXI NRIK S?Z IR C 347.93 75.79 MOS NRIK ARU B?Z IR D 329.38 78.21 MOS ARU BELG B?Z IR C 323.44 82.97 MOS BELG KIRV S?Z IR C 329.74 83.58 MOS KIRV KBZ B?Z IR C 314.25 84.34 MOS KBZ GOF S?Z IR C 315.59 84.46 MOS GOF SHA1 B?Z IR C 314.24 84.52 MOS SHA1 KVT BHZ KO -- + a 311.01 89.06 ISC KVT OBN B?Z IR C 325.04 89.89 MOS OBN BRTR B?Z IR C 309.55 90.81 MOS BRTR MBAR B?Z IR C 269.32 91.62 MOS MBAR AKBB B?Z IR C 320.46 94.16 MOS AKBB SORM ??? IR d 317.89 94.77 BUC SORM CFR ??? IR c 314.93 94.98 BUC CFR VRI ??? IR c 315.64 95.95 BUC VRI TESR ??? IR c 316.30 95.98 BUC TESR PLOR ??? IR c 315.63 96.00 BUC PLOR MLR ??? IR c 315.29 96.51 BUC MLR BURAR ??? IR c 317.45 96.90 BUC BURAR sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
