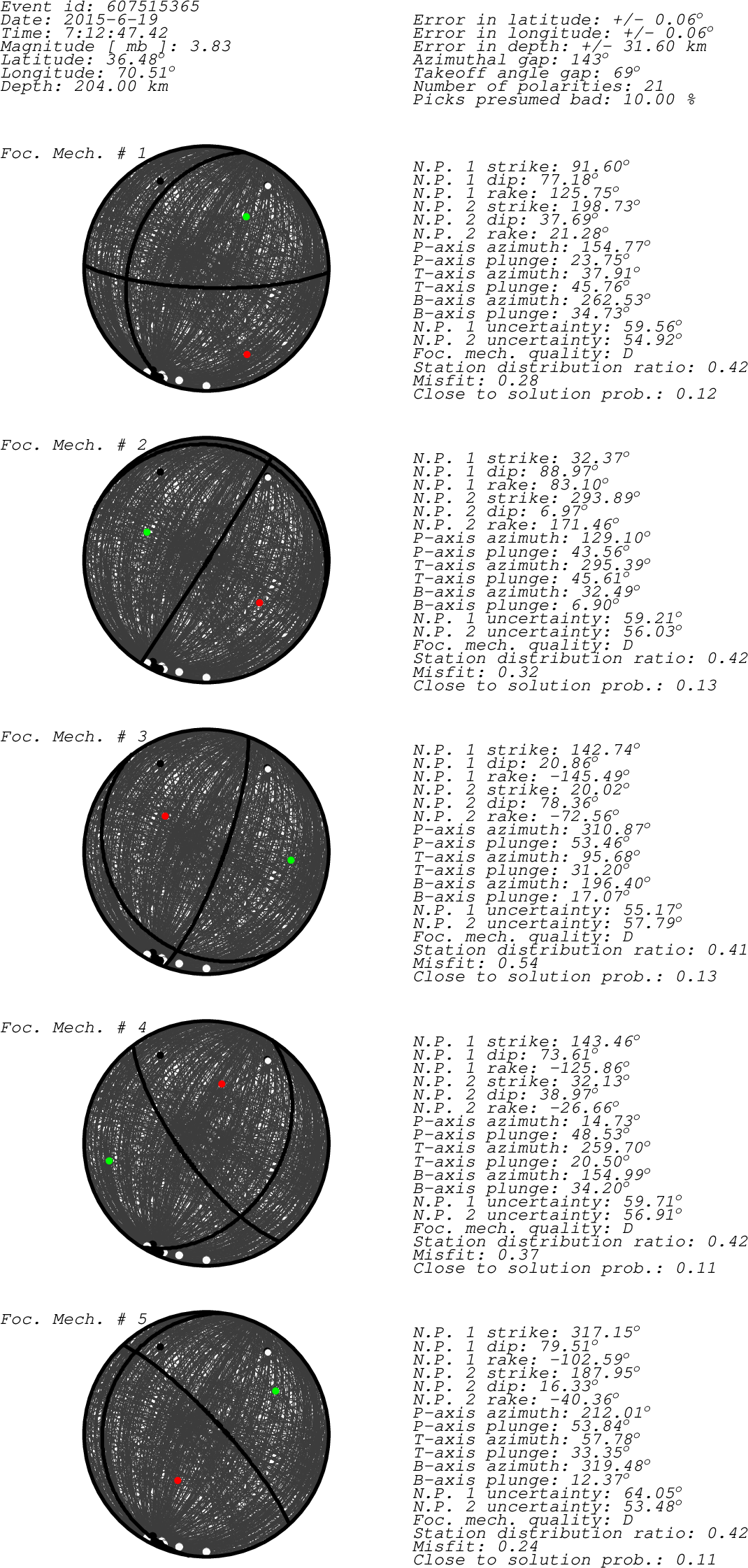

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta ARLS BHZ KR -- + a 27.78 6.13 ISC ARLS AML BHZ KN -- - a 22.66 6.16 ISC AML AML HHZ KN -- - a 22.66 6.16 ISC AML MNAS BHZ KR -- - a 13.76 6.20 ISC MNAS KK31 ??? IR d 0.02 6.61 NNC KK31 KKAR BHZ KZ -- - a 0.02 6.61 ISC KKAR EKS2 BHZ KN -- - a 21.24 6.67 ISC EKS2 EKS2 HHZ KN -- - a 21.24 6.67 ISC EKS2 AAK ??? IR c 25.37 6.88 NNC AAK AAK BHZ II 00 - a 25.37 6.88 ISC AAK CHM HHZ KN -- + a 25.35 7.28 ISC CHMS CHM BHZ KN -- + a 25.35 7.28 ISC CHMS USP BHZ KN -- + a 23.12 7.44 ISC USP USP HHZ KN -- + a 23.12 7.44 ISC USP TKM2 ??? IR d 29.80 7.53 NNC TKM2 TKM2 HHZ KN -- + a 29.81 7.53 ISC TKM2 TKM2 BHZ KN -- - a 29.81 7.53 ISC TKM2 MAKZ BHZ IU 00 + a 36.11 13.40 ISC MAKZ MKAR BHZ KZ -- - a 36.81 13.54 ISC MKAR AB31 ??? IR c 332.17 14.91 NNC AB31 ABKAR BHZ KZ -- + a 332.17 14.91 ISC ABKAR AKTO ??? IR c 331.04 16.60 NNC AKTO sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
