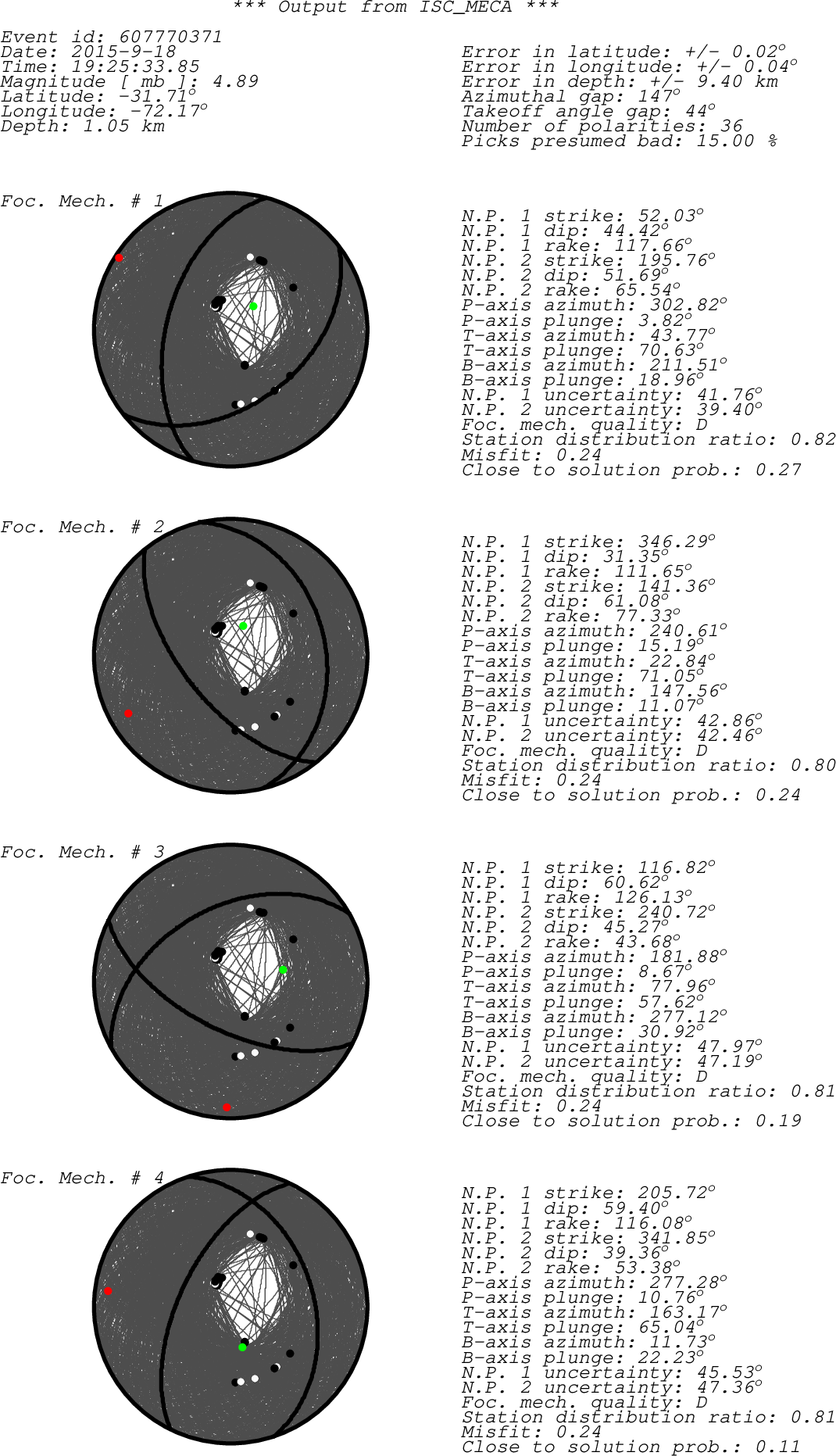

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta CO06 H?Z IR D 24.28 1.13 GUC CO06 VA06 H?Z IR D 139.06 1.13 GUC VA06 VA01 HHZ C1 -- + a 161.04 1.39 ISC IHA VA01 BHZ C1 -- - a 161.04 1.39 ISC IHA CO03 H?Z IR C 56.12 1.54 GUC CO03 ROCH H?Z IR C 142.32 1.60 GUC ROCH VA03 H?Z IR C 127.86 1.73 GUC VA03 CO05 H?Z IR C 24.53 1.96 GUC CO05 MT05 BHZ C1 -- - a 144.54 2.07 ISC MT05 MT05 HHZ C1 -- + a 144.54 2.07 ISC MT05 DG06 HHZ C1 -- - a 142.22 2.25 ISC FSR MT09 H?Z IR C 154.47 2.29 GUC MT09 BO03 H?Z IR D 176.38 2.79 GUC BO03 BO01 H?Z IR C 161.43 2.83 GUC BO01 LCO BHZ IU 60 + a 25.73 2.97 ISC LCO GO05 B?Z IR C 176.51 3.30 GUC GO05 AC04 BHZ C1 -- - a 15.41 3.63 ISC AC04 GO03 BHZ C -- + a 22.86 4.43 ISC GO03 PLCA SHZ GT 10 - a 172.18 9.10 ISC PLCA VNA3 BHZ AW -- + a 158.50 51.52 ISC VNA3 VNA2 BHZ AW -- + a 157.88 52.17 ISC VNA2 SNAA BHZ GE -- + a 158.46 53.75 ISC SNAA WHTX BHZ TA -- + a 336.91 67.72 ISC WHTX Z35B BHZ N4 -- + a 337.64 68.88 ISC Z35A WMOK BHZ US 10 + a 336.99 70.67 ISC WMOK MSTX BHZ TA -- + a 333.49 71.41 ISC MSTX T35B BHZ N4 -- + a 339.67 71.97 ISC T35A R40B BHZ N4 -- + a 343.50 72.11 ISC R40A 121A BHZ TA -- + a 328.90 72.22 ISC 121A W18A BHZ TA -- + a 328.89 75.27 ISC W18A Q24A BHZ TA -- + a 334.15 76.71 ISC Q24A BC3 BHZ CI -- - a 324.02 76.76 ISC BC3 PHWY BHZ IW 00 + a 335.08 78.88 ISC PHWY TPNV BHZ US 00 - a 325.51 79.78 ISC TPNV LCH HHZ NN -- + a 324.79 80.68 ISC LCH HWUT BHZ US 00 + a 331.24 81.49 ISC HWUT KVN HHZ NN -- + a 325.63 82.33 ISC KVN HLID BHZ US 00 + a 330.59 84.29 ISC HLID IRON HHZ UW -- + a 328.08 85.89 ISC J08A sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
