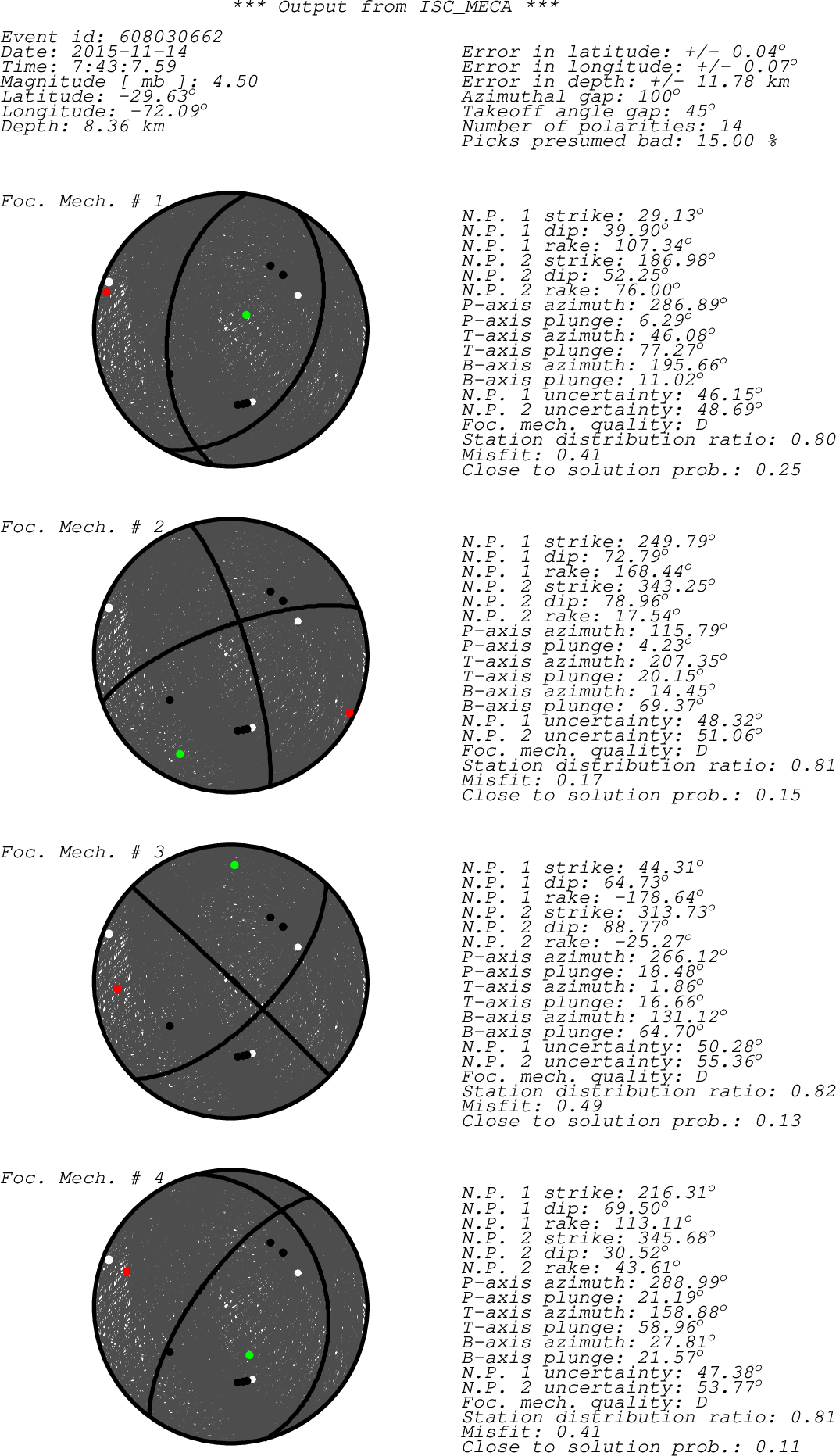

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta CO05 H?Z IR D 111.27 0.79 GUC CO05 CO06 H?Z IR C 159.48 1.11 GUC CO06 GO04 H?Z IR D 115.99 1.24 GUC GO04 LCO B?Z IR C 63.17 1.36 GUC LCO LCO BHZ IU 00 - a 63.17 1.36 ISC LCO LCO BHZ IU 60 - a 63.17 1.36 ISC LCO LCO BHZ IU 10 - a 63.17 1.36 ISC LCO LCO HHZ IU 10 - a 63.17 1.36 ISC LCO AC04 H?Z IR C 32.16 1.68 GUC AC04 AC02 BHZ C1 -- + a 43.79 3.82 ISC AC02 AC02 HHZ C1 -- + a 43.79 3.82 ISC AC02 MT05 HHZ C1 -- - a 163.27 3.92 ISC MT05 VA05 HHZ C1 -- + a 174.40 4.03 ISC VA05 MT09 BHZ C1 -- + a 167.53 4.23 ISC MT09 MT01 BHZ C1 -- + a 170.65 4.28 ISC MT01 BO01 HHZ C1 -- - a 170.10 4.82 ISC BO01 VA04 HHZ C1 -- + a 233.48 7.00 ISC VA04 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
