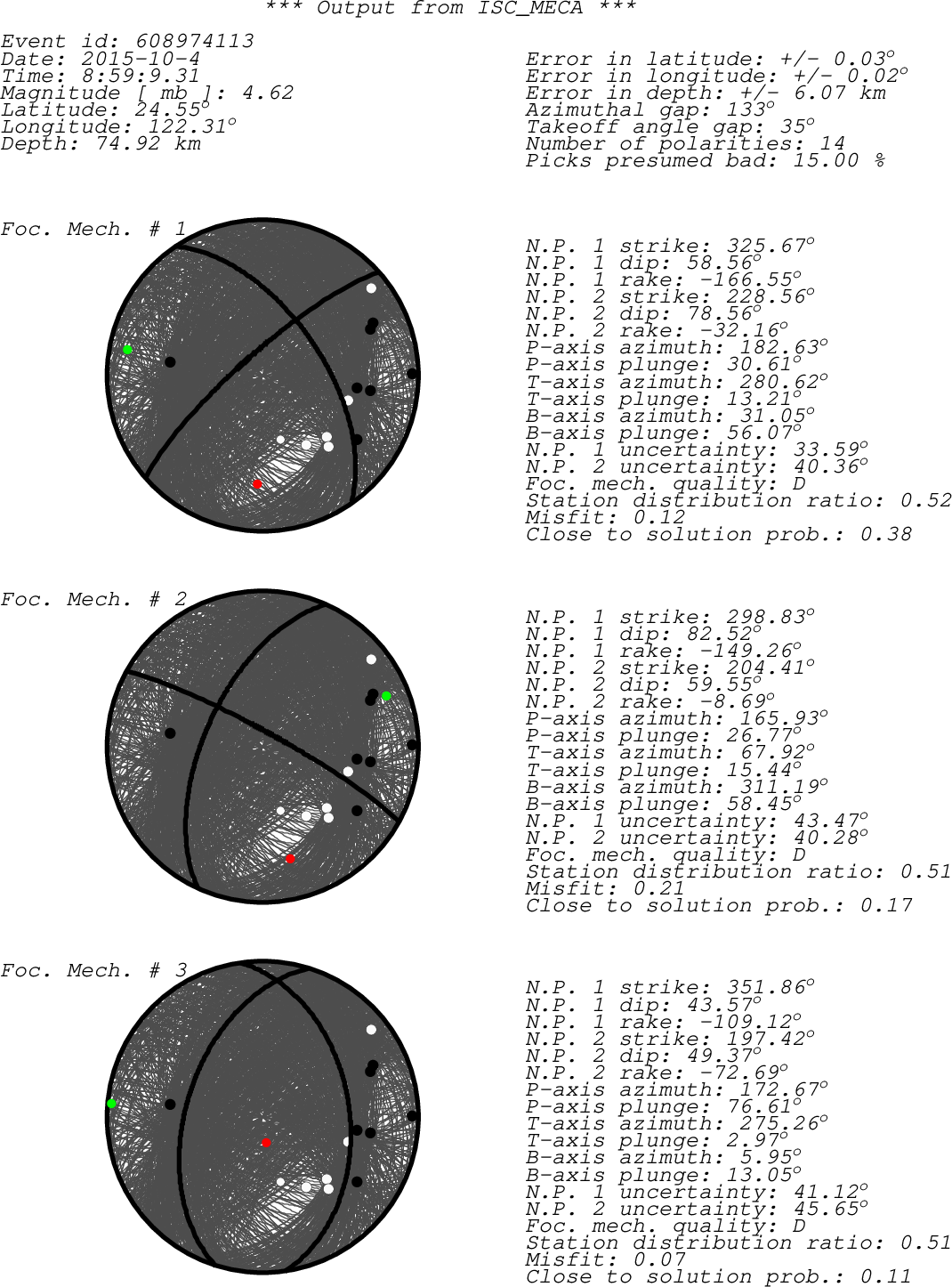

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta TWB1 ??? IR D 327.61 0.54 TAP TWB1 TIPB ??? IR D 313.84 0.60 TAP TIPB TWE ??? IR D 286.30 0.61 TAP TWE YOJ ??? IR C 97.81 0.65 TAP YOJ ENTT ??? IR C 277.58 0.68 TAP ENTT NWF ??? IR D 317.39 0.70 TAP NWF WFSB ??? IR D 317.39 0.70 TAP WFSB NSK ??? IR C 278.35 0.87 TAP NSK TWS1 ??? IR C 304.28 0.97 TAP TWS1 WHF ??? IR C 247.13 1.03 TAP WHF CHGB ??? IR C 244.89 1.14 TAP CHGB TPUB BHZ TW -- - a 231.27 1.98 ISC TPUB KMNB BHZ TW -- + a 269.40 3.57 ISC KNMB WRAB BHZ II 10 - a 164.08 45.75 ISC WRAB sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
