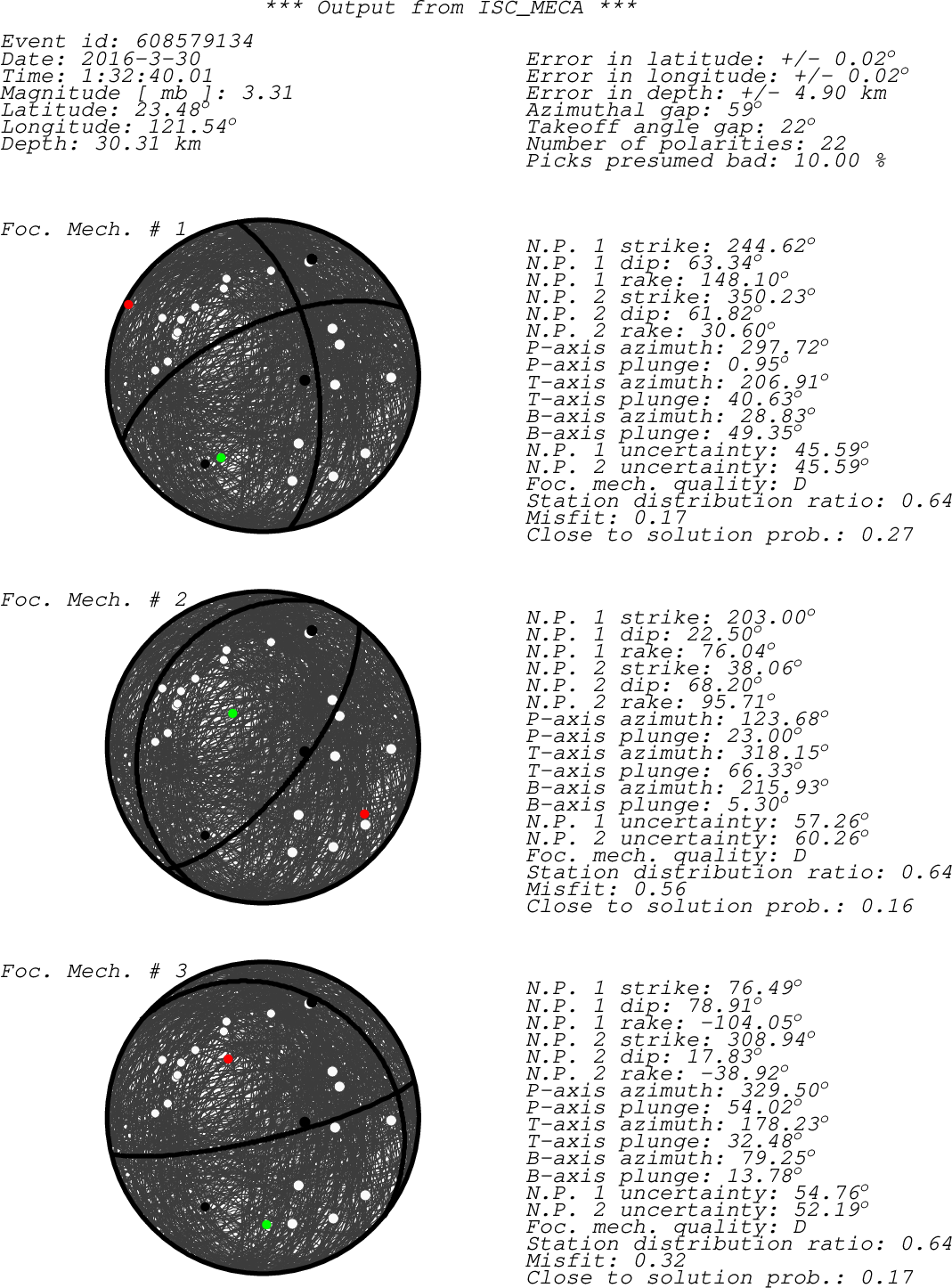

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta HGSD ??? IR C 276.03 0.10 TAP HGSD EHY ??? IR D 277.20 0.20 TAP EHY EGFH ??? IR D 332.08 0.21 TAP EGFH YULB ??? IR D 248.01 0.24 TAP YULB EYUL ??? IR D 236.14 0.24 TAP EYUL ESL ??? IR D 344.21 0.34 TAP ESL CHKT ??? IR D 202.37 0.41 TAP CHKT VWDT ??? IR D 306.95 0.45 TAP VWDT YUS ??? IR D 270.97 0.54 TAP YUS EDH ??? IR C 202.84 0.55 TAP EDH OWD ??? IR D 325.11 0.57 TAP OWD SSLB ??? IR D 299.88 0.61 TAP SSLB WUSB ??? IR D 323.10 0.64 TAP WUSB CHGB ??? IR D 330.20 0.67 TAP CHGB ALS ??? IR D 272.62 0.67 TAP ALS LONT ??? IR C 213.18 0.68 TAP LONT NACB ??? IR D 4.50 0.69 TAP NACB WHF ??? IR D 339.51 0.71 TAP WHF TYC ??? IR D 304.22 0.75 TAP TYC TWGBT ??? IR C 212.48 0.78 TAP TWGBT TWG ??? IR C 213.06 0.78 TAP TWG CHN5 ??? IR D 278.50 0.80 TAP CHN5 WCS ??? IR D 315.21 0.81 TAP WCS WJS ??? IR D 294.77 0.81 TAP WJS TDCB ??? IR D 335.89 0.84 TAP TDCB WNT ??? IR D 297.01 0.88 TAP WNT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
