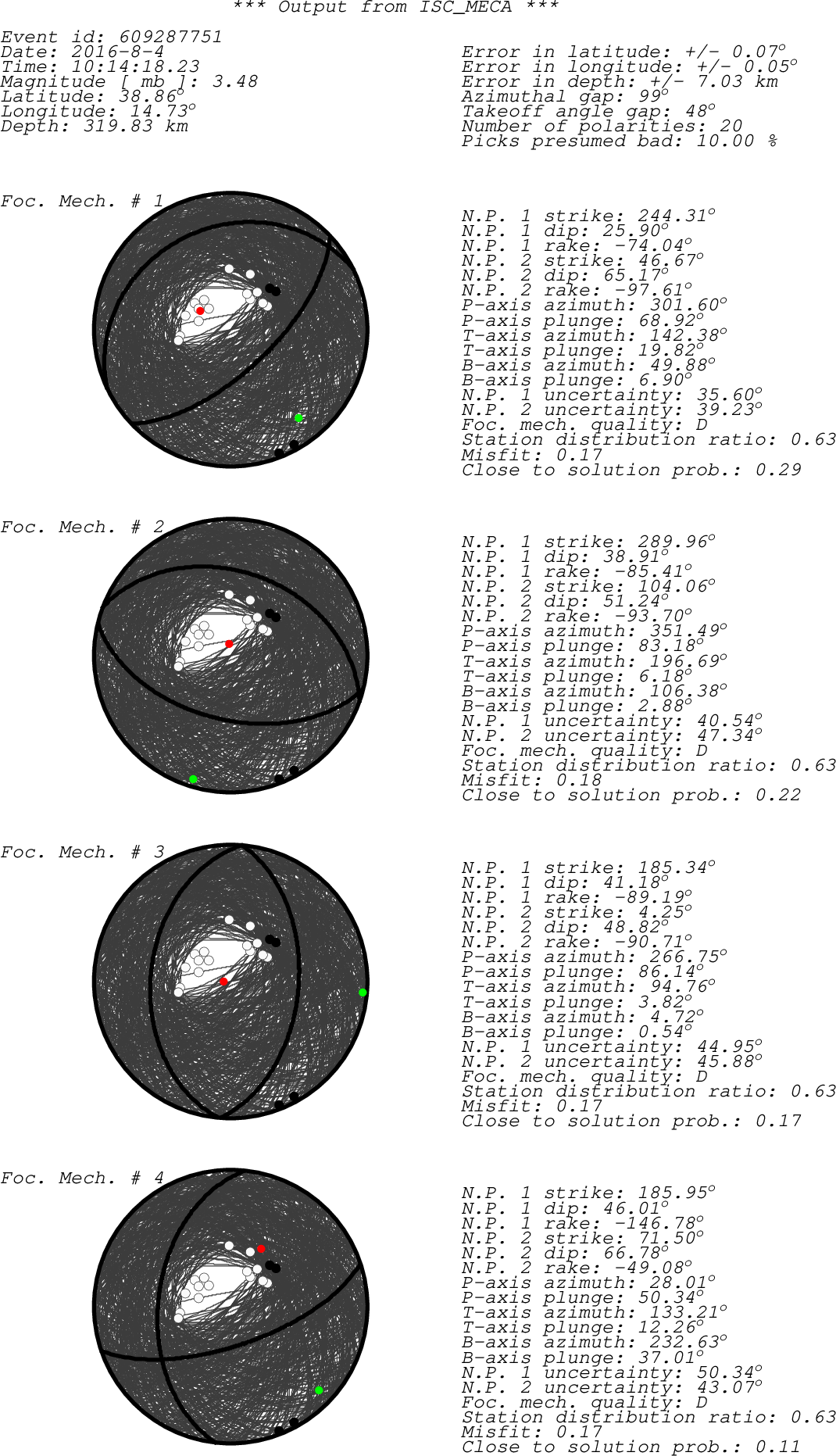

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta MSRU HHZ IR - m 134.23 0.85 ROM MSRU JOPP HHZ IR - m 105.41 0.94 ROM JOPP GIB HHZ IR - m 212.66 1.03 ROM GIB CEL BHZ MN -- - a 123.04 1.09 ISC CEL PETRA HHZ IR - m 205.47 1.14 ROM PETRA MTTG HHZ IR - m 138.36 1.14 ROM MTTG SOLUN HHZ IR - m 231.12 1.22 ROM SOLUN MPG SHZ IR - m 237.41 1.28 ROM MPG SOI EHZ IR - m 126.79 1.30 ROM SOI ALJA HHZ IR - m 215.00 1.35 ROM ALJA PLAC HHZ IR - m 106.61 1.40 ROM PLAC SERS HHZ IR - m 82.90 1.54 ROM SERS TIP HHZ IR - m 78.04 1.61 ROM TIP TIP BHZ MN -- - a 78.02 1.61 ISC TIP CLTB BHZ MN -- + a 223.43 1.75 ISC CLTB CLTA HHZ IR - m 199.90 1.81 ROM CLTA MMGO SHZ IR + m 229.61 1.83 ROM MMGO HMDC HHZ IR - m 178.79 1.90 ROM HMDC MUGIO HHZ CH -- + a 331.02 8.21 ISC MUGIO DAVA BHZ OE -- + a 338.74 9.14 ISC DAVA sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
