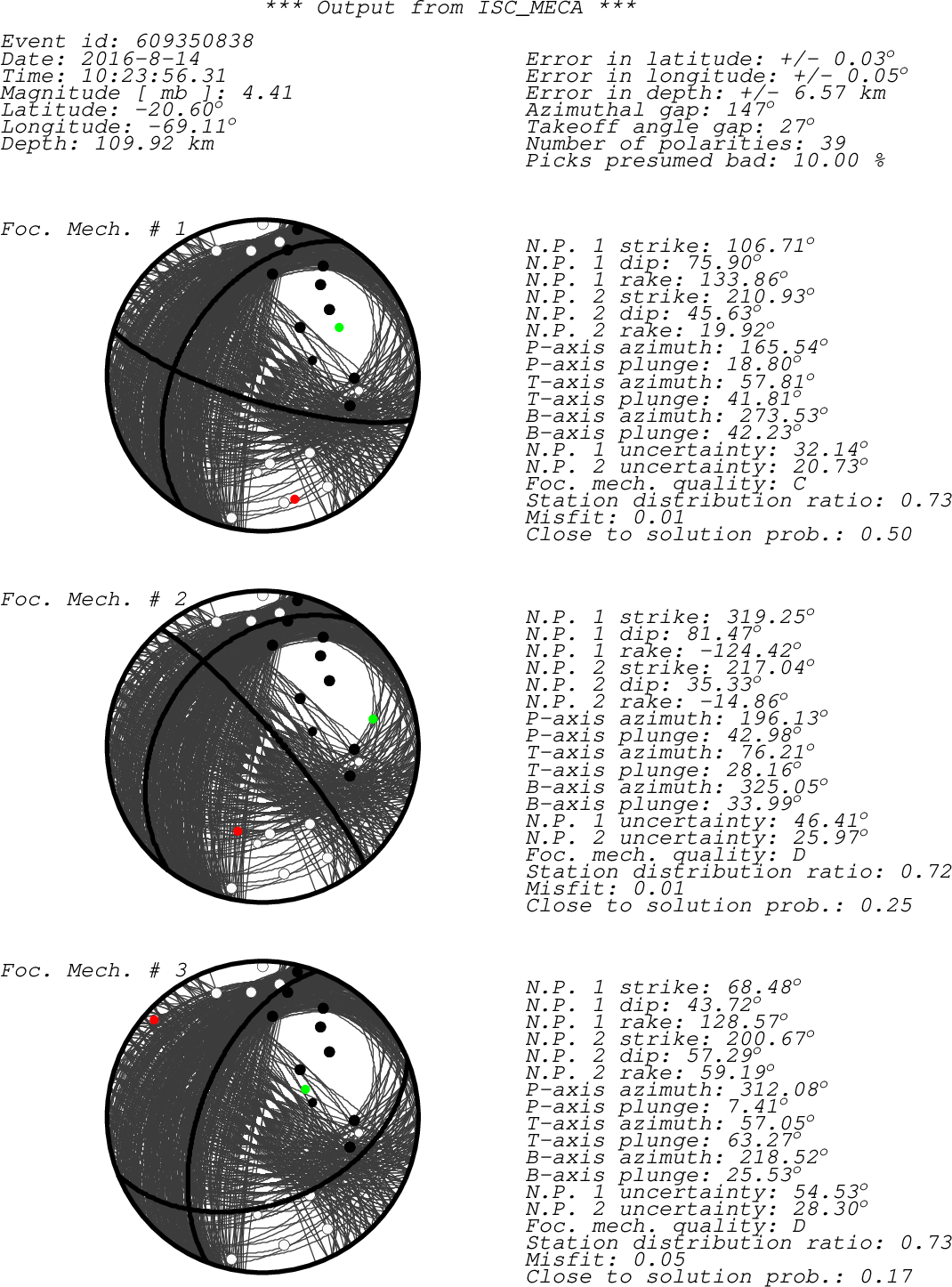

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta PB01 H?Z IR C 218.47 0.56 GUC PB01 PB01 HHZ CX -- + a 218.47 0.56 ISC PB01 GO01 B?Z IR D 355.40 0.93 GUC GO01 PB11 HHZ CX -- - a 328.68 0.98 ISC PB11 TA01 H?Z IR C 271.96 1.00 GUC TA01 TA01 HHZ C1 -- + a 271.97 1.00 ISC TA01 TA02 H?Z IR C 288.98 1.01 GUC TA02 TA02 BHZ C1 -- + a 288.99 1.01 ISC TA02 TA02 HHZ C1 -- + a 288.99 1.01 ISC TA02 PB02 H?Z IR C 225.55 1.02 GUC PB02 PB02 HHZ CX -- + a 225.55 1.02 ISC PB02 PB09 H?Z IR C 185.68 1.19 GUC PB09 PB09 HHZ CX -- + a 185.68 1.19 ISC PB09 PB07 H?Z IR C 212.65 1.33 GUC PB07 PB07 HHZ CX -- + a 212.65 1.33 ISC PB07 PB04 H?Z IR C 209.04 1.97 GUC PB04 PB04 BHZ CX -- + a 209.04 1.97 ISC PB04 LVC B?Z IR D 174.58 2.01 GUC LVC LVC HHZ IU 10 - a 174.62 2.01 ISC LVC LVC BHZ IU 10 - a 174.62 2.01 ISC LVC LVC BHZ IU 00 - a 174.62 2.01 ISC LVC PB06 H?Z IR C 191.40 2.13 GUC PB06 PB06 HHZ CX -- + a 191.40 2.13 ISC PB06 PB12 HHZ CX -- - a 329.77 2.29 ISC PB12 PB16 H?Z IR D 350.61 2.29 GUC PB16 PB16 BHZ CX -- - a 350.61 2.29 ISC PB16 PB16 HHZ CX -- - a 350.61 2.29 ISC PB16 AF01 H?Z IR D 159.76 2.49 GUC AF01 AF01 BHZ C1 -- - a 159.75 2.49 ISC AF01 AF01 HHZ C1 -- - a 159.75 2.49 ISC AF01 PB15 H?Z IR D 187.20 2.61 GUC PB15 PB15 HHZ CX -- - a 187.20 2.61 ISC PB15 PB15 BHZ CX -- - a 187.20 2.61 ISC PB15 LPAZ BHZ GT 00 - a 12.44 4.39 ISC LPAZ AC01 HHZ C1 -- + a 193.59 5.69 ISC AC01 AC02 HHZ C1 -- - a 180.13 6.20 ISC AC02 PLCA SHZ GT 10 - a 183.18 20.10 ISC PLCA RCLB HHZ BL -- - a 99.05 20.16 ISC RCLB DBIC BHZ GT 00 + a 73.86 68.67 ISC DBIC sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
