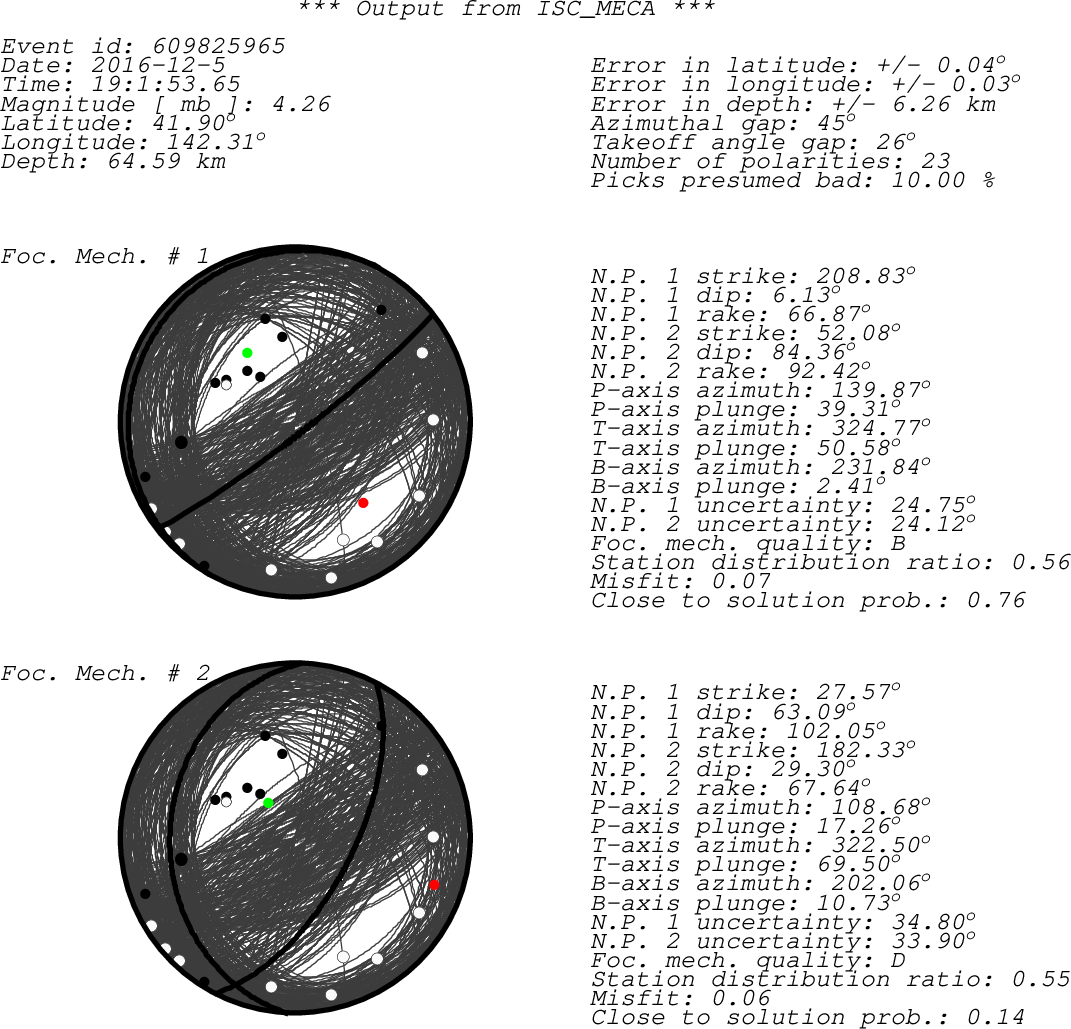

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta JEM BHZ JP -- + a 79.36 0.64 ISC JEM ERM B?Z IR C 79.72 0.64 MOS ERM JIAM ??? IR D 337.98 0.78 JMA JIAM JKB ??? IR D 269.45 0.96 JMA JKB JOT ??? IR D 241.63 1.08 JMA JOT JNB ??? IR D 301.18 1.10 JMA JNB JEW ??? IR D 325.89 1.13 JMA JEW JFR ??? IR D 9.22 1.28 JMA JFR JHR ??? IR D 346.92 1.89 JMA JHR NMR S?Z IR D 58.68 2.91 MOS NMR RUSJ S?Z IR D 43.39 3.08 MOS RUSJ YUK B?Z IR D 49.52 3.36 MOS YUK MAJO S?Z IR C 212.10 6.23 MOS MAJO USA0B S?Z IR D 290.34 7.90 MOS USA0B KLR S?Z IR C 318.31 10.41 MOS KLR TJN S?Z IR C 249.46 12.85 MOS TJN PEA0B S?Z IR C 37.45 15.25 MOS PEA0B YAK S?Z IR C 343.68 21.53 MOS YAK ULN S?Z IR C 295.58 25.53 MOS ULN TIXI S?Z IR C 351.67 30.56 MOS TIXI DGZ S?Z IR C 301.00 38.29 MOS DGZ MK31 S?Z IR D 297.81 42.29 MOS MK31 ARU B?Z IR C 316.43 53.24 MOS ARU AKASG B?Z IR C 321.75 70.89 MOS AKASG sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
