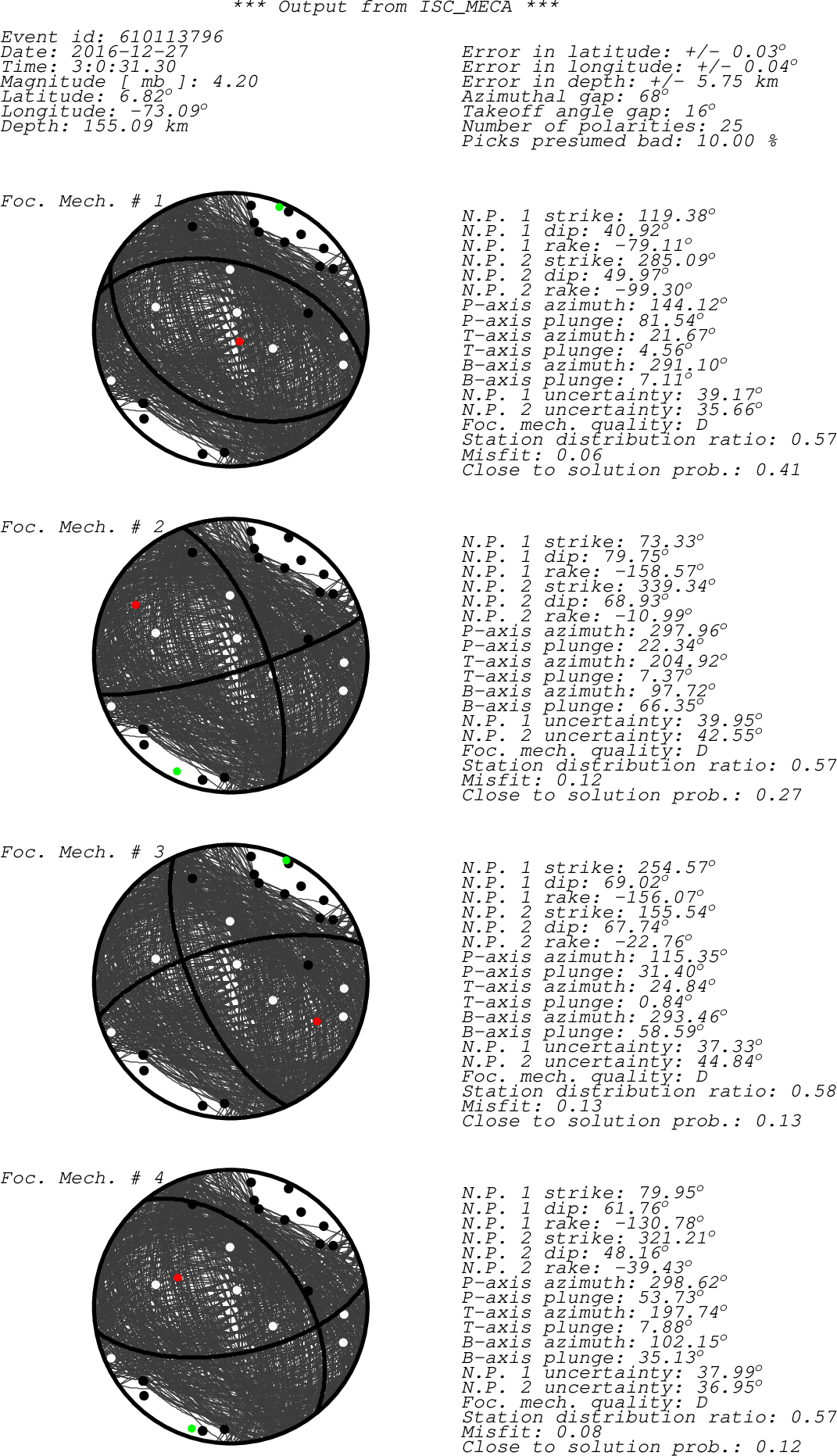

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta BARC E?Z IR D 200.64 0.25 RSNC BARC BRRC H?Z IR D 294.66 0.67 RSNC BRRC RUS BHZ CM 00 - a 179.27 0.93 ISC RUSC TAMC H?Z IR D 106.54 1.35 RSNC TAMC PTBC H?Z IR C 258.25 1.38 RSNC PTBC CHIC H?Z IR C 196.24 2.27 RSNC CHIC ROSC B?Z IR C 211.79 2.32 RSNC ROSC VILC E?Z IR C 192.50 2.76 RSNC VILC GUY2C H?Z IR C 234.97 2.76 RSNC GUY2C PTGC H?Z IR C 159.81 2.78 RSNC PTGC DBBC E?Z IR D 273.73 3.10 RSNC DBBC SDV BHZ IU 10 + a 49.84 3.18 ISC SDV SDV BHZ IU 00 + a 49.84 3.18 ISC SDV SDV HHZ IU 10 + a 49.84 3.18 ISC SDV ORTC H?Z IR C 216.59 3.60 RSNC ORTC APAC H?Z IR D 287.39 3.62 RSNC APAC PLMC H?Z IR C 239.15 3.70 RSNC PLMC CRJC H?Z IR C 2.87 4.17 RSNC CRJC YOTC H?Z IR C 229.07 4.29 RSNC YOTC CURV BHZ VE -- + a 44.17 4.43 ISC CURV MACC H?Z IR C 189.20 4.71 RSNC MACC URI BHZ CM 00 + a 12.60 4.97 ISC URIC URIC H?Z IR C 12.57 4.97 RSNC URIC BAUV BHZ VE -- - a 66.86 5.43 ISC BAUV FLOC H?Z IR C 206.21 5.80 RSNC FLOC sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
