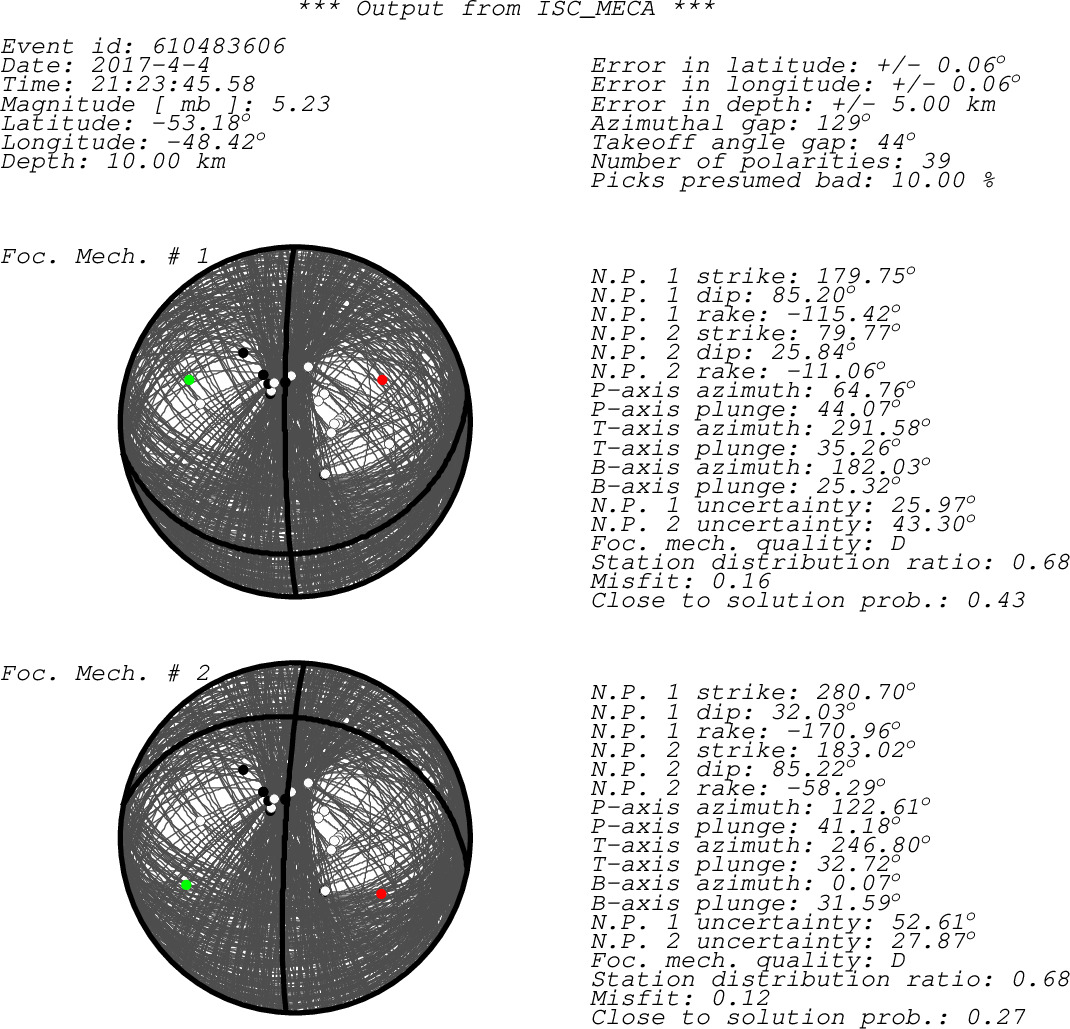

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta EFI BHZ II 10 - a 280.45 6.09 ISC EFI HOPE BHZ II 10 + a 103.66 7.17 ISC HOPE HOPE BHZ II 00 - a 103.66 7.17 ISC HOPE TRQA BHZ IU 10 + a 322.74 17.80 ISC TRQA VNA3 BHZ AW -- + a 151.18 24.84 ISC VNA3 VNAC6 SHZ AW -- - a 149.78 25.38 ISC VNA2 VNAC7 SHZ AW -- - a 149.76 25.38 ISC VNA2 VNAB4 SHZ AW -- - a 149.78 25.38 ISC VNA2 VNAB5 SHZ AW -- - a 149.77 25.38 ISC VNA2 VNAA3 SHZ AW -- - a 149.78 25.38 ISC VNA2 VNAC1 SHZ AW -- - a 149.75 25.38 ISC VNA2 VNAB1 SHZ AW -- - a 149.76 25.39 ISC VNA2 VNAB3 SHZ AW -- - a 149.78 25.39 ISC VNA2 VNAB2 SHZ AW -- - a 149.77 25.39 ISC VNA2 VNAC4 SHZ AW -- - a 149.79 25.39 ISC VNA2 VNAC3 SHZ AW -- - a 149.78 25.39 ISC VNA2 GUA01 HHZ ON -- - a 13.76 37.14 ISC GUA01 PB11 BHZ CX -- + a 325.63 37.17 ISC PB11 MNMCX BHZ CX -- + a 326.08 37.74 ISC MNMC CMC01 HHZ ON -- - a 13.91 38.38 ISC CMC01 MPG BHZ G 00 - a 355.05 58.18 ISC MPGF OTAV BHZ IU 10 + a 324.20 58.81 ISC OTAV NE202 BHZ NR -- - a 89.83 59.29 ISC NE202 NE210 BHZ NR -- - a 87.31 61.02 ISC NE210 RUS BHZ CM 00 - a 332.08 62.44 ISC RUSC NE208 BHZ NR -- - a 91.13 63.13 ISC NE208 NE219 BHZ NR -- - a 93.16 63.86 ISC NE219 NE216 BHZ NR -- - a 89.15 63.91 ISC NE216 LIC ??? IR D 46.78 69.58 LIC LIC KIC ??? IR D 46.99 69.83 LIC KIC TAG HHZ GL 00 + a 346.43 69.87 ISC TAG TIC ??? IR D 46.59 69.96 LIC TIC SBLM HHZ WI 00 + a 345.54 71.89 ISC SBLM TETE BHZ AF -- - a 93.58 72.47 ISC TET BOAB BHZ GE -- + a 321.75 72.72 ISC BOAB MATN BHZ NU -- - a 321.69 73.26 ISC MATN VOI BHZ GE -- - a 107.46 75.65 ISC VOI GUNB HHZ GI -- + a 318.30 76.49 ISC NBG TAM BHZ G 00 - a 48.27 88.89 ISC TAM sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
