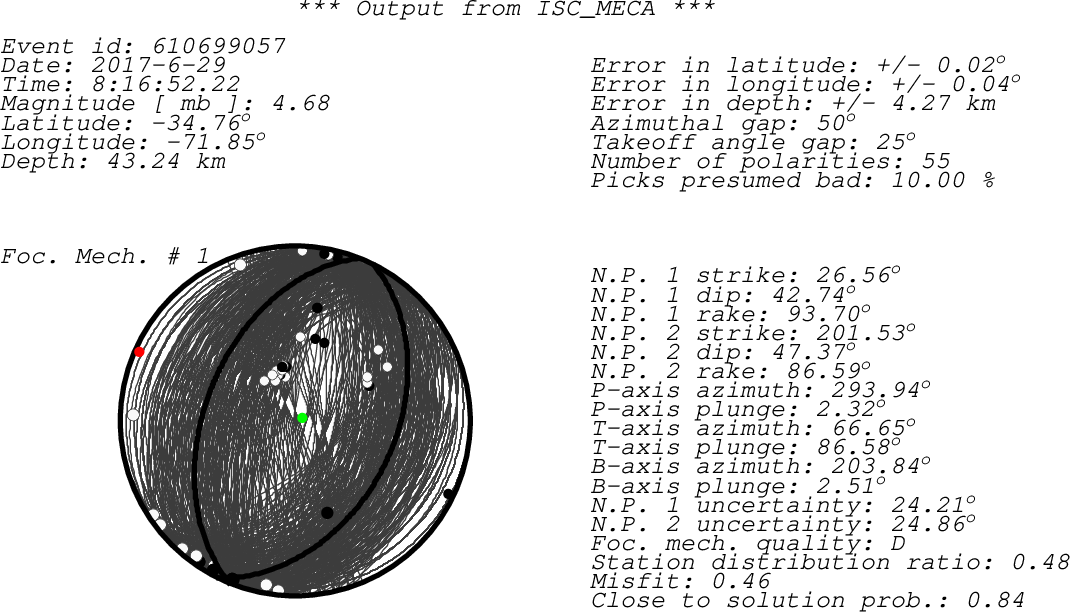

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta GO05 B?Z IR C 195.13 0.26 GUC GO05 BO03 H?Z IR C 340.63 0.28 GUC BO03 BO01 H?Z IR D 59.83 0.73 GUC BO01 BO02 H?Z IR D 92.28 0.88 GUC BO02 MT01 H?Z IR D 29.07 1.02 GUC MT01 MT01 BHZ C1 -- - a 29.07 1.02 ISC MT01 ML02 H?Z IR D 160.70 1.06 GUC ML02 ML02 BHZ C1 -- - a 160.70 1.06 ISC ML02 ML02 HHZ C1 -- - a 160.70 1.06 ISC ML02 VA05 H?Z IR D 10.04 1.12 GUC VA05 VA05 BHZ C1 -- - a 10.04 1.12 ISC VA05 VA05 HHZ C1 -- - a 10.04 1.12 ISC VA05 MT09 H?Z IR D 36.14 1.21 GUC MT09 MT09 BHZ C1 -- - a 36.14 1.21 ISC MT09 MT02 H?Z IR C 21.69 1.61 GUC MT02 MT02 HHZ C1 -- + a 21.69 1.61 ISC MT02 MT02 BHZ C1 -- + a 21.69 1.61 ISC MT02 LMEL H?Z IR D 56.64 1.64 GUC LMEL MT13 H?Z IR D 52.31 1.65 GUC MT13 MT13 BHZ C1 -- - a 52.30 1.65 ISC MT13 MT05 H?Z IR C 34.30 1.65 GUC MT05 MT05 HHZ C1 -- + a 34.30 1.65 ISC MT05 MT05 BHZ C1 -- + a 34.30 1.65 ISC MT05 MT03 H?Z IR C 41.63 1.68 GUC MT03 MT03 HHZ C1 -- - a 41.63 1.68 ISC MT03 VA01 HHZ C1 -- + a 5.83 1.74 ISC IHA VA01 BHZ C1 -- - a 5.83 1.74 ISC IHA PEL B?Z IR C 31.24 1.88 GUC PEL MT07 BHZ C1 -- + a 21.48 1.91 ISC MT07 ROC1 BHZ C -- + a 21.48 1.91 ISC ROC1 ROCH H?Z IR C 21.54 1.92 GUC ROCH ROCH H?Z IR C 21.54 1.92 GUC ROCH FCH B?Z IR C 42.55 1.93 GUC FCH MT04 H?Z IR C 46.85 1.96 GUC MT04 VA03 BHZ C1 -- + a 28.83 2.27 ISC VA03 VA03 HHZ C1 -- + a 28.83 2.27 ISC VA03 TRQA BHZ IU 10 + a 115.31 8.61 ISC TRQA LPAZ BHZ GT 00 + a 11.20 18.70 ISC LPAZ LPAZ SHZ GT 10 + a 11.20 18.70 ISC LPAZ PCMB HHZ BL -- - a 59.46 22.33 ISC PCMB TBTG HHZ BR -- - a 3.82 30.48 ISC TBTG TEFE HHZ BR -- + a 13.76 31.81 ISC TEFE MACA HHZ BR -- + a 20.73 33.11 ISC MACA VNA3 BHZ IR c 157.58 48.60 AWI VNA3 VNA2 BHZ IR c 156.95 49.25 AWI VNA2 SNAA BHZ IR c 157.60 50.82 AWI SNAA TROLL BHZ IR c 157.85 52.53 AWI TROLL W50A BHZ N4 -- - a 348.35 70.73 ISC W50A V48A BHZ N4 -- + a 347.19 71.52 ISC V48A WVT BHZ IU 00 + a 346.45 72.08 ISC WVT S51A BHZ N4 -- + a 350.26 72.86 ISC S51A OK048 HHZ GS 00 - a 339.21 74.58 ISC OK048 P43A BHZ N4 -- - a 346.01 75.81 ISC P43A T25A BHZ TA -- - a 333.88 77.68 ISC T25A TKX HHZ BC -- - a 322.73 79.07 ISC TKX RLMT BHZ US 00 - a 334.47 86.44 ISC RLMT sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
