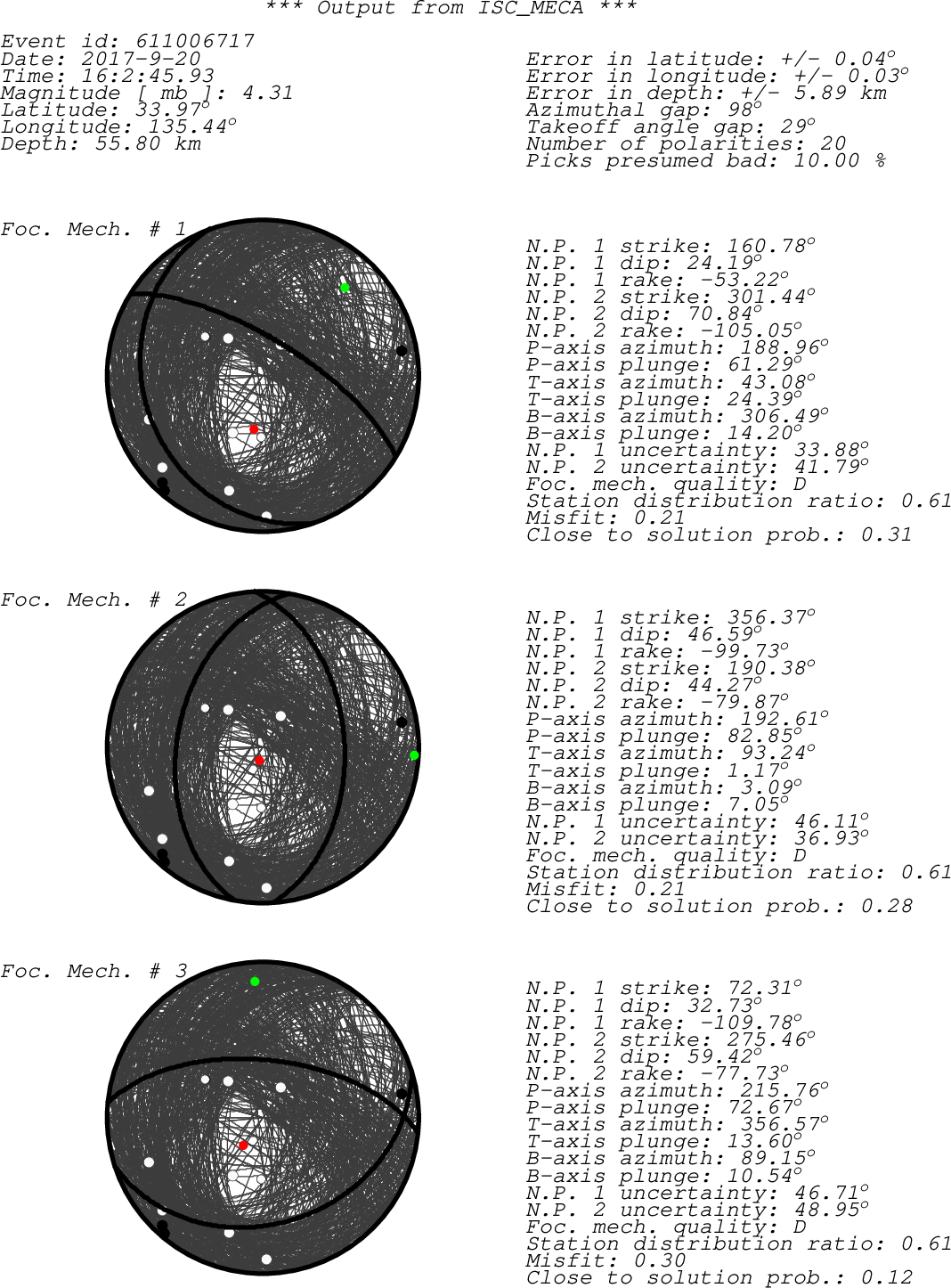

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta JWM ??? IR D 210.09 0.14 JMA JWM JTNC ??? IR D 137.04 0.21 JMA JTNC JWY ??? IR D 27.30 0.28 JMA JWY JHE ??? IR D 16.55 0.71 JMA JHE JKN2 ??? IR D 68.70 0.74 JMA JKN2 TSUJ ??? IR D 47.48 1.09 JMA TSUJ JWT ??? IR D 358.62 1.31 JMA JWT JMN BHZ JP -- + a 260.00 1.32 ISC JMN INU BHZ G 00 + a 43.17 1.90 ISC INU MAJO BHZ IU 60 + a 40.59 3.42 ISC MAJO MAJO HHZ IU 10 + a 40.59 3.42 ISC MAJO MAJO BHZ IU 10 + a 40.59 3.42 ISC MAJO MAJO BHZ IU 00 + a 40.59 3.42 ISC MAJO MKAR BHZ KZ -- - a 304.27 41.71 ISC MKAR MAKZ BHZ IU 00 + a 304.30 41.92 ISC MAKZ WR1 BHZ AU -- - a 181.29 53.62 ISC WR1 WR3 BHZ AU -- - a 181.23 53.63 ISC WR3 WR5 BHZ AU -- - a 181.18 53.63 ISC WR5 WB1 BHZ AU -- - a 181.28 53.64 ISC WB1 WC4 BHZ AU -- + a 181.28 53.64 ISC WC4 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
