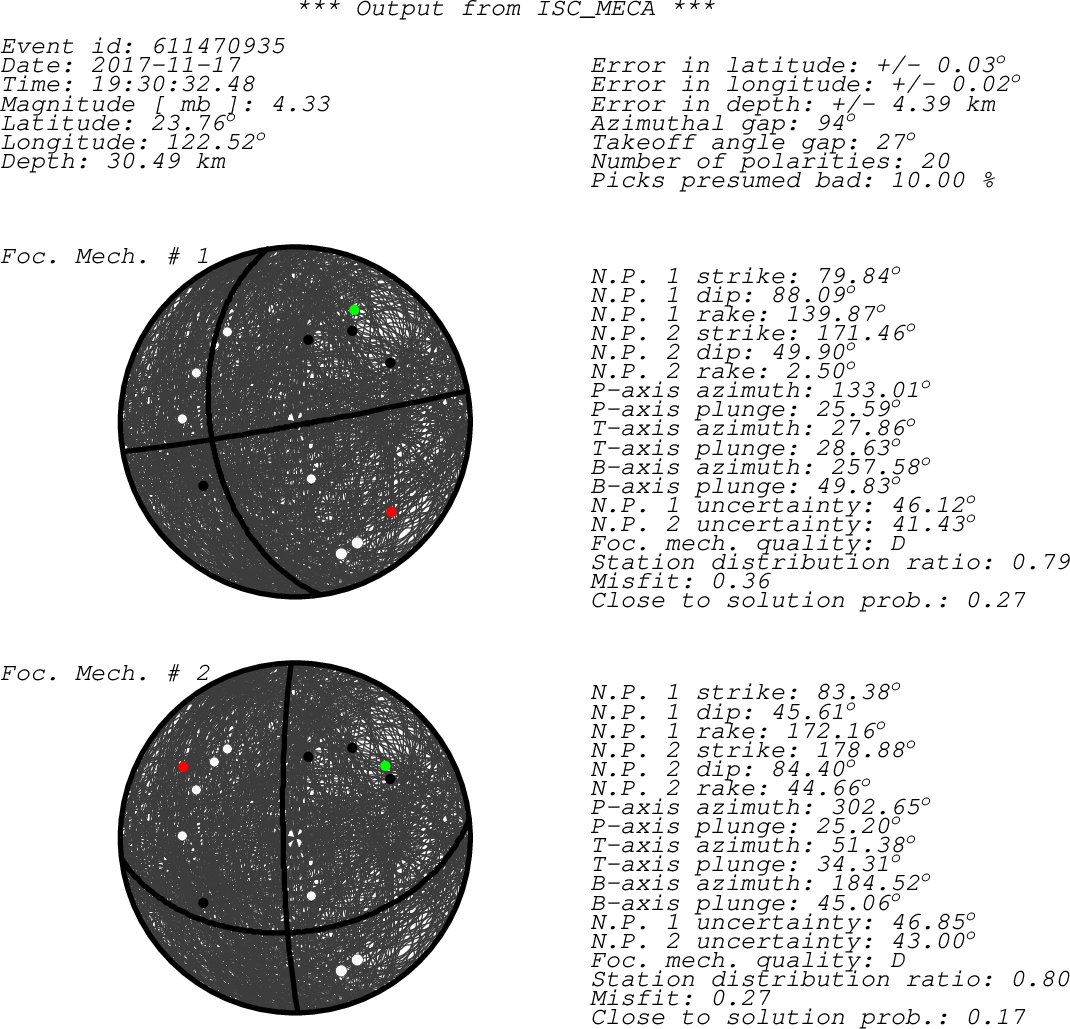

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta EOS4 ??? IR D 332.97 0.40 TAP EOS4 EOS3 ??? IR D 340.69 0.56 TAP EOS3 YOJ BHZ JP -- + a 32.44 0.84 ISC YOJ NACB ??? IR D 296.21 0.94 TAP NACB ENA ??? IR D 313.28 0.97 TAP ENA SSLB BHZ TW -- - a 271.45 1.43 ISC SSLB TATO HHZ IU 10 - a 322.58 1.53 ISC TATO TWGB BHZ TW -- + a 234.99 1.62 ISC TWG JOW BHZ JP -- + a 58.33 6.04 ISC JOW XAN ??? IR c 313.79 15.69 BJI XAN BNX ??? IR c 9.05 22.29 BJI BNX WB5 BHZ AU -- - a 164.11 44.88 ISC WB5 WB4 BHZ AU -- - a 164.13 44.91 ISC WB4 WC1 BHZ AU -- + a 164.16 44.92 ISC WC1 WB3 BHZ AU -- + a 164.14 44.92 ISC WB3 WC2 BHZ AU -- + a 164.13 44.93 ISC WC2 WR3 BHZ AU -- - a 164.11 44.96 ISC WR3 WC3 BHZ AU -- + a 164.13 44.96 ISC WC3 WR7 BHZ AU -- + a 164.00 44.98 ISC WR7 WR8 BHZ AU -- - a 163.97 44.99 ISC WR8 WR9 BHZ AU -- - a 163.95 45.00 ISC WR9 sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
