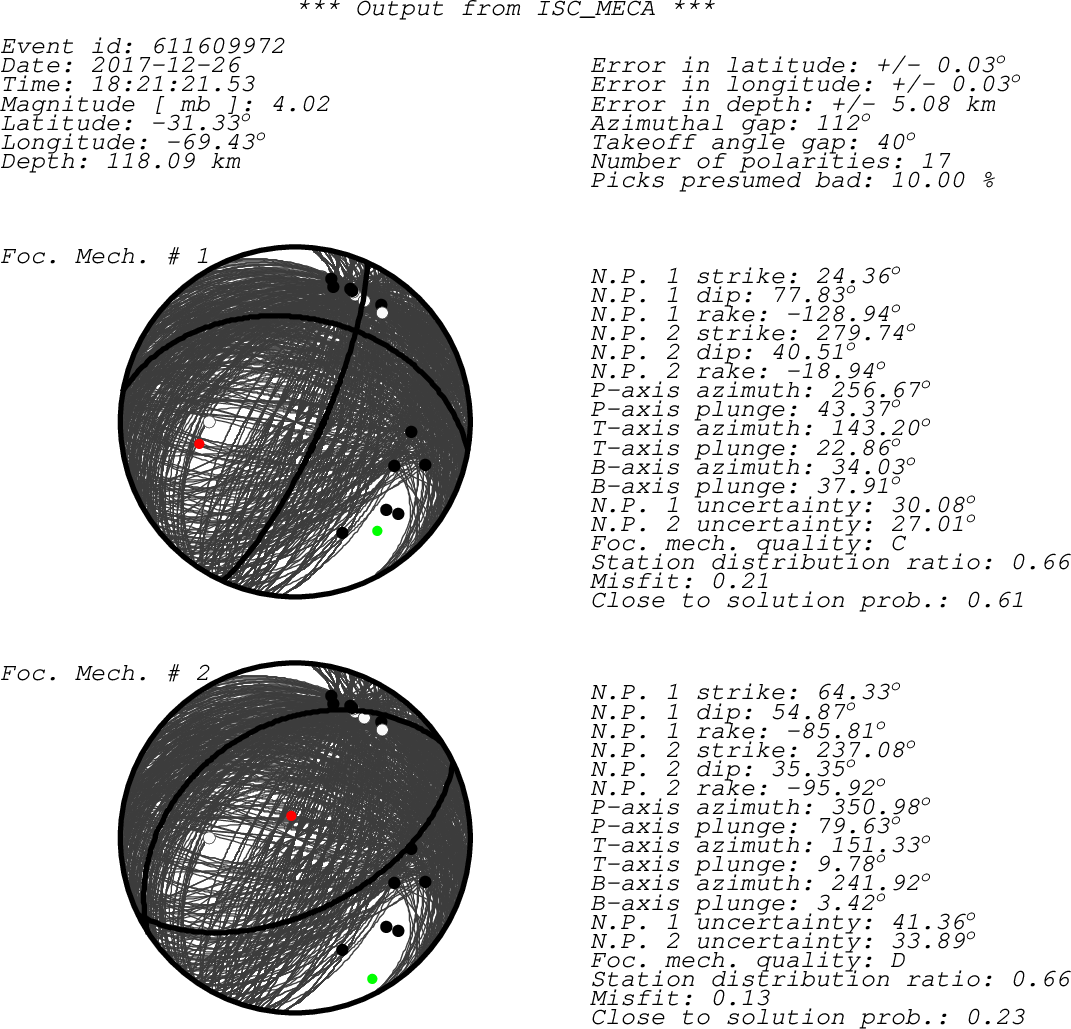

Black dots -> compressions (C,c,+,U,u) White dots -> dilatations (D,d,-) Green dot -> T-axis Red dot -> P-axis
sta chan net loc pol a/m azi dist author irsta RTLL H?Z IR D 89.97 0.82 GUC RTLL CO03 H?Z IR C 294.26 1.18 GUC CO03 CO02 H?Z IR C 275.09 1.35 GUC CO02 CO01 H?Z IR C 337.00 1.47 GUC CO01 GO04 B?Z IR C 314.19 1.65 GUC GO04 CO06 H?Z IR C 288.61 2.00 GUC CO06 PEL BHZ G 00 - a 209.90 2.09 ISC PEL PEL B?Z IR D 210.11 2.09 GUC PEL CO05 H?Z IR C 311.73 2.10 GUC CO05 ROCH H?Z IR D 218.90 2.11 GUC ROCH MT10 H?Z IR D 205.49 2.15 GUC MT10 MT04 H?Z IR C 195.89 2.15 GUC MT04 MT14 H?Z IR D 204.10 2.26 GUC MT14 MT16 H?Z IR C 203.52 2.28 GUC MT16 MT03 H?Z IR C 202.63 2.34 GUC MT03 MT02 H?Z IR C 216.48 2.40 GUC MT02 LMEL H?Z IR C 194.32 2.59 GUC LMEL sta - Station code (FDSN) chan - channel code net - Network code (FDSN) loc - Location code (FDSN) pol - Polarity a/m - Automatic or manual pick azi - Event to station azimuth (in degrees) dist - Event to station distance (in degrees) author - Author of the polarity irsta - International registry station code
